APPLICATION DIMENSIONS
RC
RC
LS
LD
LS
LC
3/4"
2-5/16"
Pre-fabricated distribution cables replace conventional conduit and wire to
distribute branch lighting circuits from a junction box. Optional components to
the lighting interface.

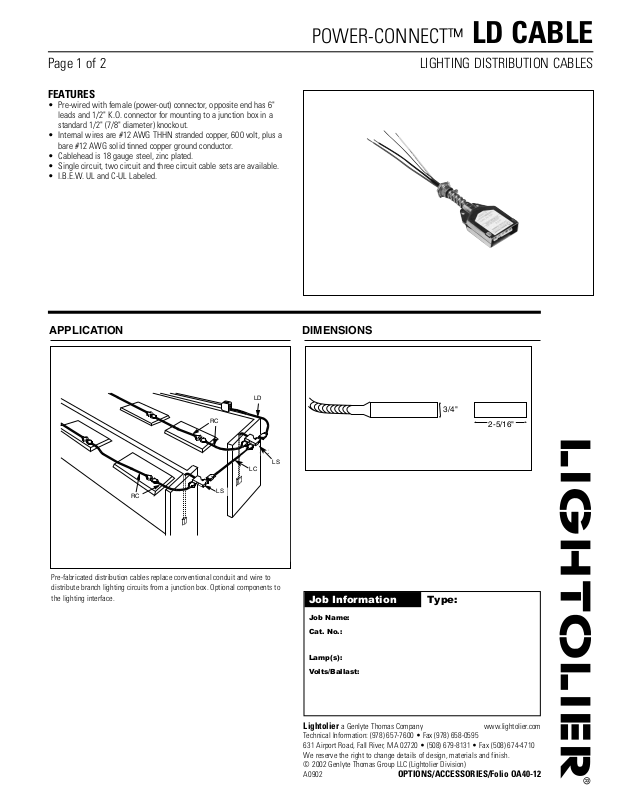

POWER-CONNECT™ LD CABLE
Page 1 of 2 LIGHTING DISTRIBUTION CABLES
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier a Genlyte Thomas Company www.lightolier.com
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902 OPTIONS/ACCESSORIES/Folio OA40-12
FEATURES
• Pre-wired with female (power-out) connector, opposite end has 6"
leads and 1/2" K.O. connector for mounting to a junction box in a
standard 1/2" (7/8" diameter) knockout.
• Internal wires are #12 AWG THHN stranded copper, 600 volt, plus a
bare #12 AWG solid tinned copper ground conductor.
• Cablehead is 18 gauge steel, zinc plated.
• Single circuit, two circuit and three circuit cable sets are available.
• I.B.E.W. UL and C-UL Labeled.
LD
RC
LC
RC
LS
WIRING DIAGRAM WIRING
ORDERING INFORMATION
Explanation of Catalog Number. Example: LP–LD–12–1E–09
SPECIFICATIONS
• I.B.E.W. UL and C-UL Listed.
• Pre-wired with female (power-out) connector, opposite end has 6"
leads and 1/2" K.O. connector for mounting to a
junction box in a standard 1/2" (7/8" diameter) knockout.
• Internal wires are #12 AWG THHN stranded copper, 600 volt, plus a
bare #12 AWG solid tinned copper ground conductor.
• Cablehead is 18 gauge steel, zinc plated.
• Single circuit, two circuit and three circuit cable sets are available.
LDLP
TYPE:
LD = Lighting
Distribution
Cable
LOL
POWER
CONNECT
WIRING
CONFIGURATION:
1E - 1 Circuit
2E - 2 Circuit
3E - 3 Circuit
NE - 2 Cir.,
2 Neutral
VOLTAGE:
12 - 120v
27 - 277v
LENGTH:
Blank - 3 inches
09 - 9'
15 - 15'
20 - 20'
THREE CIRCUIT
TWO CIRCUITSINGLE CIRCUIT
Color Legend
A Black
B Red
C *Blue
G Green
N White
*Exception: In Two Circuit, Two Neutral Application,
wire C will be grey or white with a black stripe.
5
4
3
2
1
POWER OUT
GROUND
B
C
NEUTRAL
A
TWO CIRCUIT, TWO NEUTRAL
–
–
–
–
POWER-CONNECT™ LD CABLE
Page 2 of 2 LIGHTING DISTRIBUTION CABLES
Lightolier a Genlyte Thomas Company www.lightolier.com
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902 OPTIONS/ACCESSORIES/Folio OA40-12
Job Information Type:
GROUND
NEUTRAL
A
5
4
3
2
1
POWER OUT
B
GROUND
NEUTRAL
A
B
GROUND
C
NEUTRAL
A
5
4
3
2
POWER OUT
1
5
4
3
2
POWER OUT
1
