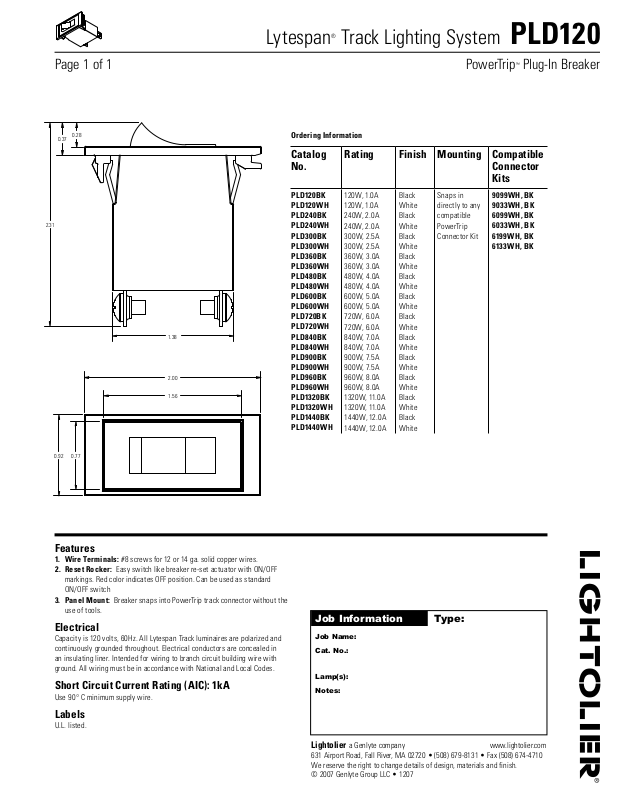

Track Lighting System PLD120
Page 1 of 1 PowerTrip™ Plug-In Breaker
Ordering Information
Catalog
No.
PLD120BK
PLD120WH
PLD240BK
PLD240WH
PLD30 0BK
PLD30 0W H
PLD36 0BK
PLD36 0W H
PLD48 0BK
PLD48 0WH
PLD60 0BK
PLD60 0WH
PLD720BK
PLD720WH
PLD84 0BK
PLD84 0W H
PLD90 0BK
PLD90 0WH
PLD96 0BK
PLD96 0WH
PLD1320BK
PLD1320WH
PLD1440BK
PLD1440WH
Rating Finish Mounting Compatible
Connector
Kits
120W, 1.0A
120W, 1.0A
240W, 2.0A
240W, 2.0A
300W, 2.5A
300W, 2.5A
360W, 3.0A
360W, 3.0A
480W, 4.0A
480W, 4.0A
600W, 5.0A
600W, 5.0A
720W, 6.0A
720W, 6.0A
840W, 7.0A
840W, 7.0A
900W, 7.5A
900W, 7.5A
960W, 8.0A
960W, 8.0A
1320W, 11.0A
1320W, 11.0A
1440W, 12.0A
1440W, 12.0A
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Snaps in
directly to any
compatible
PowerTrip
Connector Kit
9099WH, BK
9033 WH, BK
6099WH, BK
6033WH, BK
6199WH, BK
6133WH, BK
Features
1. Wire Terminals: #8 screws for 12 or 14 ga. solid copper wires.
2. Reset Rocker: Easy switch like breaker re-set actuator with ON/OFF
markings. Red color indicates OFF position. Can be used as standard
ON/OFF switch
3. Panel Mount: Breaker snaps into PowerTrip track connector without the
use of tools.
Electrical
Capacity is 120 volts, 60Hz. All Lytespan Track luminaires are polarized and
continuously grounded throughout. Electrical conductors are concealed in
an insulating liner. Intended for wiring to branch circuit building wire with
ground. All wiring must be in accordance with National and Local Codes.
Short Circuit Current Rating (AIC): 1kA
Use 90° C minimum supply wire.
Labels
U.L. listed.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • 1207
