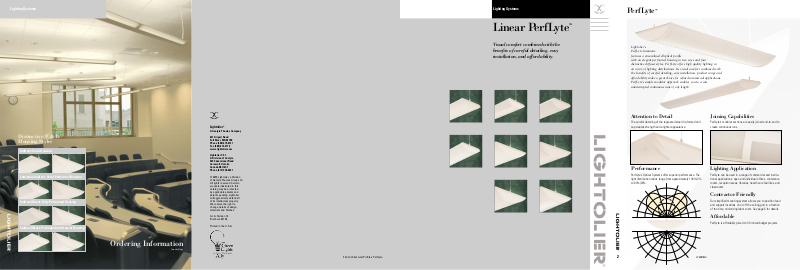

Lightolier PerfLyte User Manual

Lighting Systems

Linear PerfLyte

™

Visual comfort combined with the
benefits of careful detailing, easy
installation, and affordability.

Ordering Information

(under flap)

Lighting Systems

File: Architectural Profiles, PerfLyte

Lightolier

®

A Genlyte Thomas Company

631 Airport Road
Fall River, MA 02720
Phone [phone]
Fax [phone]
www.lightolier.com

Lightolier C.F.I.
A Division of Canlyte
525 Educational Road
Cornwall, Ontario
Canada K6H 6C7
Phone [phone]

© 2000 Lightolier, a Division
of Genlyte Thomas Group LLC.
All rights reserved. Certain
products illustrated in this
catalog may be protected
by applicable patents and
patents pending. Lightolier
will aggressively defend all
of its intellectual property.
We reserve the right to
change details of design,
materials and finishes.

A.I.A. Division 16
Brochure 29128

Printed in the U.S.A.

PerfLyte

™

2

Attention to Detail

The careful detailing of the regressed steel die-formed end
cap creates strength and a lighter appearance.

Performance

PerfLyte’s Optical Systems offer superior performance. The
light distribution ratios range from approximately 100%/0%
to 60%/40%.

Lighting Application

PerfLyte can be used in a range of commercial and institu­tional applications: open and individual offices, conference
rooms, reception areas, libraries, health care facilities, and
classrooms.

Contractor Friendly

Our simplified mounting system allows you to position feed
and support locations on or off the ceiling grid in a fraction
of the time, minimizing labor costs. See page 6 for details.

Affordable

PerfLyte is affordably priced to fit limited budget projects.

Joining Capabilities

PerfLyte’s modular sections are easily joined end-to-end to
create continuous runs.

Lightolier’s
PerfLyte luminaire
features a streamlined elliptical profile
with an elegant perforated housing in two sizes and four
distinctive diffuser styles. PerfLyte offers high quality lighting in
an array of lighting distributions. Its visual comfort combined with
the benefits of careful detailing, easy installation, product range and
affordability make a great choice for refined commercial applications.
PerfLyte’s simple modular approach enables you to create
uninterrupted continuous runs of any length.

Distinctive 9”&13”
Housing Styles

Indirect: Solid Housing

Luminous Indirect: Semi-Perforated Housing

Indirect/Direct: Fully Perforated Housing

Indirect/Direct: Perforated with Louver Housing

LP2B2T84U

400

200

200

800

1000

600

0

180˚ 150˚

90˚

120˚

PerfLyte 9"

3

Style Series Type Lamps Length Ballast Options

2T8 =2 lamp T8 4 = 4 foot U = Uni-Voltage Blank = no options
3T8 =3 lamp T8 8 = 8 foot E = Emergency DS = Dual Switch

12 =12 foot Pack X4 = 4 wire for Dim

D1 = Dim 120v & Switched
D2 = Dim 277v Emg

How to order

LP 1

A

500

250

250

1000

1250

750

0

180˚ 150˚

90˚

120˚

LP1C: 9” Fully Perforated Indirect/Direct

Report No. LRL 200-10F

Report No. LRL 300-1D

LPL1C2T8: 2 lamp T8

75.4% efficiency, 79.9% ∧ 20.1% ∨

For complete performance data please refer
to specification sheets.

Coefficients of Utilization

% Wall Reflectance

50 30 10

0 75 75 75
1 65 63 60
2 57 53 50
3 51 46 41
4 45 39 35
5 40 34 30
6 36 30 26
7 32 26 22
8 29 23 19
9 26 21 17

10 24 18 15

80% Ceiling Cavity Reflectance
20% Floor Cavity Reflectance

Room Cavity Ratio

Application Data

Ceiling Susp. Illum. Max. Lum. W/

Height Dist. (FC) Lum. Ratio Sq Ft

50' x 70' Space

10' 9' 18" 70 166 9.8 1.5
12' 10.5' 24" 57 125 8.6 1.3

12' x 16' Space

8' 9' 18" 68 163 7.8 1.9

8' x 8' x 5' Cubicle R = 50%

12' 10.5' 24" 46 123 9.7 1.3

Reflectances: 80% Ceiling, 50% Wall, 20% Floor
Light Loss Factor = .75 (.88 BF x .85)

500

250

1000

1250

750

0

180˚ 150˚

90˚

120˚

9" (228.6 mm)

2.5" (63.5 mm)

2.5"

9"

2.5"

9"

LP1A: 9" Solid Indirect

Report No. LRL 300-1X

LPL1A2T8: 2 lamp T8

85.7% efficiency, 100% ∧ 0% ∨
LPL1A3T8: 3 lamp T8

84.3% efficiency, 100% ∧ 0% ∨

All performance data shown are for 2 lamp
T8. For other lamping options and complete
performance data please refer to specifica­tion sheets.

Coefficients of Utilization

% Wall Reflectance

50 30 10

0 82 82 82
1 71 68 65
2 62 57 53
3 54 49 44
4 48 42 37
5 42 36 31
6 37 31 26
7 33 27 23
8 30 24 20
9 27 21 17

10 25 19 15

80% Ceiling Cavity Reflectance
20% Floor Cavity Reflectance

Room Cavity Ratio

Application Data

Ceiling Susp. Illum. Max. Lum. W/

Height Dist. (FC) Lum. Ratio Sq Ft

50' x 70' Space

10' 9' 18" 76 179 6.7 1.7
12' 10.5' 24" 62 134 5.6 1.4

12' x 16' Space

8' 9' 18" 72 176 4.9 2.1

8' x 8' x 5' Cubicle R = 50%

12' 10.5' 24" 72 132 6.0 1.4

Reflectances: 80% Ceiling, 50% Wall, 20% Floor
Light Loss Factor = .75 (.88 BF x .85)

LP1B: 9" Semi-Perforated Luminous Indirect

Report No. LRL 200-10H

LPL1B2T8: 2 lamp T8

77.7% efficiency, 91.1% ∧ 8.9% ∨
LPL1B3T8: 3 lamp T8

75.7% efficiency, 92.0% ∧ 8.0% ∨
LPL1B2T5: 2 lamp T5 28W

74.9% efficiency, 91.3% ∧ 8.7% ∨
LPL1B3T5: 3 lamp T5 28W

76.9% efficiency, 93.1% ∧ 6.9% ∨

All performance data shown are for 2 lamp
T8. For other lamping options and complete
performance data please refer to specifica­tion sheets.

Coefficients of Utilization

% Wall Reflectance

50 30 10

0 76 76 76
1 66 63 60
2 57 53 49
3 50 45 41
4 44 39 34
5 39 33 29
6 35 29 25
7 31 26 22
8 28 23 19
9 26 20 16

10 23 18 14

80% Ceiling Cavity Reflectance
20% Floor Cavity Reflectance

Room Cavity Ratio

Luminaire Row Spacing Luminaire Row SpacingLuminaire Row Spacing

400

200

800

1000

600

0

400

200

180˚ 150˚

90˚

60˚

120˚

LP1D: 9”Perforated with Louver Indirect/Direct

LPL1D2T8: 2 lamp T8

78.6% efficiency, 70.4% ∧ 29.6% ∨

For complete performance data please refer
to specification sheets.

Coefficients of Utilization

% Wall Reflectance

50 30 10

0 80 80 80
1 70 67 65
2 62 57 53
3 55 49 45
4 48 42 38
5 43 37 32
6 38 32 28
7 35 29 24
8 31 25 21
9 28 23 19

10 25 20 16

80% Ceiling Cavity Reflectance
20% Floor Cavity Reflectance

Room Cavity Ratio

Application Data

Ceiling Susp. Illum. Max. Lum. W/

Height Dist. (FC) Lum. Ratio Sq Ft

50' x 70' Space

10' 9' 18" 113 155 8.4 1.7
12' 10.5' 24" 62 116 7.4 1.4

12' x 16' Space

8' 9' 18" 111 152 6.9 2.1

8' x 8' x 5' Cubicle R = 50%

12' 10.5' 24" 74 114 8.2 1.4

Reflectances: 80% Ceiling, 50% Wall, 20% Floor
Light Loss Factor = .75 (.88 BF x .85)

2.5"

9"

Luminaire Row Spacing

Application Data

Ceiling Susp. Illum. Max. Lum. W/

Height Dist. (FC) Lum. Ratio Sq Ft

50' x 70' Space

10' 9' 18" 71 135 5.2 1.5
12' 10.5' 24" 58 100 4.3 1.3

12' x 16' Space

8' 9' 18" 67 133 3.8 1.9

8' x 8' x 5' Cubicle R = 50%

12' 10.5' 24" 45 98 4.6 1.3

Reflectances: 80% Ceiling, 50% Wall, 20% Floor
Light Loss Factor = .75 (.88 BF x .85)

PerfLyte 13"

500

250

250

1250

750

1000

0

180˚ 150˚

90˚

120˚

LP2C: 13” Fully Perforated Indirect/Direct

Report No. LRL 1199-5A

LPL2C2T8: 2 lamp T8

80.7% efficiency, 81.7% ∧ 18.3% ∨
LPL2C2BX: 2 lamp Biax

71.4% efficiency, 77.9% ∧ 22.1% ∨

All performance data shown are for 2 lamp
T8. For other lamping options and complete
performance data please refer to specifica­tion sheets.

Coefficients of Utilization

% Wall Reflectance

50 30 10

0 80 80 80
1 70 67 64
2 61 57 53
3 54 49 44
4 48 42 37
5 42 36 32
6 38 32 27
7 34 28 24
8 31 25 21
9 28 22 18

10 25 20 16

80% Ceiling Cavity Reflectance
20% Floor Cavity Reflectance

Room Cavity Ratio

Application Data

Ceiling Susp. Illum. Max. Lum. W/

Height Dist. (FC) Lum. Ratio Sq Ft

50' x 70' Space

10' 9' 18" 113 164 7.9 1.5
12' 10.5' 24" 62 124 7.1 1.2

12' x 16' Space

8' 9' 18" 73 161 6.5 1.8

8' x 8' x 5' Cubicle R = 50%

12' 10.5' 24" 48 125 2.8 1.2

Reflectances: 80% Ceiling, 50% Wall, 20% Floor
Light Loss Factor = .75 (.88 BF x .85)

500

250

1000

1250

750

0

180˚ 150˚

90˚

120˚

13"

Perf

13" (330 mm)

3" (76.2 mm)

LP2A: 13" Solid Indirect

Report No. LRL 300-1Y

LPL2A2T8: 2 lamp T8

87.8% efficiency, 100% ∧ 0% ∨
LPL2A3T8: 3 lamp T8

87.6% efficiency, 100% ∧ 0% ∨

All performance data shown are for 2 lamp
T8. For other lamping options and complete
performance data please refer to specifica­tion sheets.

Coefficients of Utilization

% Wall Reflectance

50 30 10

0 84 84 84
1 73 69 67
2 63 59 54
3 56 50 45
4 49 43 38
5 43 37 32
6 38 32 27
7 34 28 23
8 31 25 20
9 28 22 18

10 25 20 16

80% Ceiling Cavity Reflectance
20% Floor Cavity Reflectance

Room Cavity Ratio

Application Data

Ceiling Susp. Illum. Max. Lum. W/

Height Dist. (FC) Lum. Ratio Sq Ft

50' x 70' Space

10' 9' 18" 78 188 6.4 1.7
12' 10.5' 24" 64 142 5.5 1.4

12' x 16' Space

8' 9' 18" 75 185 4.9 2.1

8' x 8' x 5' Cubicle R = 50%

12' 10.5' 24" 75 140 5.9 1.4

Reflectances: 80% Ceiling, 50% Wall, 20% Floor
Light Loss Factor = .75 (.88 BF x .85)

800

400

1600

1200

2000

0

180˚ 150˚

90˚

120˚

LP2B: 13" Semi-Perforated Luminous Indirect

Report No. LRL 200-10B

LPL2B2T8: 2 lamp T8

81.3% efficiency, 91.3% ∧ 8.7% ∨
LPL2B3T8: 3 lamp T8

85.0% efficiency, 93.1% ∧ 6.9% ∨
LPL2B4T8: 4 lamp T8

80.7% efficiency, 91.9% ∧ 8.1% ∨
LPL2BX: 2 lamp Biax

77.7% efficiency, 93.1% ∧ 6.9% ∨

All performance data shown are for 3 lamp
T8. For other lamping options and complete
performance data please refer to specifica­tion sheets.

Coefficients of Utilization

% Wall Reflectance

50 30 10

0 82 82 82
1 71 68 65
2 62 58 54
3 55 49 44
4 48 42 37
5 43 36 32
6 38 32 27
7 34 28 23
8 30 24 20
9 28 22 18

10 25 19 16

80% Ceiling Cavity Reflectance
20% Floor Cavity Reflectance

Room Cavity Ratio

Luminaire Row Spacing Luminaire Row SpacingLuminaire Row Spacing

500

250

1000

1250

750

0

500

750

250

1000

180˚ 150˚

30˚0˚

90˚

60˚

120˚

LP2D: 13”Perforated with Louver Indirect/Direct

Report No. LRL 200-10K

LPL2D3T8: 3 lamp T8

68.5% efficiency, 59.8% ∧ 40.2% ∨

For complete performance data please refer
to specification sheets.

Coefficients of Utilization

% Wall Reflectance

50 30 10

0 72 72 72
1 63 60 58
2 56 52 48
3 49 45 41
4 44 39 35
5 39 34 30
6 35 30 26
7 32 27 23
8 29 24 20
9 26 21 18

10 24 19 16

80% Ceiling Cavity Reflectance
20% Floor Cavity Reflectance

Room Cavity Ratio

Application Data

Ceiling Susp. Illum. Max. Lum. W/

Height Dist. (FC) Lum. Ratio Sq Ft

50' x 70' Space

10' 9' 18" 102 175 8.3 2.4
12' 10.5' 24" 83 132 7.4 2.0

12' x 16' Space

8' 9' 18" 99 171 6.9 3.0

8' x 8' x 5' Cubicle R = 50%

12' 10.5' 24" 66 129 8.5 2.0

Reflectances: 80% Ceiling, 50% Wall, 20% Floor
Light Loss Factor = .75 (.88 BF x .85)

Luminaire Row Spacing

Application Data

Ceiling Susp. Illum. Max. Lum. W/

Height Dist. (FC) Lum. Ratio Sq Ft

50' x 70' Space

10' 9' 18" 76 215 5.4 2.4
12' 10.5' 24" 94 159 4.6 2.0

12' x 16' Space

8' 9' 18" 111 212 4.2 3.0

8' x 8' x 5' Cubicle R = 50%

12' 10.5' 24" 74 156 4.9 2.0

Reflectances: 80% Ceiling, 50% Wall, 20% Floor
Light Loss Factor = .75 (.88 BF x .85)

9" Solid Indirect

Style Series Type Lamps Length Ballast Options

2T8 =2 lamp T8 4 = 4 foot U = Uni-Voltage Blank = no options
3T8 =3 lamp T8 8 = 8 foot E = Emergency DS = Dual Switch
2T5 =2 lamp T5 12 =12foot Pack X4 = 4 wire forDim
3T5 =3 lamp T5 D1 = Dim 120v & Switched
2HO =2 lamp T5 D2 = Dim 277v Emg
3HO =3 lamp T5

LP

1

B

9" Semi Perforated

Style Series Type Lamps Length Ballast Options

4 = 4 foot U = Uni-Voltage Blank = no options
8 = 8 foot E = Emergency DS = Dual Switch

12 =12 foot Pack X4 = 4 wire forDim

D1 = Dim 120v & Switched
D2 = Dim 277v Emg

LP 1 C 2TB

9" Fully Perforated

Style Series Type Lamps Length Ballast Options

4 = 4 foot U = Uni-Voltage Blank = no options
8 = 8 foot E = Emergency DS = Dual Switch

12 =12 foot Pack X4 = 4 wire forDim

D1 = Dim 120v & Switched
D2 = Dim 277v Emg

LP 1 D 2T8

9" Perforated with Louver

Style Series Type Lamps Length Ballast Options

2T8 =2 lamp T8 4 = 4 foot U = Uni-Voltage Blank = no options
3T8 =3 lamp T8 8 = 8 foot E = Emergency DS = Dual Switch

Pack X4 = 4 wire for Dim
D1 = Dim 120v & Switched
D2 = Dim 277v Emg

13" Solid Indirect

Style Series Type Lamps Length Ballast Options

2T8 =2 lamp T8 4 = 4 foot U = Uni-Voltage Blank = no options
3T8 =3 lamp T8 8 = 8 foot E = Emergency DS = Dual Switch
4T8 = 4 lamp T8 Pack X4 = 4 wire forDim
2BX= 2 lamp Biax D1 = Dim 120v & Switched

D2 = Dim 277v Emg

13" Semi Perforated

Style Series Type Lamps Length Ballast Options

2T8 =2 lamp T8 4 = 4 foot U = Uni-Voltage Blank = no options
2BX= 2 lamp 8 = 8 foot E = Emergency DS = Dual Switch

Biax Pack X4 = 4 wire forDim

D1 = Dim 120v & Switched
D2 = Dim 277v Emg

13" Fully Perforated

Style Series Type Lamps Length Ballast Options

4 = 4 foot U = Uni-Voltage Blank = no options
8 = 8 foot E = Emergency DS = Dual Switch

Pack X4 = 4 wire forDim
D1 = Dim 120v & Switched
D2 = Dim 277v Emg

13" Perforated with Louver

Easy to install

Mountings

■

1 Install End Caps

■

2 Suspend Cables

■

3 Hang First Fixture

■

4 Connect Power

■

5 Join Fixtures

■

6 Install Joiner Cover

Specifications

Ordering Information

Individual Fixtures Continuous Rows Pendant

1. Determine run length.

2. Order appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE/JOINER ASSEMBLY per MODULE minus
one per run.

5. For runs that exceed amperage limits, order the appropriate
number of CABLE/CORD FEEDS.

PerfLyte 9"
Cable Assembly – aircraft
cable adjustable up to 36"

Single Cable: LP1C36
Single Cable and Cord:
LP1CC36
Single Cable and 4 Wire Cord:
LP1CC36X4

PerfLyte 9"
Power Feed End Set

Straight Cord: LP1EC36
Emg/2cir/Dim: LP1EC36X4

4 5 6

PerfLyte 13"
Cable Assembly – aircraft
cable adjustable up to 36"

Single Cable: LP2C36
Single Cable and Cord:
LP2CC36
Single Cable and 4 Wire Cord:
LP2CC36X4

PerfLyte 13"
Power Feed End Set

Straight Cord: LP1EC36
Emg/2cir/Dim: LP1EC36X4

Ceiling Grid Kit: CGK

Ceiling Grid Kit

Housing: 9" luminaire: 18 gauge perforated steel with 41% open

hole pattern. Holes are 1/16" diameter on 3/32" centers. 13"
luminaire: 18 gauge perforated steel with 51% open hole pattern.
Holes are 1/8" diameter on 5/32" staggered centers.

Lamping: Two, three or four T8 fluorescent lamps; or two or three
T5 fluorescent lamps, as specified.

Reflectors: Semi-Perforated. Die-formed specular aluminum.
All others die-formed CRS painted high reflectance white

Diffuser: Opal acrylic.
Louver: Straight blade louver finished to match housing.
Electrical: Ballast is universal voltage, <10% THD, .88 ballast

factor, instant start, 18 gauge wire. Color-coded quick connectors
allow ease of connection for joiner modules.

Mountings: Cable suspension (not shown) — 4 1/2" diameter
flat canopy finished white enamel, 1/16" diameter stainless steel
aircraft cable adjustable up to 36". Overlap connector to provide
46” perforated and 2” solid sections Continguously without
presence of hairline connections.

Finish: Powder coated baked white enamel. Custom colors avail­able, consult factory.

Options and Accessories: Dual Switching: Order the DS option for
separate row switching. 4 Wire: Order X4 modules for entire run
when using dimming and/or switched emergency battery packs.

Emergency circuiting; special circuiting – consult factory.

Labels: UL, cUL and IBEW.

PerfLyte 9" PerfLyte 13"

1. Order number of MODULES required.

2. Order one POWER FEED END SET per module.

Perf

Perforated

3.4"

Perf Perf

3"

13"

3"

13"

3"

Perforated

13"

3.2"

3"

4.2"

Perf

Perf Perf

Lightolier Lighting Systems are modular lighting systems that offer a wide
selection of geometric shapes, architectural profiles, scales and finishes.

Profiles

Architectural

Round

Square

Recessed

Cove

Accent

Custom

Lightolier Lighting Systems

LP 2

A

LP 2

B

LP 2

C

LP 2

C

3T8

9"

2.5"
