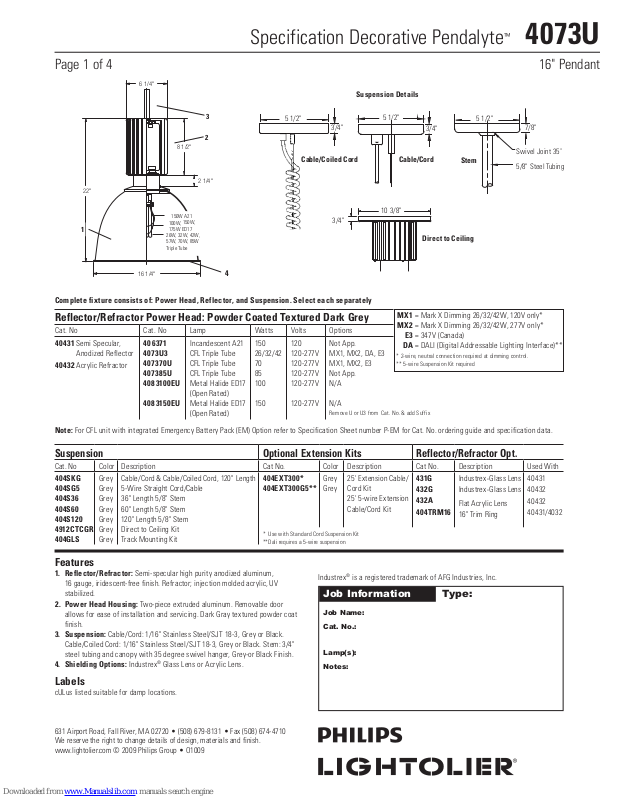

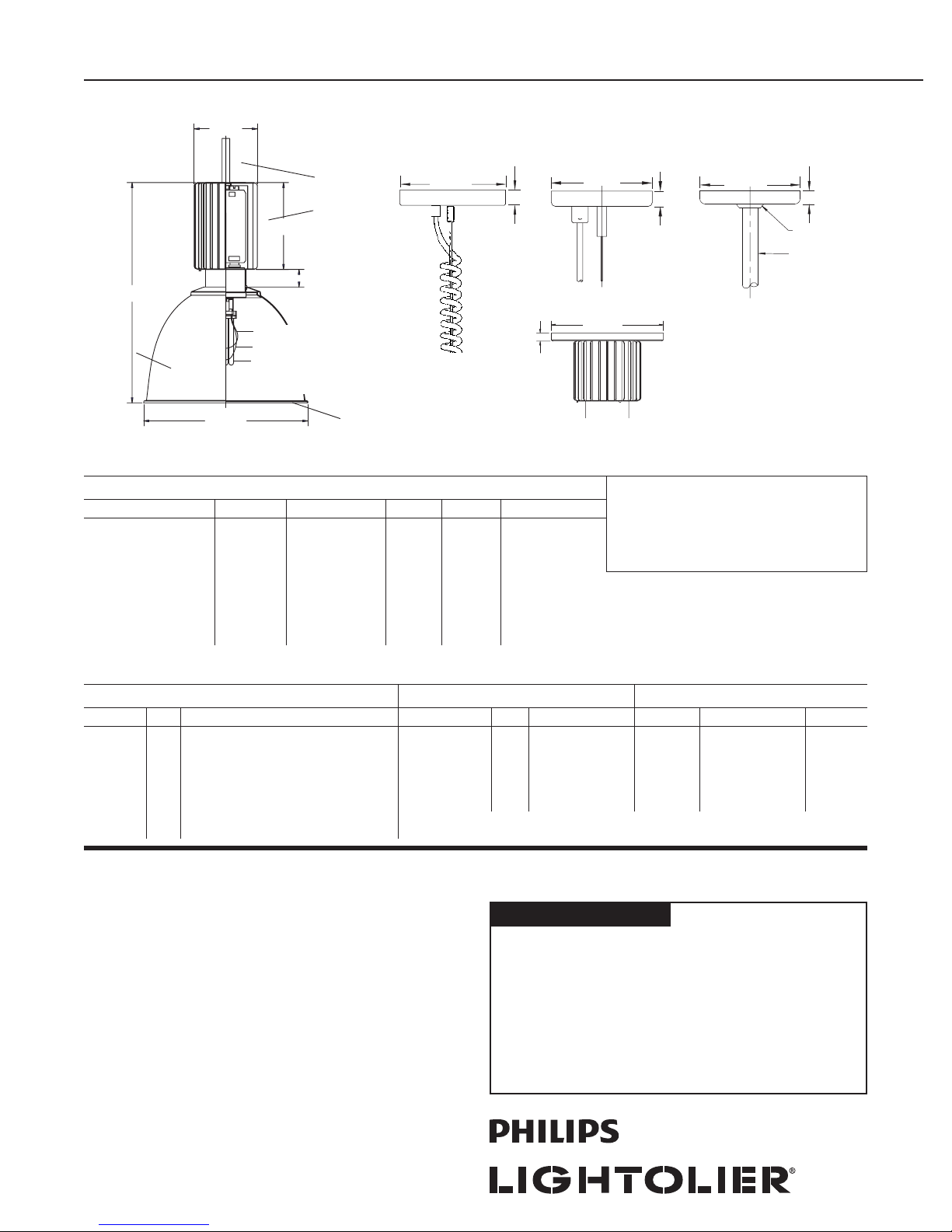

Specification Decorative Pendalyte
150W A21
100W, 150W
175W ED17
26W, 32W, 42W
TRIPLE TUBE
16 in Pendant
™
4073U
Page 1 of 4 16" Pendant
6 1/4"
Suspension Details
3
2
8 1/2"
150W A21
150W,
100W,
175W ED17
2 1/4"
4
22"
1
16 1/4"
26W, 32W, 42W,
57W, 70W, 85W
Triple Tube
5 1/2"
3/4"
Cable/Coiled Cord
3/4"
5 1/2"
10 3/8"
Cable/Cord
Direct to Ceiling
3/4"
Stem
5 1/2"
7/8"
Swivel Joint 35˚
5/8" Steel Tubing
Complete fixture consists of: Power Head, Reflector, and Suspension. Select each separately
Reflector/Refractor Power Head: Powder Coated Textured Dark Grey
Cat. No Cat. No Lamp Watts Volts Options
40431 Semi Specular,
Anodized Reflector
4043 2 Acrylic Refractor
406371
4073U3
407370U
407385U
408310 0EU
Incandescent A21
CFL Triple Tube
CFL Triple Tube
CFL Triple Tube
Metal Halide ED17
150
26/32/42
70
85
100
120
120-277V
120-277V
120-277V
120-277V
Not App.
MX1, MX2, DA, E3
MX1, MX2, E3
Not App.
N/A
MX1 = Mark X Dimming 26/32/42W, 120V only*
MX2 = Mark X Dimming 26/32/42W, 277V only*
E3 = 347V (Canada)
DA = DALI (Digital Addressable Lighting Interface)**
* 2-wir e, neutral c onnection required a t dimming con trol.
** 5- wire Suspen sion Kit req uired
(Open Rated)
4083150EU
Metal Halide ED17
(Open Rated)
150
120-277V
N/A
Remov e U or U3 fr om Cat. No. & add Suff ix
Note: For CFL unit with integrated Emergency Battery Pack (EM) Option refer to Specification Sheet number P-EM for Cat. No. ordering guide and specification data.
Suspension Optional Extension Kits Reflector/Refractor Opt.
Cat. No Color Description Cat No. Color Description Cat No. Description Used With
404SKG
404SG5
404S36
404S60
404S120
4912CTCGR
404GLS
Grey
Cable/Cord & Cable/Coiled Cord, 120" Length
Grey
5-Wire Straight Cord/Cable
Grey
36" Length 5/8" Stem
Grey
60" Length 5/8" Stem
Grey
120" Length 5/8" Stem
Grey
Direct to Ceiling Kit
Grey
Track Mounting Kit
404EXT30 0*
404EXT30 0G5**
Grey
25' Extension Cable/
Grey
Cord Kit
25' 5-wire Extension
Cable/Cord Kit
* Use with Stan dard Cord S uspension K it
**Dali r equires a 5 -wire susp ension
431G
432G
432A
404TRM16
®
Industrex
Glass Lens
®
Industrex
Glass Lens
Flat Acrylic Lens
16" Trim Ring
40431
40432
40432
40431/4032
Features
1. Reflector/Refractor: Semi-specular high purity anodized aluminum,
16 gauge, iridescent-free finish. Refractor; injection molded acr ylic, UV
stabilized.
2. Power Head Housing: Two-piece extruded aluminum. Removable door
allows for ease of installation and servicing. Dark Gray textured powder coat
finish.
3. Suspension: Cable/Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black.
Cable/Coiled Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black. Stem: 3/4"
steel tubing and canopy with 35 degree swivel hanger, Grey-or Black Finish.
4. Shielding Options: Industrex® Glass Lens or Acrylic Lens.
Industrex® is a registered trademark of AFG Industries, Inc.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Labels
cULus listed suitable for damp locations.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • O1009
Specification Decorative Pendalyte
™
4073U
Page 2 of 4 16" Pendant
Lamping (by others)
Compact Fluorescent:
General Electric Osram/Sylvania Philips
(1) 26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F26TBX/*/A/4P CF26DT/E/IN/* PL-T26W/*/4P
(1) 32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F32TBX/*/A/4P CF32DT/E/IN/* PL-T32W/*/4P
(1) 42W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F42TBX/*/A/4P CF42DT/E/IN/* PL-T42W/*/4P
(1) 70W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F70QBX/*/A/4P/EOL
(1) 85W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
N/A N/A PL-H85W/*/4P
* Manufacturers' color temperature designation.
Metal Halide:
General Electric Osram/Sylvania Philips
(1) 100W Ceramic Metal Halide ED17 Lamp
MXR100/C/U/MED/O MCP100/C/U/MED/* MCH100/C/UMP*
(1) 150W Ceramic Metal Halide ED17 Lamp
MXR150/C/U/MED/O MCP150/C/U/MED/* MCH150/C/UMP*
* Manufacturers' color temperature designation.
CF70DT/E/IN/* N/A
Electrical
Lampholders:
Compact Fluorescent:
4-pin, 26/32 watt base: GX24q-3; 42 watt base: GX24q- 4;
70 watt base: GX24q-6; 85 wat t base: 2G8
Incandescent:
Medium Base, Porcelain, Nickel Plated Screw Shell
Ballast: Fluorescent: Electronic
26 Watt 32 Watt 42 Watt
Voltage 120 277 120 277 120 277
Total Input Watts 26 26 36 36 47 47
Max. Line Current (Amps) .22 .09 .30 .09 .39 .17
70 Watt 85 Watt
Voltage 120 277 120 277
Total Input Watts 73 72 98 98
Max. Line Current (Amps) .61 .27 .82 .36
Power Factor >.98, Ballast Factor .98, THD <10%
Minimum Starting Temperature: 0°F
Metal Halide: Electronic, High Power Factor
100 Watt ANSI
Code M-90
Voltage 120 277 120 277
Total Input Watts 110 110 167 167
Max. Line Current (Amps) 0.94 0.42 1.4 0.6
Minimum starting Temperature: +5°F
150 Watt ANSI
Code M-102
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • O1009
