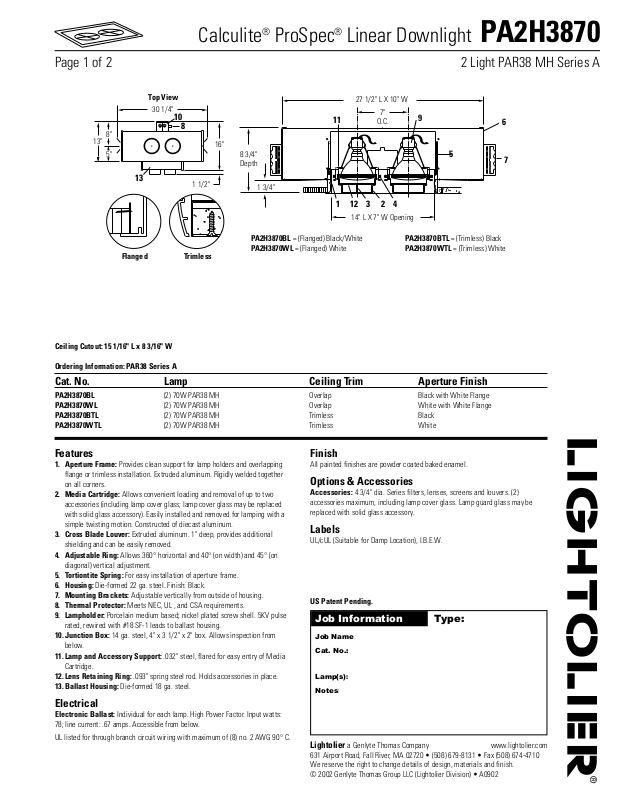

Calculite®ProSpec
®
Linear Downlight PA2H3870
Page 1 of 2 2 Light PAR38 MH Series A
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Features
1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Media Cartridge: Allows convenient loading and removal of up to two
accessories (including lamp cover glass; lamp cover glass may be replaced
with solid glass accessory). Easily installed and removed for lamping with a
simple twisting motion. Constructed of diecast aluminum.
3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional
shielding and can be easily removed.
4. Adjustable Ring: Allows 360° horizontal and 40° (on width) and 45° (on
diagonal) vertical adjustment.
5. Tortiontite Spring: For easy installation of aperture frame.
6. Housing: Die-formed 22 ga. steel. Finish: Black.
7. Mounting Brackets: Adjustable vertically from outside of housing.
8. Thermal Protector: Meets NEC, UL , and CSA requirements.
9. Lampholder: Porcelain medium based; nickel plated screw shell. 5KV pulse
rated, rewired with #18 SF-1 leads to ballast housing.
10. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from
below.
11. Lamp and Accessory Support: .032" steel, flared for easy entry of Media
Cartridge.
12. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.
13. Ballast Housing: Die-formed 18 ga. steel.
Electrical
Electronic Ballast: Individual for each lamp. High Power Factor. Input watts:
78; line current: .67 amps. Accessible from below.
UL listed for through branch circuit wiring with maximum of (8) no. 2 AWG 90° C.
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 4 3/4" dia. Series filters, lenses, screens and louvers. (2)
accessories maximum, including lamp cover glass. Lamp guard glass may be
replaced with solid glass accessory.
Labels
UL/cUL (Suitable for Damp Location), I.B.E.W.
US Patent Pending.
PA2H3870BL = (Flanged) Black/White
PA2H3870WL = (Flanged) White
PA2H3870BTL = (Trimless) Black
PA2H3870WTL = (Trimless) White
