Ceiling Cutout: 7 3/16" L X 7 3/16" W
Ordering Information: PAR 30 MH Series A
Cat. No. Lamp Ceiling Trim Aperture Finish
PA1H3070BL (1) 70W PAR 30 MH Overlap Black with White Flange PA1H3070WL (1) 70W PAR 30 MH Overlap White with White Flange PA1H3070BTL (1) 70W PAR 30 MH Trimless Black PA1H3070WTL (1) 70W PAR 30 MH Trimless White
10
11
14 7/8"
8"
13"
9"
12
13
1 3/4"
8 3/4"
Depth
12 3/8" L X 10" W
6" L X 6" W Opening
7 3/16" L X 7 3/16" W Cutout
PA1H3070BL = (Flanged) Black/White PA1H3070WL = (Flanged) White
PA1H3070BTL = (Trimless) Black PA1H3070WTL = (Trimless) White
Flanged
Trimless

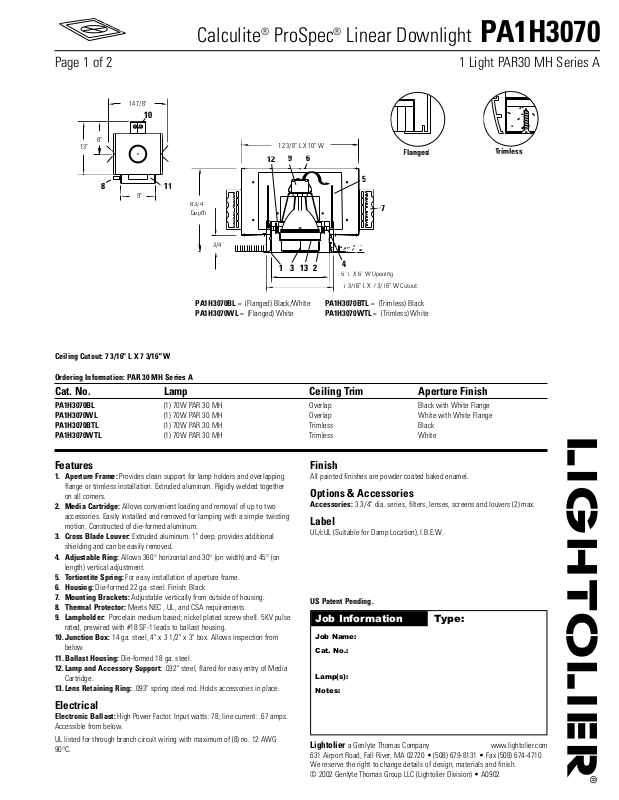

Calculite®ProSpec
®
Linear Downlight PA1H3070
Page 1 of 2 1 Light PAR30 MH Series A
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. © 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Features
1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together on all corners.
2. Media Cartridge: Allows convenient loading and removal of up to two accessories. Easily installed and removed for lamping with a simple twisting motion. Constructed of die-formed aluminum.
3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional shielding and can be easily removed.
4. Adjustable Ring: Allows 360° horizontal and 30° (on width) and 45° (on length) vertical adjustment.
5. Tortiontite Spring: For easy installation of aperture frame.
6. Housing: Die-formed 22 ga. steel. Finish: Black
7. Mounting Brackets: Adjustable vertically from outside of housing.
8. Thermal Protector: Meets NEC , UL, and CSA requirements.
9. Lampholder: Porcelain medium based; nickel plated screw shell. 5KV pulse
rated, prewired with #18 SF-1 leads to ballast housing.
10. Junction Box: 14 ga. steel, 4" x 3 1/2" x 3" box. Allows inspection from below.
11. Ballast Housing: Die-formed 18 ga. steel.
12. Lamp and Accessory Support: .032" steel, flared for easy entry of Media
Cartridge.
13. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.
Electrical
Electronic Ballast: High Power Factor. Input watts: 78; line current: .67 amps.
Accessible from below.
UL listed for through branch circuit wiring with maximum of (8) no. 12 AWG 90°C.
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 3 3/4" dia. series, filters, lenses, screens and louvers (2) max.
Label
UL/cUL (Suitable for Damp Location), I.B.E.W.
US Patent Pending.
(FC) is initial footcandles at center of beam. Beam length (L) and beam width (W) are to where the candlepower is reduced to 50% of center beam candlepower.
CBCP is center beam candlepower. (C) is distance to the center of the beam.
Performance data shown is based on bare lamp photometrics of MasterColor
lamps by Philips Lighting. Contact lamp manufac­turers for availability and performance.
Accent Lighting Performance Data
0° Aiming Angle 30° Aiming angle 30° Aiming Angle 45° Aiming Angle
DFCLW
DCFCLW DCFCLW DCFCLW
Beam Spread Rated 50% Max CP CBCP Life-Hrs
9000
9000
68000
10000
10°
Lamp
70W PAR30
MC/MH)
FL
70W PAR30
MC/MH)
SP
70w
15’ 302 2.6’ 2.6’
20’ 170 3.5’ 3.5’
25’ 109 4.4’ 4.4’
30’ 76 5.2’ 5.2’
8’ 8.0’ 376 2.8’ 2.0’
12’ 12.0’ 167 4.2’ 3.0’
18’ 16.0’ 74 5.6’ 4.0’
20’ 20.0’ 60 7.1’ 4.9’
7’ 204 5.1’ 5.1’
10’ 100 7.3’ 7.3’
13’ 59 9.5’ 9.5’
16’ 39 11.6’ 11.6’
6’ 3.5’ 180 6.1’ 5.0’
9’ 5.2’ 80 9.1’ 7.6’
12’ 6.9’ 45 12.2’ 10.1’
15’ 8.7’ 29 15.2’ 12.6’
4’ 4.0’ 221 6.7’ 4.1’
6’ 6.0’ 98 10.1’ 6.2’
8’ 8.0’ 55 13.4’ 8.2’
10’ 10.0’ 35 16.8’ 10.3’
2’ 3.5’ 313 9.7’ 2.9’
3’ 5.2’ 139 14.5’ 4.4’
4’ 6.9’ 78 19.3’ 5.8’
5’ 8.7’ 50 24.2’ 7.3’
10’ 5.8’ 442 2.3’ 2.0’
15’ 8.7’ 196 3.5’ 3.0’
20’ 11.5’ 110 4.7’ 4.0’
25' 14.4’ 71 5.8’ 5.1’
5’ 8.7’ 340 3.6’ 1.7’
8’ 13.9’ 133 5.7’ 2.9’
11’ 19.1’ 70 7.9’ 3.8’
14’ 24.2’ 43 10.0’ 4.9’
40°
Calculite®ProSpec
®
Linear Downlight PA1H3070
Page 2 of 2 1 Light PAR30 MH Series A
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. © 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
