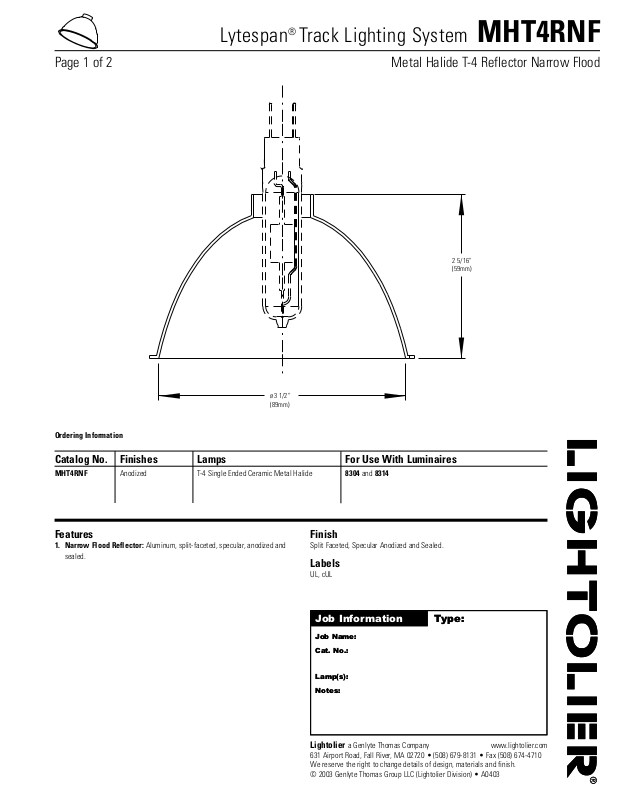

Lytespan
®
Track Lighting System MHT4RNF
Page 1 of 2 Metal Halide T-4 Reflector Narrow Flood
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Ordering Information
Catalog No. Finishes Lamps For Use With Luminaires
MHT4RNF Anodized T-4 Single Ended Ceramic Metal Halide 8304 and 8314
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Features
1. Narrow Flood Reflector: Aluminum, split-faceted, specular, anodized and
sealed.
Finish
Split Faceted, Specular Anodized and Sealed.
Labels
UL, cUL
2 5/16"
(59mm)
ø 3 1/2"
(89mm)
Page 2
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2003 Genlyte Thomas Group LLC (Lightolier Division) • A0403
Job Information Type:
Lytespan
®
Track Lighting System MHT4RNF
Page 2 of 2 Metal Halide T-4 Reflector Narrow Flood
AIMING ANGLE: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam Length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle power drops
to 50% of the maximum. FC are the initial footcandles at the
center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for
availability and performance.
6’ 248 1.9’ 1.9’
8’ 140 2.5’ 2.5’
10’ 90 3.2’ 3.2’
12’ 62 3.8’ 3.8’
AIMING ANGLE: 0° Horizontal Aiming 30° Horizontal Aiming 30° Vertical Aiming 45° Vertical Aiming
DFC L W
DC FC L W
DC FC L W DC FC L W
Beam Spread
CBCP
Rated
(To 50% CBCP) Life (Hrs.)
6’ 3.5’ 162 2.6’ 2.2’
8’ 4.6’ 91 3.4’ 2.9’
10’ 5.8’ 58 4.3’ 3.7’
12’ 6.9’ 40 5.1’ 4.4’
3’ 5.2’ 124 4.1’ 1.9’
4’ 6.9’ 70 5.5’ 2.5’
5’ 8.7’ 45 6.9’ 3.2’
6’ 10.4’ 31 8.2’ 3.8’
3’ 3.0’ 352 1.9’ 1.3’
4’ 4.0’ 198 2.6’ 1.8’
5’ 5.0’ 127 3.2’ 2.2’
6’ 6.0’ 88 3.9’ 2.7’
20W T4 CMH 8,959 7,500
to
18° X 18° 9,000
6’ 395 2.2’ 2.2’
8’ 222 3.0’ 3.0’
10’ 142 3.7’ 3.7’
12’ 99 4.4’ 4.4’
DFC L W
DC FC L W
DC FC L W DC FC L W
Beam Spread
CBCP
Rated
(To 50% CBCP) Life (Hrs.)
6’ 3.5’ 256 3.0’ 2.6’
8’ 4.6’ 144 4.0’ 3.4’
10’ 5.8’ 92 5.0’ 4.3’
12’ 6.9’ 64 6.0’ 5.1’
3’ 5.2’ 197 5.0’ 2.2’
4’ 6.9’ 111 6.6’ 3.0’
5’ 8.7’ 71 8.3’ 3.7’
6’ 10.4’ 49 9.9’ 4.4’
3’ 3.0’ 558 2.3’ 1.6’
4’ 4.0’ 314 3.1’ 2.1’
5’ 5.0’ 201 3.8’ 2.6’
6’ 6.0’ 140 4.6’ 3.1’
39W T4 CMH 14,208 9,000
to
21° X 21° 10,000
6’ 631 2.4’ 2.4’
8’ 355 3.3’ 3.3’
10’ 227 4.1’ 4.1’
12’ 158 4.9’ 4.9’
DFC L W
DC FC L W
DC FC L W DC FC L W
Beam Spread
CBCP
Rated
(To 50% CBCP) Life (Hrs.)
6’ 3.5’ 410 3.3’ 2.8’
8’ 4.6’ 230 4.4’ 3.8’
10’ 5.8’ 147 5.5’ 4.7’
12’ 6.9’ 102 6.6’ 5.6’
3’ 5.2’ 315 5.6’ 2.4’
4’ 6.9’ 177 7.4’ 3.3’
5’ 8.7’ 114 9.3’ 4.1’
6’ 10.4’ 79 11.2’ 4.9’
3’ 3.0’ 802 2.5’ 1.7’
4’ 4.0’ 502 3.4’ 2.3’
5’ 5.0’ 321 4.2’ 2.9’
6’ 6.0’ 223 5.1’ 3.5’
70W T4 CMH 22,703 6,000
to
23° X 23° 9,000
