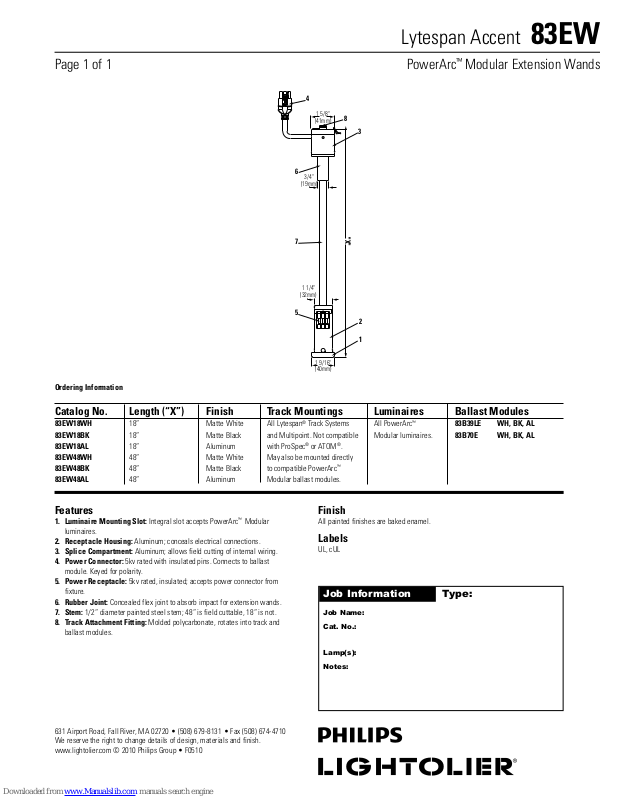

Lightolier Lytespan Accent 83EW Specification

Lytespan Accent 83EW

Page 1 of 1 PowerArc™ Modular Extension Wands

4

1 5/8"

8

(41mm)

3

6

3/4"

(19mm)

1 9/16"
(40mm)

"X"

2

1

Ordering Information

7

5

1 1/4"

(32mm)

Catalog No. Length (“X”) Finish Track Mountings Luminaires Ballast Modules

83EW18WH 18” Matte White All Lytespan® Track Systems All PowerArc
83EW18BK 18” Matte Black and Multipoint. Not compatible Modular luminaires. 83B70E WH, BK, AL
83EW18AL 18” Aluminum with ProSpec® or ATOM®.
83EW48WH 48” Matte White May also be mounted directly
83EW48BK 48” Matte Black to compatible PowerArc™
83EW48AL 48” Aluminum Modular ballast modules.

Features

1. Luminaire Mounting Slot: Integral slot accepts PowerArc™ Modular

luminaires.

2. Receptacle Housing: Aluminum; conceals electrical connections.

3. Splice Compartment: Aluminum; allows field cutting of internal wiring.

4. Power Connector: 5kv rated with insulated pins. Connects to ballast

module. Keyed for polarity.

5. Power Receptacle: 5kv rated, insulated; accepts power connector from
fixture.

6. Rubber Joint: Concealed flex joint to absorb impact for extension wands.

7. Stem: 1/2” diameter painted steel stem; 48” is field cuttable, 18” is not.

8. Track Attachment Fitting: Molded polycarbonate, rotates into track and

ballast modules.

Finish

All painted finishes are baked enamel.

Labels

UL, cUL

Job Information Type:

Job Name:

Cat. No.:

™

83B39LE WH, BK, AL

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • F0510

Lamp(s):

Notes:
