Lightolier Lytespan 9175N, Lytespan 9175NWH, Lytespan 9175NBK, Lytespan 9175NAL Specification

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • B0706

Lytespan

®

Track Lighting 9175N

Page 1 of 2 MiniForms™ Shallow Ring MR16

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

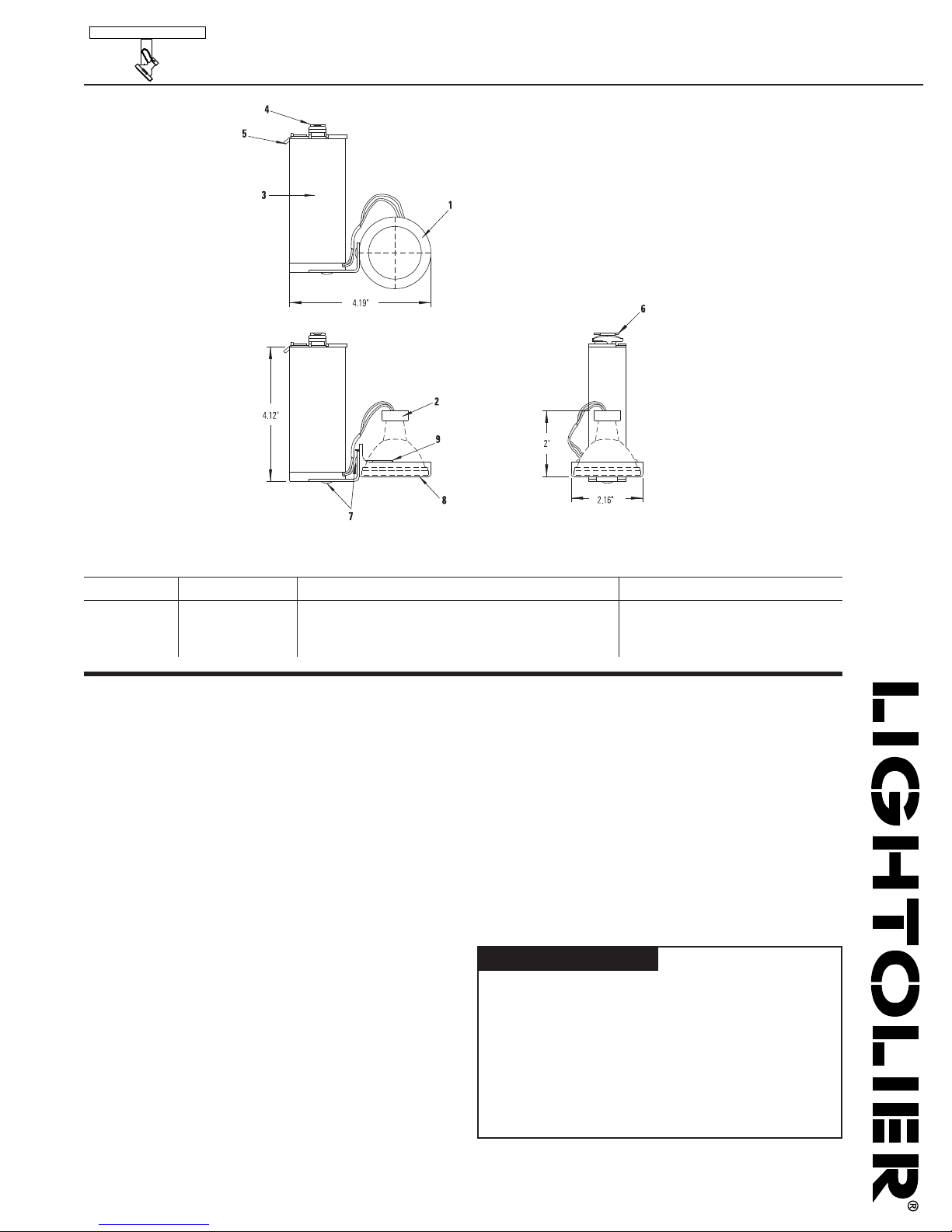

Features

1. Lamp Bracket: Drawn Steel with lamp retaining spring.

2. Socket: Bi-pin base ceramic socket wired with No. 18 standard Teflon leads.

3. Transformer: Electronic low voltage transformer with integral short circuit

and thermal protection for increased reliability; housed in aluminum.

4. Track Attachment Fitting: Molded polycarbonate, rotates into track and
locks on with push tab; integral polarity key guard.

5. Push Tab: Locks and detaches unit from track.

6. Brass Contact: Extends up for connection to second circuit when used with

Advent®Lytespan track.

7. Tension Pivot Mounts: Steel. Allows for 180˚ horizontal rotation and 180˚
vertical rotation.

8. Lamp Guard: Tempered glass.

9. Spring: Steel springs hold lamp in place

Electrical/dimming

Dimming controls: Use only dimmers specifically designed for use with

electronic transformers, like Lightolier Sunrise™ and Neptune Momentum QE™
series. Low voltage fixtures may produce audible sound when used with
dimmers, which may be objectionable in acoustically critical areas.

Labels

UL

Ordering Information

Catalog No. Finishes Track Mountings Lamps

9175NWH Matte White All Lytespan Track Systems MR16
9175NBK Matte Black 75W Max.
9175NAL Matte Aluminum

L

ighting Data

L Beam length
W Beam width
C Distance to center of beam
D Distance
A Aiming angle
FC Footcandles

L and W are the outer points where

the candlepower drops to 50% of the
m

aximum. FC are the initial foot-

c

andles at the center of the beam.

FC

L

C

D

A

FC

D

L

C

A

W

L

W

FC

D

A

iming Angle: 0º 30º 45º or 60º Horizontal 30º 45º or 60º Vertical

1850 4000

50 W MR16 (T- H)

FL ( EXN) 40 º

1150 4000

50 W MR16 (T- H)

WF L (F NV ) 55º

12000 4000

75 W MR16 (T- H)

NSP (E YF) 14º

4900 4000

75 W MR16 (T- H)

NFL (EYJ) 25º

2100 4000

75 W MR16 (T- H)

FL (E YC) 4 2º

3400 4000

50 W MR16 (T- H)

NFL (EXZ) 27º

525 4000

20 W MR16 (T- H)

FL (B AB) 40º

2' 131 1.5' 1.5'
3' 5 8 2.2' 2.2'
4' 3 3 2.9' 2.9'
5' 2 1 3.6' 3.6'

13100 3500

42 W MR16 (T- H)

VNSP (EZY) 9º

3900 4000

35 W MR16 (T- H)

SP (F RA) 20º

8700 4000

35W MR16 (T-H)

NSP (FRB) 12º

3

600 2000

20 W MR16 (T- H)

NSP (ESX) 13º

8200 3000

2

0W MR16 (T-H)

VNSP (EZX) 7º

7' 187 0.9' 0.9'
10' 82 1.2' 1.2'
13' 49 1.6' 1.6'
16' 32 2.0' 2.0'

DFCLW D CFCL W D CFCL W D CFCLW

B

eam Spread

5

0% Max CP

B

eam Center

C

.P. Candelas

R

ated

L

ife-Hrs

6' 3.5' 148 1.0' 0.8'

9' 5.2' 66 1.5' 1.3'
12' 6.9' 37 2.0' 1.7'
15' 8.7' 24 2.4' 2.1'

4' 4.0' 181 1.0' 0.7'
6' 6.0' 81 1.5' 1.0'
8' 8.0' 45 2.0' 1.4'

10' 10.0' 29 2.5' 1.7'

2' 3.5' 256 1.0' 0.5'
3' 5.2' 114 1.5 0.7'
4' 6.9' 64 2.0' 1.0'
5' 8.7' 41 2.5' 1.2'

6' 100 1.4' 1.4'

8' 5 8 1.8' 1.8'
10' 38 2.3' 2.3'
12' 25 2.7' 2.7'

5' 2.8' 94 1.5' 1.3'
7' 4.0' 48 2.1' 1.8'
9' 5.2' 29 2.7' 2.4'

11' 6.4' 19 3.4' 2.9'

3' 3.0' 141 1.4' 1.0'
5' 5.0' 51 2.3' 1.6'
7' 7.0' 28 3.2' 2.3'
9' 9.0' 18 4.2' 2.9'

2' 3.5' 113 1.9' 0.9'
3' 5.2' 50 2.8' 1.4'
4' 6.9' 28 3.8' 1.8'
5' 8.7' 18 4.7' 2.3'

2' 1.2' 85 2.0' 1.7'
3' 1.7' 38 3.0' 2.5'
4' 2.3' 21 4.1' 3.4'
5' 2.9' 14 5.1' 4.2'

2' 2.0' 45 3.4' 2.1'
3' 3.0' 21 5.0' 3.1'
4' 4.0' 12 6.7' 4.1'
5' 5.0' 7 8.4' 5.1'

1' 1.7' 56 4.8' 1.5'
2' 3.5 16 9.7' 2.9'
3' 5.2' 7 14.5' 4.4'
4' 6.9' 4 19.3' 5.8'

6

'3.5'1571.7'1.5'

9' 5.2' 70 2.5' 2.2'

1

2' 6.9' 39 3.4' 2.9'

15' 8.7' 25 4.2' 3.6'

4

'4.0'1921.7'1.2'
6' 6.0' 85 2.6' 1.8'
8

'8.0'483.4'2.4'

10' 10.0' 31 4.3' 3.0'

2

'3.5'2721.7'0.8'
3' 5.2' 121 2.6' 1.3'
4

'6.9'683.5'1.7'
5' 8.7' 44 4.3' 2.1'

6' 108 2.1' 2.1'

8' 6 1 2.8' 2.8'
10' 39 3.5' 3.5'
12' 27 4.2' 4.2'

5' 2.9' 101 2.4' 2.0'
7' 4.0' 52 3.3' 2.9'

19' 5.2' 31 4.3' 3.7'

111' 6.4' 21 5.2' 4.5'

8' 205 1.3' 1.3'
12' 91 1.9' 1.9'
16' 51 2.5' 2.5'
20' 33 3.1' 3.1'

7' 4.0' 174 1.5' 1.3'
10' 5.8' 85 2.1' 1.8'
13' 7.5' 50 2.7' 2.4'
16' 9.2' 33 3.4' 2.9'

3' 3.0' 153 2.2' 1.5'
5' 5.0' 55 3.6' 2.5'
7' 7.0' 28 5.1' 3.5'
9' 9.0' 17 4.5' 4.5'

2' 3.5' 122 3.1' 1.4'
3' 5.2' 54 4.7' 2.1'
4' 6.9' 30 6.2' 2.8'
5' 8.7' 20 7.8' 3.5'

5' 5.0' 185 1.6' 1.1'
7' 7.0' 95 2.2' 1.6'
9' 9.0' 57 2.9' 2.0'

11' 11.0' 38 3.5' 2.4'

3' 5.2' 182 1.9' 0.9'
4' 6.9' 102 2.6' 1.3'
5' 8.7' 66 3.2' 1.6'
6' 10.4' 45 3.8' 1.9'

7

'1781.5'1.5'
10' 87 2.1' 2.1'
1

3' 51 2.7' 2.7'

16' 34 3.4' 3.4'

6' 9 4 2.9' 2.9'

8' 5 3 3.8' 3.8'
10' 34 4.8' 4.8'
12' 24 5.8' 5.8'

5' 2.9' 88 3.3' 2.8'
7' 4.0' 45 4.6' 3.9'
9' 5.2' 27 5.9' 5.0'

11' 6.4' 18 7.2' 6.1'

3' 3.0' 134 3.1' 2.0'
5' 5.0' 48 5.1' 3.4'
7' 7.0' 25 7.1' 4.8'
9' 9.0' 15 9.2' 6.1'

2' 3.5' 106 4.6' 1.9'
3' 5.2' 47 7.0' 2.9'
4' 6.9' 27 9.3' 3.8'
5' 8.7' 17 11.6' 4.8'

4' 116 2.9' 2.9'

6' 5 1 4.4' 4.4'

8' 2 9 5.8' 5.8'
10' 19 7.3' 7.3'

3' 1.7' 134 3.0' 2.5'
5' 2.9' 48 5.1' 4.2'
7' 4.0' 25 7.4' 5.9'
9' 5.2' 15 9.1' 7.6'

3' 3.0' 73 5.0' 3.1'
4' 4.0' 41 6.7' 4.1'
5' 5.0' 26 8.4' 5.1'
6' 6.0' 18 10.1' 6.2'

1' 1.7' 231 4.8' 1.5'
2' 3.5' 58 9.7' 2.9'
3' 5.2' 26 14.5' 4.4'
4' 6.9' 14 19.3' 5.8'

3' 128 3.1' 3.1'

5' 4 6 5.2' 5.2'

7' 2 3 7.3' 7.3'

9' 1 4 9.4' 9.4'

3' 1.7' 83 4.6' 3.6'
5' 2.9' 30 7.8' 6.0'
7' 4.0' 15 10.7' 8.4'
9' 5.2' 9 13.7' 10.8'

2' 2.0' 102 5.7' 2.9'
3' 3.0' 45 8.6' 4.4'
4' 4.0' 25 11.4' 5.9'
5' 5.0' 16 14.3 7.4'

1' 1.7' 144 22.3' 2.1'
2' 3.5 36 44.5 4.2'
3' 5.2' 16 66.8' 6.2'
4' 6.9' 9 89.1' 8.3'

8' 188 2.0' 20 '
12' 83 2.9' 2.9'
16' 47 3.9' 3.9'
20' 30 4.9' 4.9'

7' 4.0' 159 2.3' 2.0'
10' 5.8' 78 3.3' 2.8'
13' 7.5' 46 4.3' 3.7'
16' 9.2' 30 5.3' 4.5'

5' 5.0' 170 2.5' 1.7'
7' 7.0' 87 3.5' 2.4'
9' 9.0' 52 4.5' 3.1'

11' 11.0' 35 5.5' 3.8'

3' 5.2' 167 3.1' 1.5'
4' 6.9' 94 4.1' 2.0'
5' 8.7' 60 5.1' 2.5'
6' 10.4' 42 6.2' 2.9'

6' 136 2.7' 2.7'

8' 7 7 3.5' 3.5'
10' 49 4.4' 4.4'
12' 34 5.3' 5.3'

5' 2.9' 127 3.0' 2.6'
7' 4.0' 65 4.2' 3.6'
9' 5.2' 39 5.4' 4.6'

11' 6.4' 26 6.0' 5.6'

3' 3.0' 192 2.8' 1.9'
5' 5.0' 69 4.7' 3.1'
7' 7.0' 35 6.5' 4.4'
9' 9.0' 21 8.4' 5.6'

2' 3.5' 153 4.2' 1.8'
3' 5.2' 68 6.2' 2.7'
4' 6.9' 38 8.3' 3.5'
5' 8.7' 25 10.4' 4.4'

4' 131 3.1' 3.1'

6' 5 8 4.6' 4.6'

8' 3 3 6.1' 6.1'
10' 21 7.7' 7.7'

3' 1.7' 152 3.2' 2.7'
5' 2.9' 55 5.4' 4.4'
7' 4.0' 28 7.5' 6.2'
9' 5.2' 17 9.7' 8.0'

3' 3.0' 82 5.4' 3.3'
4' 4.0' 46 7.2' 4.3'
5' 5.0' 30 9.0' 5.4'
6' 6.0' 21 10.8' 6.5'

1' 1.7' 263 5.5' 1.5'
2' 3.5' 66 11.0' 3.1'
3' 5.2' 29 15.5' 4.6'
4' 6.9' 16 22.0' 6.1'

LAM P 0º A IMIN G ANG LE A=30 º AIMI NG AN GLE A=45º AIMI NG AN GLE A=60 º AIM ING AN GLE
