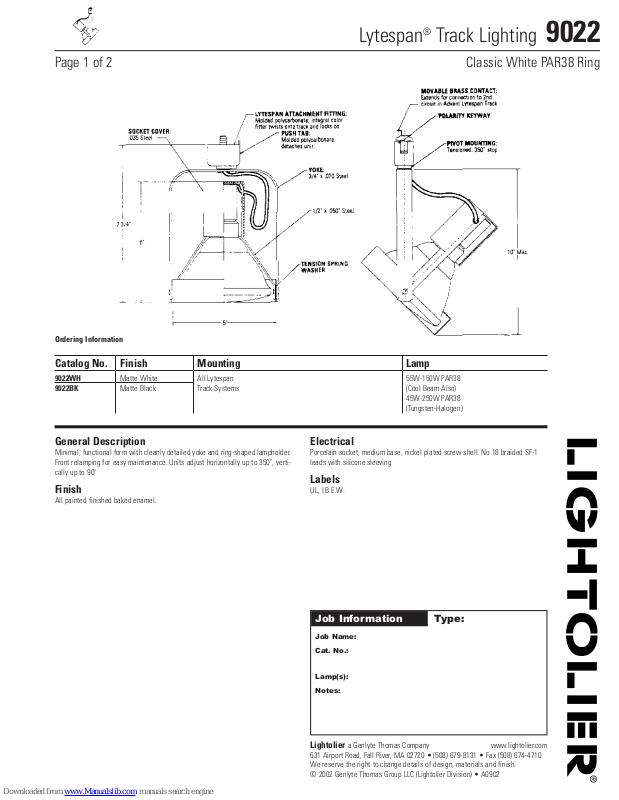

Lightolier Lytespan 9022, Lytespan 9022WH, Lytespan 9022BK Specification

Lytespan

®

Track Lighting 9022

Page 1 of 2 Classic White PAR38 Ring

Ordering Information

Catalog No. Finish Mounting Lamp

9022WH Matte White All Lytespan 55W-150W PAR38
9022BK Matte Black Track Systems (Cool Beam Also)

45W-250W PAR38
(Tungsten-Halogen)

General Description

Minimal, functional form with cleanly detailed yoke and ring-shaped lampholder.
Front relamping for easy maintenance. Units adjust horizontally up to 350˚, verti­cally up to 90˚

Electrical

Porcelain socket, medium base, nickel plated screw shell. No 18 braided SF-1
leads with silicone sleeving

Labels

Finish

All painted finished baked enamel.

UL, I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Lytespan

®

Track Lighting 9022

Page 2 of 2 Classic White PAR38 Ring

Lighting Data

Aiming Angle:

L Beam length
W Beam width
C Distance to center of beam
D Distance
A Aiming angle
FC Footcandles
L and W are the outer points wherethe candlepower

drops to 50% of the maximum. FC are the initial
footcandles at the center of the beam.

Job Information Type:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
