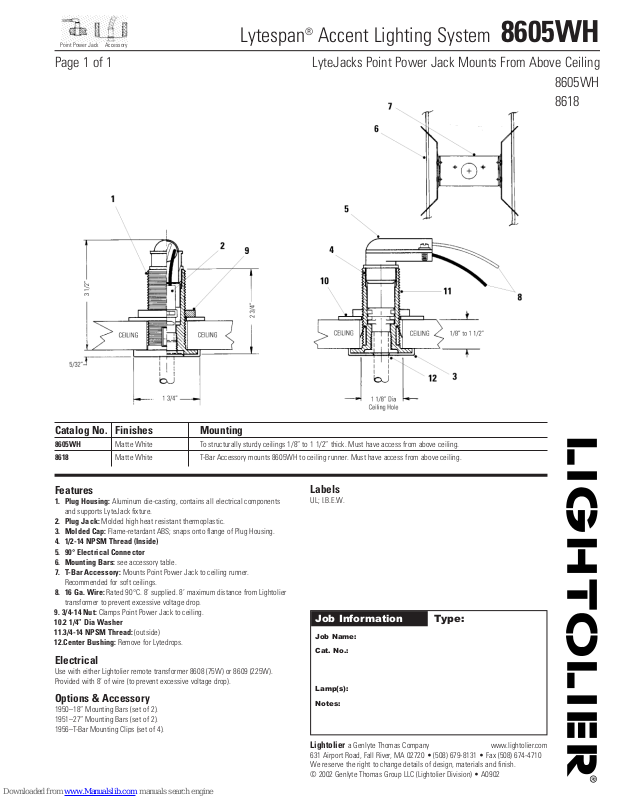

Lightolier Lytespan 8605WH Specification

®

Accent Lighting System 8605WH

Point Power Jack Accessory

Lytespan

Page 1 of 1 LyteJacks Point Power Jack Mounts From Above Ceiling

8605WH
8618

Catalog No. Finishes Mounting

8605WH Matte White To structurally sturdy ceilings 1/8” to 1 1/2” thick. Must have access from above ceiling.

8618 Matte White T-Bar Accessory mounts 8605WH to ceiling runner. Must have access from above ceiling.

Features

1. Plug Housing: Aluminum die-casting, contains all electrical components

and supports LyteJack fixture.

2. Plug Jack: Molded high heat resistant thermoplastic.

3. Molded Cap: Flame-retardant ABS; snaps onto flange of Plug Housing.

4. 1/2-14 NPSM Thread (Inside)

5. 90° Electrical Connector

6. Mounting Bars: see accessory table.

7. T-Bar Accessory: Mounts Point Power Jack to ceiling runner.

Recommended for soft ceilings.

8. 16 Ga. Wire: Rated 90°C. 8’ supplied. 8’ maximum distance from Lightolier

transformer to prevent excessive voltage drop.

9. 3/4-14 Nut: Clamps Point Power Jack to ceiling.

10.2 1/4” Dia Washer

11.3/4-14 NPSM Thread: (outside)

12.Center Bushing: Remove for Lytedrops.

Labels

UL; I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Electrical

Use with either Lightolier remote transformer 8608 (75W) or 8609 (225W).
Provided with 8’ of wire (to prevent excessive voltage drop).

Options & Accessory

1950–18” Mounting Bars (set of 2).
1951–27” Mounting Bars (set of 2).
1956–T-Bar Mounting Clips (set of 4).

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
