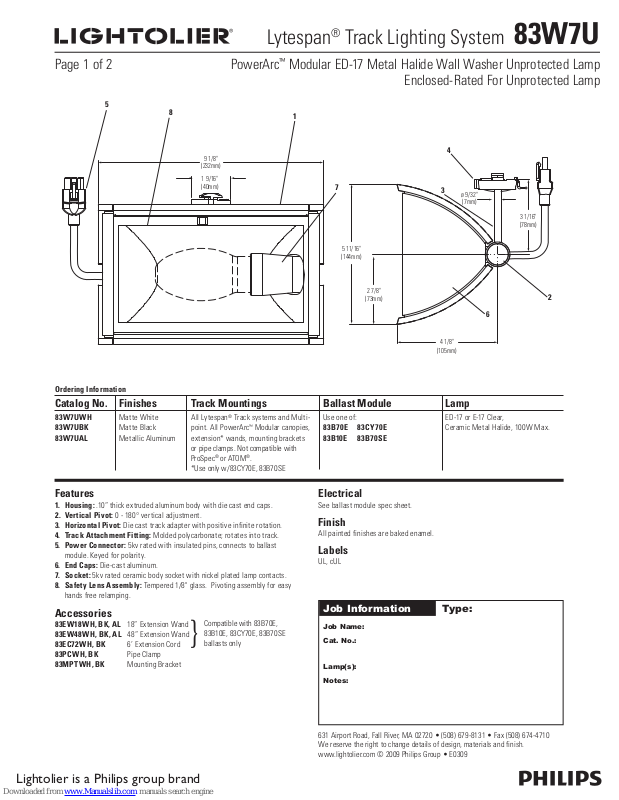

Lytespan
®
Track Lighting System 83W7U
Page 1 of 2 PowerArc™ Modular ED-17 Metal Halide Wall Washer Unprotected Lamp
Enclosed-Rated For Unprotected Lamp
5
Ordering Information
8
9 1/8"
(232mm)
1 9/16"
(40mm)
1
4
7
5 11/16"
(144mm)
2 7/8"
(73mm)
3
4 1/8"
(105mm)
ø 9/32"
(7mm)
3 1/16"
(78mm)
6
Catalog No. Finishes Track Mountings Ballast Module Lamp
83W7UWH Matte White All Lytespan® Track systems and Multi- Use one of: ED-17 or E-17 Clear,
83W7UBK Matte Black point. All PowerArc™ Modular canopies, 83B70E 83CY70E Ceramic Metal Halide, 100W Max.
83W7UAL Metallic Aluminum extension* wands, mounting brackets 83B10E 83B70SE
or pipe clamps. Not compatible with
ProSpec® or ATOM®.
*Use only w/83CY70E, 83B70SE
2
Features
1. Housing: .10” thick extruded aluminum body with die cast end caps.
2. Vertical Pivot: 0 - 180° ver tical adjustment.
3. Horizontal Pivot: Die cast track adapter with positive infinite rotation.
4. Track At tachment Fitting: Molded polycarbonate; rotates into track.
5. Power Connector: 5k v rated with insulated pins, connects to ballast
module. Keyed for polarity.
6. End Caps: Die-cast aluminum.
7. Socket: 5kv rated ceramic body socket with nickel plated lamp contacts.
8. Safety Lens Assembly: Tempered 1/8" glass. Pivoting assembly for easy
hands free relamping.
Accessories
83EW18WH, BK , AL 18” Extension Wand
83EW4 8WH, BK, AL 48” Extension Wand
83EC72WH, BK 6’ Ex tension Cord
83PCWH, BK Pipe Clamp
83MPT WH, BK Mounting Bracket
Compatible with 83B70E,
83B10E, 83CY70E, 83B70SE
}
ballasts only
Lightolier is a Philips group brand
Electrical
See ballast module spec sheet.
Finish
All painted finishes are baked enamel.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • E0309
Lytespan
®
Track Lighting System 83W7U
Page 2 of 2 PowerArc™ Modular ED-17 Metal Halide Wall Washer Unprotected Lamp
Enclosed-Rated For Unprotected Lamp
Lighting Data
Footcandles on wall:
La mp Information:
8
53 f.c.
36 f.c.
53 f.c.
EXAMPLE: With track located 4’ from wall and multiple units spaced
8’ on center and aimed 50˚ from horizontal, the illumination on wall 4’
from ceiling will be 53 f.c. beneath units and 36 f.c. between units.
Footcandles on Wall
Track 3 Feet From Wall Single Unit Multiple Units
0’ 1’ 2’ 3’ 4’ 5’
1' 132 111 62 27 11 6
2 118 115 71 35 14 6
3' 91 88 59 32 14 7
4' 57 53 40 27 14 7
5' 35 33 26 19 13 7
6' 22 21 17 14 11 7
Distance From Ceiling
7' 15 14 12 10 8 7
8' 11 10 9 8 7 6
9' 8 8 7 6 5 5
3’
Beam Center
50˚
70W ED-17 Clear Ceramic Metal Halide
Initial Lumens: 6200
CRI: 82
Rated Avg. life: 10,000 hrs.
For 100W Multiply by 1.5.
4’
156 133 156
149 150 148
122 128 121
89 90 88
66 61 65
48 45 47
36 35 35
28 28 27
23 24 22
5’
145 94 145
132 112 133
106 98 107
73 74 74
52 51 53
39 37 40
30 29 31
24 23 24
20 20 20
6’
136 52 136
121 68 121
95 63 95
62 54 62
40 38 40
28 27 28
20 19 21
15 15 16
12 11 12
Track 4 Feet From Wall Single Unit Multiple Units
0’ 1’ 2’ 3’ 4’ 5’
1' 70 63 44 26 13 6
2' 69 68 51 33 18 8
3' 61 63 51 33 19 9
4' 50 50 42 29 18 9
5' 35 34 29 22 16 9
6' 24 23 20 16 13 9
Distance From Ceiling
7 17 16 14 11 9 7
8' 12 11 10 8 7 6
9' 8 8 8 6 5 5
10' 6 6 6 5 4 4
11' 5 5 4 4 3 3
12' 3 3 3 3 3 2
Footcandles are average and rounded off and data for multiple units are based on a minimum of five units.
For 100W: Multiply values by 1.5 Rated Lamp Life 12,500 Hrs.
50˚
4’
Beam Center
77 53 77
77 67 77
71 66 71
59 59 59
45 46 45
35 33 35
27 24 27
21 18 21
16 14 16
12 11 12
10 9 10
8 7 8
6’*
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • E0309
73 26 73
72 36 72
64 38 64
53 36 53
39 32 39
28 26 28
20 19 20
16 15 16
12 11 12
10 9 10
8 7 8
6 6 6
8’* 10’*
71 12 71
70 17 70
63 19 63
51 18 51
37 19 37
26 18 26
19 15 19
13 12 13
10 10 10
8 8 8
6 6 6
5 5 5
Lightolier is a Philips group brand
