Lightolier Lytespan 83W6 Specification

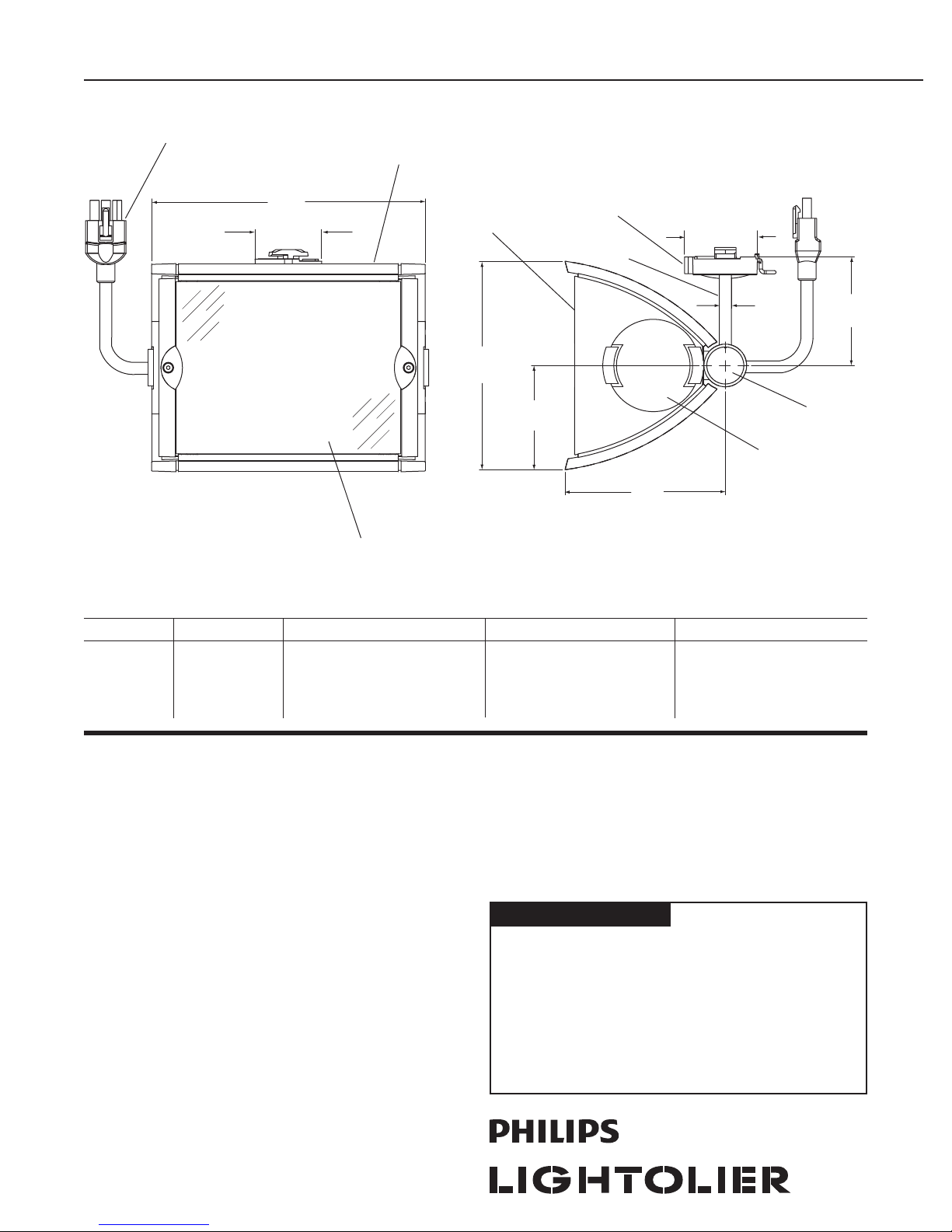

Page 1 of 2 PowerArc Modular T-6 Single Ended Metal Halide Wall Washer
7
1
6 3/8"
(162mm)
1 9/16" (40mm)
8
4
3
1 11/16"
(43mm)
9/32"
(7mm)
4 7/8"
(124mm)
2 7/16" (62mm)
6
3 3/4"
(95mm)
5
Ordering Information
2
Catalog No.  Finishes  Track Mountings  Ballast Module   Lamp
83W6WH Matte White All Lytespan Track Systems and Multi- Use one of: T6, G12 base, Single Ended 83W6BK Matte Black point. PowerArc™ Modular canopies, 83B39E  83CY70E    Ceramic Metal Halide, 70W Max. 83W6AL Metallic Aluminum extension wands, mounting brackets or 83CY39E  83B70E pipe clamps. Not compatible with 83B70SE   ProSpec or ATOM 83B39LE
2 5/8"
(67mm)
Features
1.   Housing: 0.10" thick extruded aluminum body.
2.  Vertical P ivot: 0 - 180° ver tical adjustment.
3.   Horizontal Pivot: Die cast track adapter with infinite rotation.
4.   Track At tachment Fitting: Molded polycarbonate; rotates into track.
5.   Safety Lens: Tempered 1/8" glass. Meets or exceeds U.L. safety
requirements for metal halide lamps.
6.  Lamp Car tridge: Die cast aluminum. Allows easy side relamping without removal of lens.
7.  Power Connecto r : 5k v rated with insulated pins. Connects to ballast module. Keyed for polarity.
8.  End Caps: Die cast aluminum.
9.  Lampholder: (not shown) G12 base, 5kv pulse rated. High temperature
ceramic body with CuSn nickel plated contacts.
Accessories
83EW18WH, BK , AL 18" Extension Wand 83EW4 8WH, BK, AL 48" Extension Wand 83EC72WH, BK 6' Ex tension Cord 83PCWH, BK Pipe Clamp 83MPT WH, BK Mounting Bracket
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2010 Philips Group • D0610
Compatible with 83B39LE, 83B70E
}
ballasts only
Electrical
See ballast module spec sheet.
Finish
All painted finishes are baked enamel.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Page 2 of 2 PowerArc Modular T-6 Single Ended Metal Halide Wall Washer
Lighting Data
Footcandles on wall:
4'
50ϒ
6'
Lamp Information:
70W CDM T6 Single Ended Metal Halide. Initial Lumens: 6600 CRI: 82 Rated Avg. life: 9,000 - 15,000 hrs.
4'
50 f.c.
37 f.c.
50 f.c.
Example: With track located 4' from wall and multiple units spaced 8' on center and aimed 50˚ from horizontal, the illumination on wall 4' from ceiling will be 50.c. beneath units and 37 f.c. between units.
For 39W Multiply by 0.5.
Footcandles on Wall
  Track 3 Feet From Wall  Single Unit  Multiple  Units
0' 1' 2' 3' 4' 5'
1' 153 129 70 30 13 6 2' 127 111 73 38 16 6 3' 85 76 56 34 17 7 4' 57 51 40 28 16 9 5' 39 35 20 21 13 8 6' 26 25 20 16 11 7
Distance From Ceiling
7' 17 16 14 11 9 6 8' 12 11 10 8 7 5 9' 8 8 7 6 5 4
3'
Beam Center
50°
104 150 184 159 149 159 120 118 120 93 90 93 67 65 67 53 52 53 39 38 39 29 29 29 23 23 23
4'
169 98 169 139 109 139 99 91 99 76 73 76 54 52 54 43 41 43 31 31 31 23 23 23 19 19 19
5'
6'
163 63 163 132 76 132 90 69 91 67 59 68 47 42 47 37 35 37 27 26 27 20 20 20 16 16 16
  Track 4 Feet From Wall  Single Unit  Multiple  Units
0' 1' 2' 3' 4' 5'
1' 72 67 46 24 9 3 2' 84 76 56 36 19 9 3' 65 61 48 34 21 11 4' 48 45 38 29 19 12 5' 35 33 28 23 17 11 6' 26 25 21 18 14 10
Distance From Ceiling
7' 20 19 17 14 11 8 8' 15 14 13 11 9 7 9' 11 11 10 9 7 6
Footcandles are average and rounded off and data for multiple units are based on a minimum of five units.
For 39W: Multiply values by 0.5 Rated Lamp Life 9,000 - 12,000 Hrs.
50°
4'
Beam Center
77 57 77 91 72 91 74 69 74 60 57 60 47 45 47 38 36 38 31 28 31 24 22 24 19 18 19 15 14 15 12 11 12 10 9 10
6' *
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2010 Philips Group • D0610
76 23 76 87 37 87 67 41 67 50 37 50 38 32 38 31 26 31 24 21 24 19 17 19 15 14 15 12 11 12 10 9 10 8 7 8
8' * 10' *
75 7 75 86 15 86 66 21 66 49 22 49 36 21 36 28 19 28 21 16 21 16 13 16 13 11 13 10 9 10 8 7 8 6 6 6
