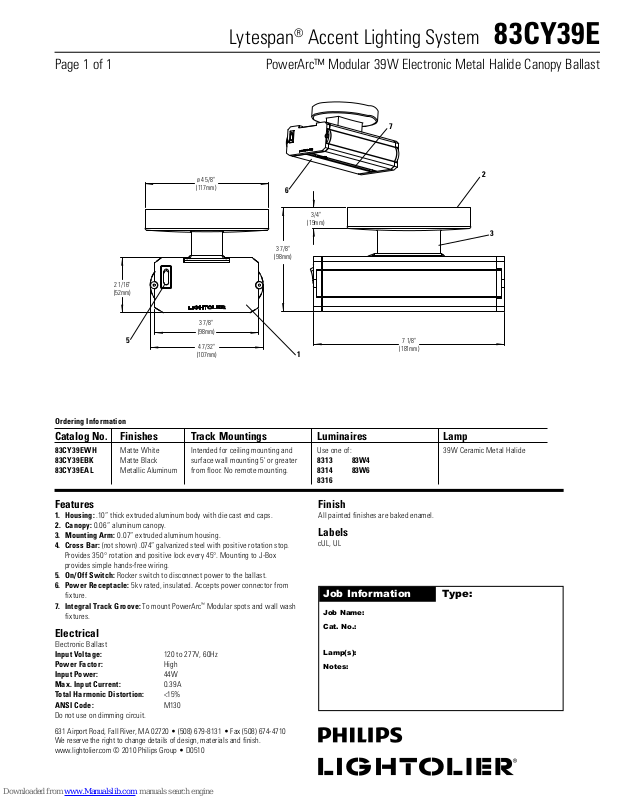

Lytespan
®
Accent Lighting System 83C Y39E
Page 1 of 1 PowerArc™ Modular 39W Electronic Metal Halide Canopy Ballast
7
2
3
2 1/16"
(52mm)
Orde ring Information
ø 4 5/8"
(117mm)
3 7/8"
5
(98mm)
4 7/32"
(107mm)
6
3 7/8"
(98mm)
1
3/4"
(19mm)
7 1/8"
(181mm)
Catalog No. Finishes Track Mountings Luminaires Lamp
83CY39EWH Matte White Intended for ceiling mounting and Use one of: 39W Ceramic Metal Halide
83CY39EBK Matte Black surface wall mounting 5' or greater 8313 83W4
83CY39EAL Metallic Aluminum from floor. No remote mounting. 8314 83W6
8316
Features
1. Housing: .10” thick extruded aluminum body with die cast end caps.
2. Canopy: 0.06” aluminum canopy.
3. Mounting Arm: 0.07” extruded aluminum housing.
4. Cross Bar: (not shown) .074” galvanized steel with positive rotation stop.
Provides 350° rotation and positive lock ever y 45°. Mounting to J-Box
provides simple hands-free wiring.
5. On/Off Switch: Rocker switch to disconnect power to the ballast.
6. Power Receptacle: 5kv rated, insulated. Accepts power connector from
fixture.
7. Integral Track Groove: To mount PowerArc™ Modular spots and wall wash
fixtures.
Electrical
Electronic Ballast
Input Voltage: 120 to 277V, 60Hz
Power Factor: High
Input Power: 44W
Max. Input Current: 0.39A
Total Harmonic Distortion: <15%
ANSI Code: M130
Do not use on dimming circuit.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • D0510
Finish
All painted finishes are baked enamel.
Labels
cUL, UL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
