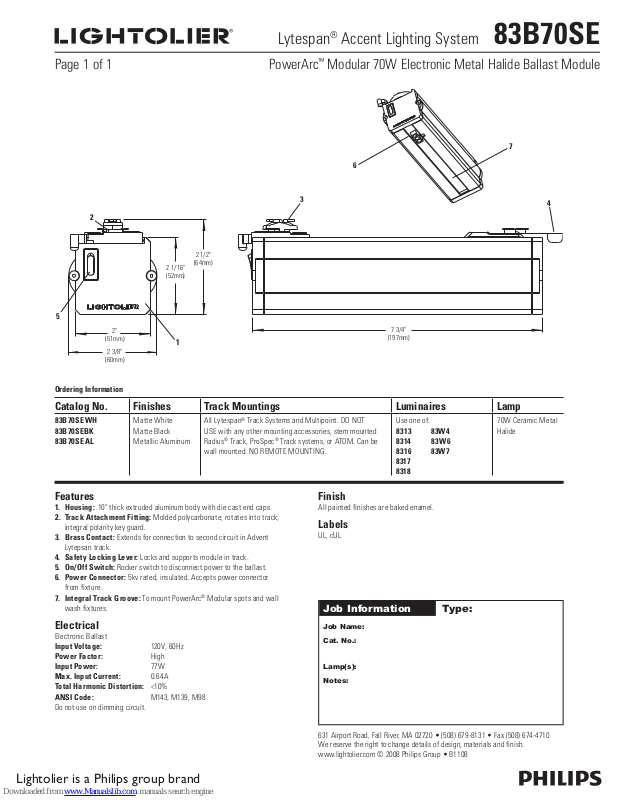

Lytespan
®
Accent Lighting System 83B70SE
Page 1 of 1 PowerArc™ Modular 70W Electronic Metal Halide Ballast Module
7
6
3
2
2 1/2"
(64mm)
2 1/16"
(52mm)
5
2"
(51mm)
2 3/8"
(60mm)
Ordering Information
1
7 3/4"
(197mm)
Catalog No. Finishes Track Mountings Luminaires Lamp
83B70SEWH
83B70SEBK
83B70SEAL
Matte White
Matte Black
Metallic Aluminum
All Ly te span
USE with any other mounting accessories, stem mounted
Radius® Track, ProSpec® Track systems, or ATOM . Can be
wall mounted. NO REMOTE MOUNTING.
®
Track Systems and Multipoint. DO NOT
Use one of:
8313 83W4
8314 83W6
8316 83W7
8317
8318
70W Ceramic Metal
Halide
4
Features
1. Housing: .10" thick extruded aluminum body with die cast end caps.
2. Track Attachment Fitting: Molded polycarbonate; rotates into track,
integral polarity key guard.
3. Brass Contact: Ex tends for connection to second circuit in Advent
Lytepsan track.
4. Safety Locking Lever: Locks and supports module in track.
5. On/Off Switch: Rocker switch to disconnect power to the ballast.
6. Power Connector: 5kv rated, insulated. Accepts power connector
from fixture.
7. Integral Track Groove: To mount PowerArc® Modular spots and wall
wash fixtures.
Electrical
Electronic Ballast
Input Voltage: 120V, 60Hz
Power Factor: High
Input Power: 77W
Max. Input Current: 0.64A
Total Harmonic Distortion: <10%
ANSI Code: M143, M139, M98
Do not use on dimming circuit.
Lightolier is a Philips group brand
Finish
All painted finishes are baked enamel.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • B1108
