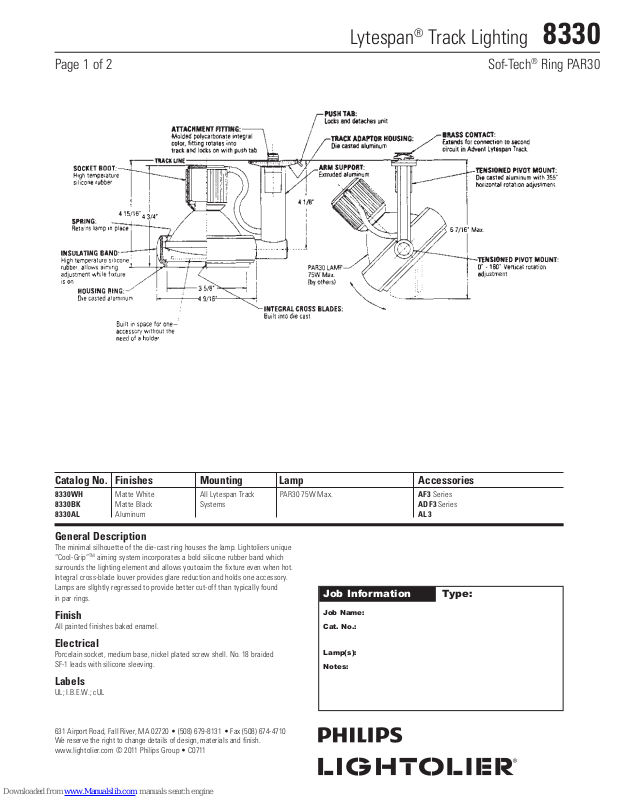

Lytespan
®
Track Lighting 8330
Page 1 of 2 Sof-Tech® Ring PAR30
Catalog No. Finishes Mounting Lamp Accessories
8330WH Matte White All Lytespan Track PAR30 75W Max. AF3 Series
8330BK Matte Black Systems ADF3 Series
8330AL Aluminum AL3
General Description
The minimal silhouet te of the die-cast ring houses the lamp. Lightoliers unique
“Cool-Grip”TM aiming system incorporates a bold silicone rubber band which
surrounds the lighting element and allows youtoaim the fixture even when hot.
Integral cross-blade louver provides glare reduction and holds one accessory.
Lamps are sllghtly regressed to provide better cut-off than typically found
in par rings.
Finish
All painted finishes baked enamel.
Electrical
Porcelain socket, medium base, nickel plated screw shell. No. 18 braided
SF-1 leads with silicone sleeving.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Labels
UL; I.B.E.W.; cUL
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
Lytespan
®
Track Lighting 8330
Page 2 of 2 Sof-Tech® Ring PAR30
Lighting Data
(FC) is the initial footcandles at the center of the beam.
(L) and (W) are to the point that the candlepower drops to 50% of maximum.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
