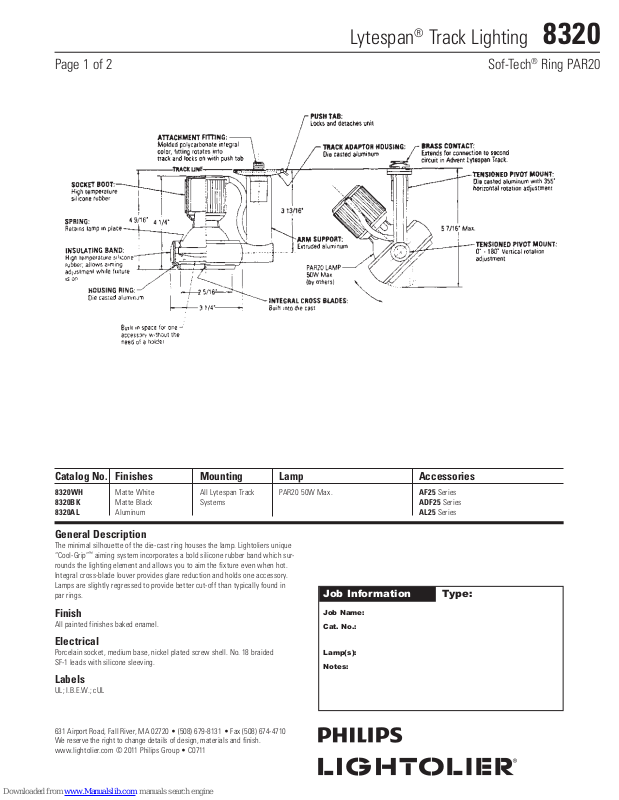

Lytespan
®
Track Lighting 8320
Page 1 of 2 Sof-Tech® Ring PAR20
Catalog No. Finishes Mounting Lamp Accessories
8320WH Matte White All Lytespan Track PAR20 50W Max. AF25 Series
8320BK Matte Black Systems ADF25 Series
8320AL Aluminum AL25 Series
General Description
The minimal silhouet te of the die-cast ring houses the lamp. Lightoliers unique
“Cool-Grip”™ aiming system incorporates a bold silicone rubber band which surrounds the lighting element and allows you to aim the fixture even when hot.
Integral cross-blade louver provides glare reduction and holds one accessory.
Lamps are slightly regressed to provide better cut-off than typically found in
par rings.
Finish
All painted finishes baked enamel.
Job Information Type:
Job Name:
Cat. No.:
Electrical
Porcelain socket, medium base, nickel plated screw shell. No. 18 braided
SF-1 leads with silicone sleeving.
Lamp(s):
Notes:
Labels
UL; I.B.E.W.; cUL
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
Lytespan
®
Track Lighting 8320
Page 2 of 2 Sof-Tech® Ring PAR20

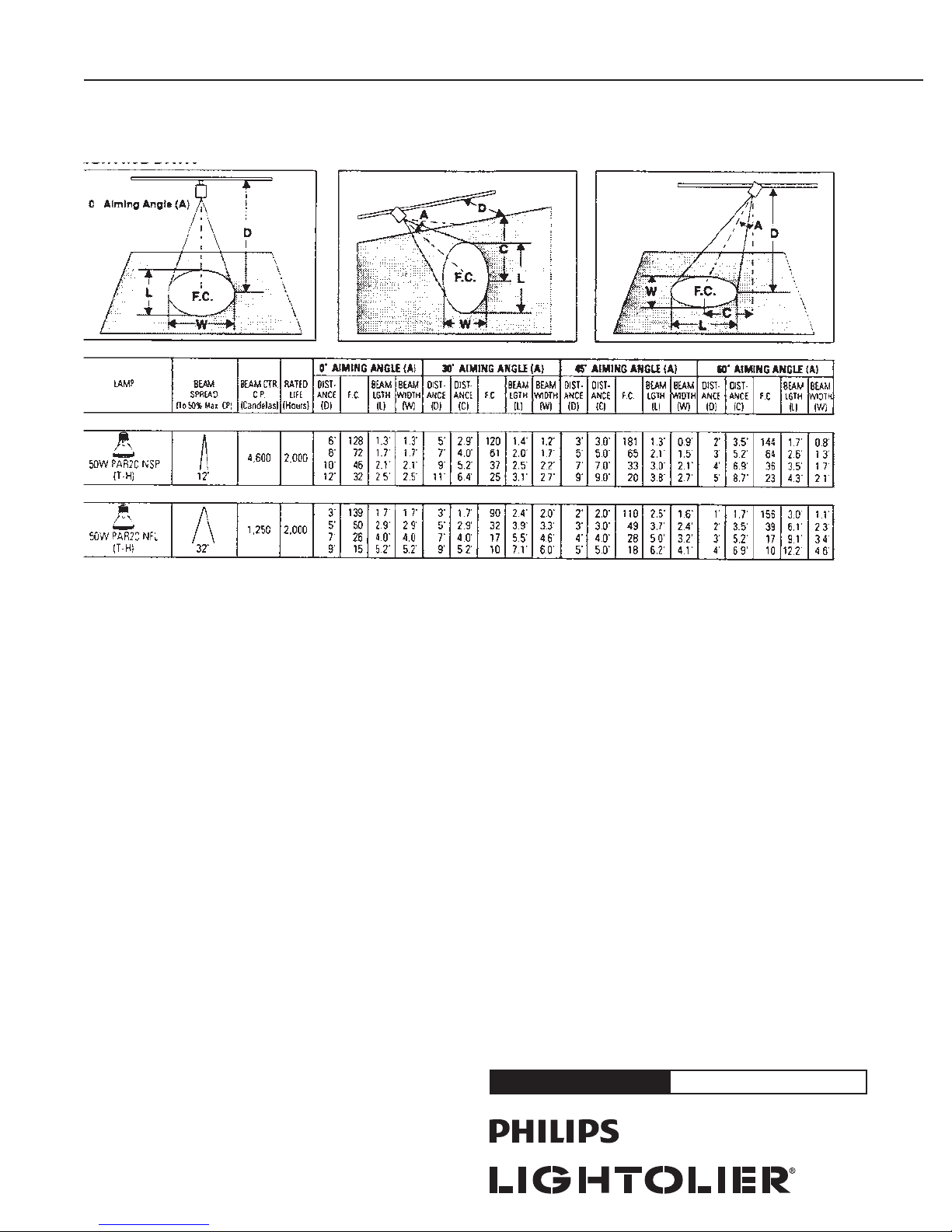

Lighting Data
(FC) is the initial footcandles at the center of the beam.
(L) and (W) are to the point that the candlepower drops to 50% of maximum.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
