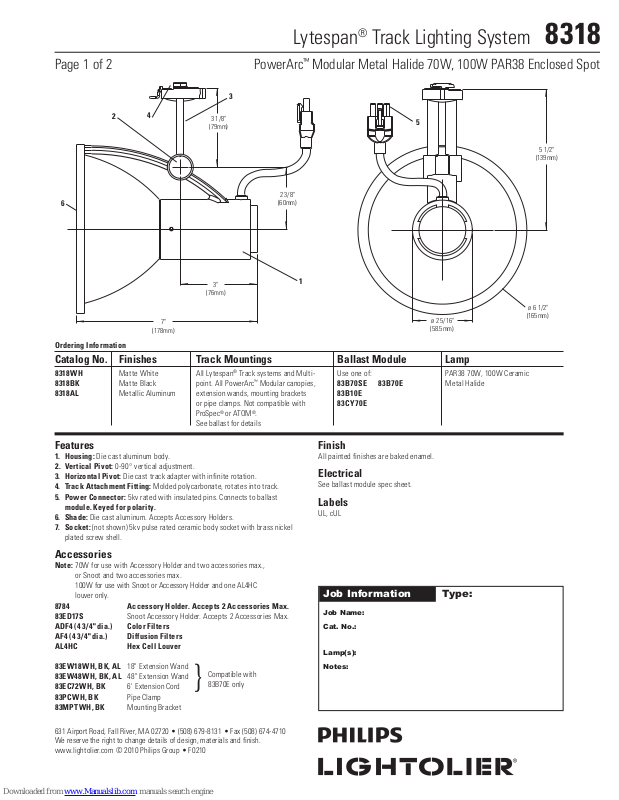

Lytespan
®
Track Lighting System 8318
Page 1 of 2 PowerArc™ Modular Metal Halide 70W, 100W PAR38 Enclosed Spot
3
2
6
Orde ring Information
4
(178mm)
3 1/8"
(79mm)
2 3/8"
(60mm)
3"
(76mm)
7"
1
5
ø 2 5/16"
(58.5mm)
Catalog No. Finishes Track Mountings Ballast Module Lamp
8318WH Matte White All Lytespan® Track systems and Multi- Use one of: PAR38 70W, 100W Ceramic
8318BK Matte Black point. All PowerArc™ Modular canopies, 83B70SE 8 3B70E Metal Halide
8318AL Metallic Aluminum extension wands, mounting brackets 83B10E
or pipe clamps. Not compatible with 83CY70E
ProSpec® or ATOM®.
See ballast for details
5 1/2"
(139mm)
ø 6 1/2"
(165mm)
Features
1. Housing: Die cast aluminum body.
2. Vertical Pivot: 0-90° vertical adjustment.
3. Horizontal Pivot: Die cast track adapter with infinite rotation.
4. Track Attachment Fitting: Molded polycarbonate, rotates into track.
5. Power Connector : 5kv rated with insulated pins. Connects to ballast
module. Keyed for polarity.
6. Shade: Die cast aluminum. Accepts Accessory Holders.
7. Socket: (not shown) 5kv pulse rated ceramic body socket with brass nickel
plated screw shell.
Accessories
Note: 70W for use with Accessory Holder and two accessories max.,
or Snoot and t wo accessories max.
100W for use with Snoot or Accessory Holder and one AL4HC
louver only.
87 8 4 Accessory Holder. Accepts 2 Accessories Max.
83ED17S Snoot Accessory Holder. Accepts 2 Accessories Max.
ADF4 (4 3/4" dia.) Color Filters
AF4 (4 3/4" dia.) Diffusion Filter s
AL4HC Hex Cell Louver
83EW18WH, BK , AL 18" Extension Wand
83EW4 8WH, BK, AL 48" Extension Wand
83EC72WH, BK 6' Ex tension Cord
83PCWH, BK Pipe Clamp
83MPT WH, BK Mounting Bracket
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • F0210
Compatible with
}
83B70E only
Finish
All painted finishes are baked enamel.
Electrical
See ballast module spec sheet.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lytespan
®
Track Lighting System 8318
Page 2 of 2 PowerArc™ Modular Metal Halide 70W, 100W PAR38 Enclosed Spot
Lighting Data
Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
D
L
FC
W
FC
L
D
A
W
C
D
A
C
FC
L
LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE
70W PAR38
SP 15ϒ
70W PAR38
FL 30ϒ
70W PAR38
WFL 65ϒ
100W PAR38
SP
Beam Spread
50% Max CP
Beam Center
C.P. Cande las
28000 7500
16000 7500
Rated
Life-Hrs
4000 7500
D FC L W D C FC L W D C FC L W D C FC L W
10' 280 2.6' 2.6'
15' 124 3.9' 3.9'
20' 70 5.3' 5.3'
25' 45 6.6' 6.6'
8' 250 4.3' 4.3'
12' 111 6.4' 6.4'
18' 63 8.8' 8.8'
20' 40 10.7' 10.7'
6' 111 7.6' 7.6'
8' 63 10.2' 10.2'
10' 40 12.7' 12.7'
12' 28 15.3' 15.3'
8' 4.6' 284 2.8' 2.4'
12' 6.9' 126 4.2' 3.6'
16' 9.2' 671 5.8' 4.9'
20' 11.5' 45 7.1' 6.1'
7' 3.5' 212 5.1' 4.3'
10' 4.0' 104 7.3' 6.2'
13' 5.8' 61 9.5' 8.0'
16' 7.5' 41 11.7' 9.9'
5' 2.9' 104 9.8' 7.4'
7' 4.0' 53 13.8' 10.3'
9' 5.2' 32 17.7' 13.2'
11' 8.4' 21 21.6' 16.2'
6' 6.0' 275 3.2' 2.2'
9' 9.0' 122 4.8' 3.4'
12' 12.0' 69 6.4' 4.5'
15' 15.0' 44 8.0' 5.6'
5' 5.0' 226 5.8' 3.8'
7' 7.0' 115 8.1' 5.3'
9' 9.0' 70 10.4' 6.8'
11' 11.0' 47 12.7' 8.3'
3' 3.0' 157 12.9' 3.8'
5' 5.0' 57 21.4' 5.4'
7' 7.0' 29 30.0' 9.0'
9' 9.0' 17 38.6' 16.2'
4' 6.9' 219 4.4' 2.1'
6' 10.4' 97 6.7' 3.2'
8' 13.9' 55 8.9' 4.2'
10' 17.3' 35 11.1' 5.3'
3' 5.2' 222 8.2' 3.2'
4' 6.9' 125 10.9' 4.3'
5' 8.7' 80 13.7' 5.4'
6' 10.4' 56 16.4' 6.4'
2' 3.5' 125 NA 5.1'
3' 5.2' 58 NA 7.6'
4' 6.9' 31 NA 10.2'
5' 8.7' 20 NA 12.7'
*Lamps are MasterColor Metal Halide by Philips Lighting.
Correlated Color Temperature = 30 00K
Color Rendering Index = 83
