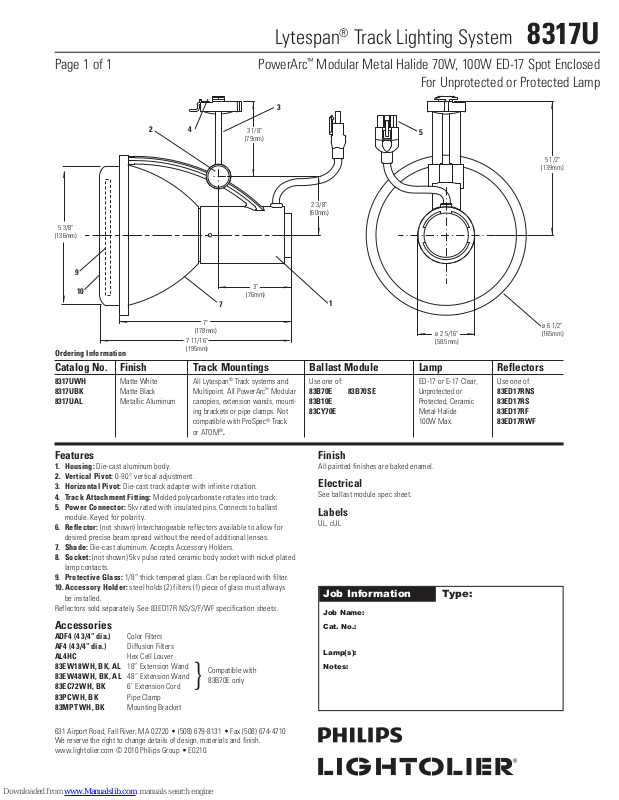

Lytespan
®
Track Lighting System 8317U
Page 1 of 1 PowerArc™ Modular Metal Halide 70W, 100W ED-17 Spot Enclosed
For Unprotected or Protected Lamp
3
2
5 3/8"
(136mm)
9
10
Orde ring Information
4
(178mm)
7 11/16"
(195mm)
3 1/8"
(79mm)
2 3/8"
(60mm)
3"
(76mm)
7
7"
1
5
ø 2 5/16"
(58.5mm)
Catalog No. Finish Track Mountings Ballast Module Lamp Reflectors
8317UWH Matte White All Lytespan® Track systems and Use one of: ED-17 or E-17 Clear, Use one of:
8317UBK Matte Black Multipoint. All PowerArc
8317UAL Metallic Aluminum canopies, extension wands, mount- 83B10E Protected, Ceramic 83ED17RS
ing brackets or pipe clamps. Not 83CY70E Metal Halide 83ED17RF
compatible with ProSpec® Track 100W Max. 83ED17RWF
or ATOM®.
™
Modular 83B70E 83B70SE Unprotected or 83ED17RNS
5 1/2"
(139mm)
ø 6 1/2"
(165mm)
Features
1. Housing: Die-cast aluminum body.
2. Vertical P ivot: 0-90° vertical adjustment.
3. Horizontal Pivot: Die-cast track adapter with infinite rotation.
4. Track At tachment Fitting: Molded polycarbonate rotates into track.
5. Power Connecto r: 5k v rated with insulated pins. Connects to ballast
module. Keyed for polarity.
6. Reflector: (not shown) Interchangeable reflectors available to allow for
desired precise beam spread without the need of additional lenses.
7. Shade : Die-cast aluminum. Accepts Accessor y Holders.
8. Socket: (not shown) 5kv pulse rated ceramic body socket with nickel plated
lamp contacts.
9. Pro tective Glass: 1/8” thick tempered glass. Can be replaced with filter.
10. Accessory Holder: steel holds (2) filters (1) piece of glass must allways
be installed.
Reflectors sold separately. See 83ED17R NS/S/F/WF specification sheets.
Accessories
ADF4 (4 3/4” dia.) Color Filters
AF4 (4 3/4” dia.) Diffusion Filters
AL4HC Hex Cell Louver
83EW18WH, BK , AL 18” Extension Wand
83EW4 8WH, BK, AL 48” Extension Wand
83EC72WH, BK 6’ Extension Cord
83PCWH, BK Pipe Clamp
83MPT WH, BK Mounting Bracket
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • E0210
Compatible with
83B70E only
}
Finish
All painted finishes are baked enamel.
Electrical
See ballast module spec sheet.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
