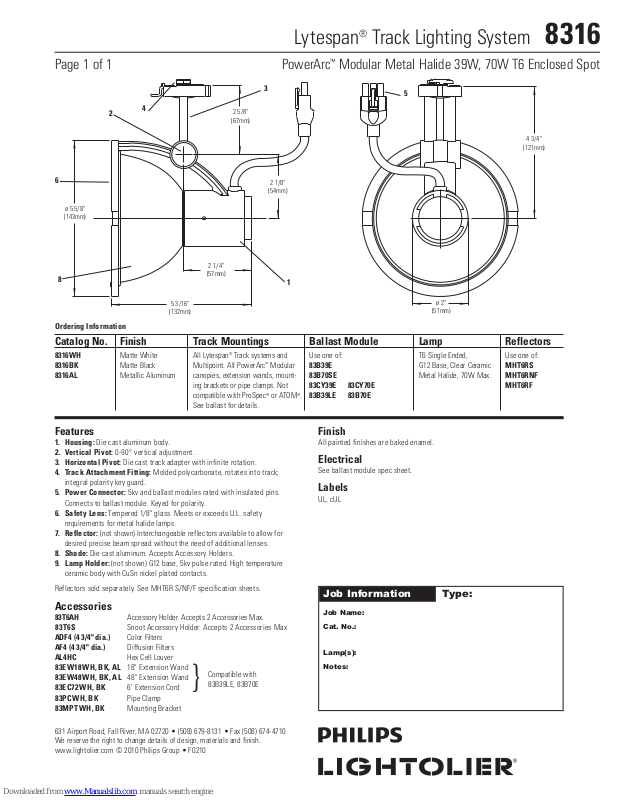

Lytespan
®
Track Lighting System 8316
Page 1 of 1 PowerArc™ Modular Metal Halide 39W, 70W T6 Enclosed Spot
2
6
ø 5 5/8"
(143mm)
8
Orde ring Information
3
4
5 3/16"
(132mm)
2 5/8"
(67mm)
2 1/8"
(54mm)
2 1/4"
(57mm)
1
5
4 3/4"
(121mm)
ø 2"
(51mm)
Catalog No. Finish Track Mountings Ballast Module Lamp Reflectors
8316WH Matte White All Lytespan® Track systems and Use one of: T6 Single Ended, Use one of:
8316BK Matte Black Multipoint. All PowerArc™ Modular 83B39E G12 Base, Clear Ceramic MHT6RS
8316AL Metallic Aluminum canopies, extension wands, mount- 83B70SE Metal Halide, 70W Max. MHT6RNF
ing brackets or pipe clamps. Not 83CY39E 83CY70E MHT6RF
compatible with ProSpec® or ATOM®. 83B39LE 83B70E
See ballast for details.
Features
1. Housing: Die cast aluminum body.
2. Vertical P ivot: 0-90° vertical adjustment.
3. Horizontal Pivot: Die cast track adapter with infinite rotation.
4. Track At tachment Fitting: Molded polycarbonate, rotates into track;
integral polarity key guard.
5. Power Connecto r: 5k v and ballast modules rated with insulated pins.
Connects to ballast module. Keyed for polarity.
6. Safety Lens: Tempered 1/8" glass. Meets or exceeds U.L. safety
requirements for metal halide lamps.
7. Reflector: (not shown) Interchangeable reflectors available to allow for
desired precise beam spread without the need of additional lenses.
8. Shade : Die cast aluminum. Accepts Accessory Holders.
9. Lamp Holder: (not shown) G12 base, 5kv pulse rated. High temperature
ceramic body with CuSn nickel plated contacts.
Reflectors sold separately. See MHT6R S/NF/F specification sheets.
Accessories
83T6AH Accessory Holder. Accepts 2 Accessories Max.
83T6S Snoot Accessory Holder. Accepts 2 Accessories Max
ADF4 (4 3/4" dia.) Color Filters
AF4 (4 3/4" dia.) Diffusion Filters
AL4HC Hex Cell Louver
83EW18WH, BK , AL 18" Extension Wand
83EW4 8WH, BK, AL 48" Extension Wand
83EC72WH, BK 6' Extension Cord
83PCWH, BK Pipe Clamp
83MPT WH, BK Mounting Bracket
Compatible with
}
83B39LE, 83B70E
Finish
All painted finishes are baked enamel.
Electrical
See ballast module spec sheet.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • F0210
