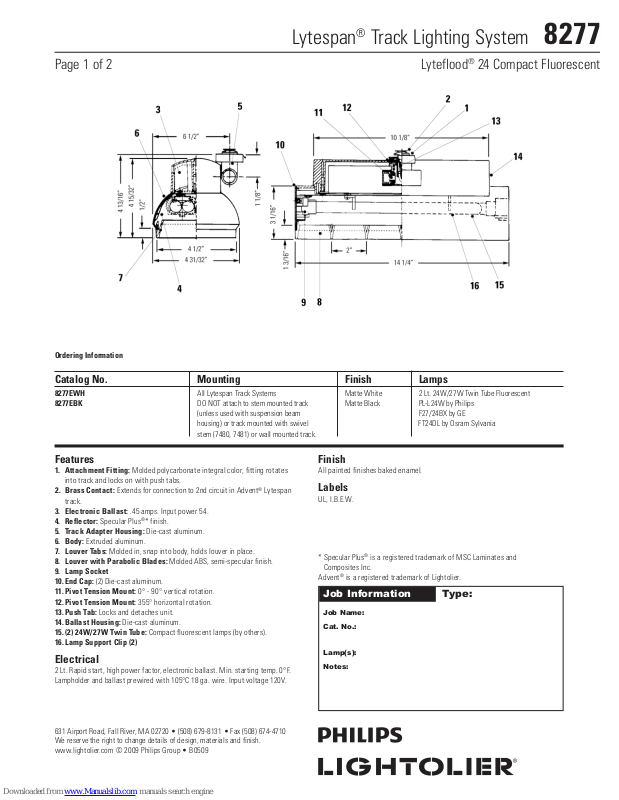

Lytespan
®
Track Lighting System 8277
Page 1 of 2 Lyteflood® 24 Compact Fluorescent
Ordering Information
Catalog No. Mounting Finish Lamps
8277EWH All Lytespan Track Systems Matte White 2 Lt. 24W/27W Twin Tube Fluorescent
8277EBK DO NOT attach to stem mounted track Matte Black PL-L24W by Philips
(unless used with suspension beam F27/24BX by GE
housing) or track mounted with swivel FT24DL by Osram Sylvania
stem (7480, 7481) or wall mounted track.
Features
1. Attachment Fitting: Molded polycarbonate integral color, fitting rotates
into track and locks on with push tabs.
2. Brass Contact: Extends for connection to 2nd circuit in Advent® Lytespan
track.
3. Electronic Ballast: .45 amps. Input power 54.
4. Reflector: Specular Plus®* finish.
5. Track Adapter Housing: Die-cast aluminum.
6. Body: Extruded aluminum.
7. Louver Tabs: Molded in, snap into body, holds louver in place.
8. Louver with Parabolic Blades: Molded ABS, semi-specular finish.
9. Lamp Socket
10. End Cap: (2) Die-cast aluminum.
11. Pivot Tension Mount: 0° - 90° ver tical rotation.
12. Pivot Tension Mount: 355° horizontal rotation.
13. Push Tab: Locks and detaches unit.
14. Ballast Housing: Die-cast aluminum.
15. (2) 24W/27 W Twin Tube: Compact fluorescent lamps (by others).
16. Lamp Support Clip (2)
Electrical
2 Lt. Rapid start, high power factor, electronic ballast. Min. starting temp. 0°F.
Lampholder and ballast prewired with 105°C 18 ga. wire. Input voltage 120V.
Finish
All painted finishes baked enamel.
Labels
UL, I.B.E.W.
* Specular Plus® is a registered trademark of MSC Laminates and
Composites Inc.
Advent® is a registered trademark of Lightolier.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0509
Lighting Data
Lytespan
®
Track Lighting System 8277
Page 2 of 2 Lyteflood® 24 Compact Fluorescent
Footcandles on Wall
Track 2 Feet From Wall Single Unit Multiple Units
2'
60
0 1' 2' 3' 4' 5'
2'
1' 126 73 20 6 2 1 171 159 171 138 83 138 130 42 130
2' 96 71 33 12 4 1 171 169 171 123 107 123 106 69 106
3' 43 36 23 12 5 2 101 100 101 69 67 69 55 40 55
4' 22 20 14 9 5 3 63 63 63 43 43 44 33 32 33
5' 13 12 10 7 5 3 42 43 42 30 30 30 23 22 23
6' 8 8 6 5 4 3 30 30 30 21 22 21 17 17 17
7' 5 5 5 4 3 2 22 22 22 17 17 17 13 13 13
8' 4 4 3 3 2 2 17 17 17 13 13 13 10 11 10
Distance From Ceiling
9' 3 3 3 2 2 2 14 14 14 11 11 11 9 9 9
3'
4'
Track 3 Feet From Wall Single Unit Multiple Units
3'
45
0 1' 2' 3' 4' 5'
3'
4'
5'
1' 77 59 29 11 2 1 95 86 96 80 56 80 75 34 75
2' 68 57 36 19 9 5 113 109 113 90 80 90 80 58 80
3' 37 33 24 15 8 4 72 72 72 56 54 56 48 42 48
4' 24 22 17 12 8 4 53 53 53 41 40 41 34 32 34
5' 15 14 11 8 6 4 35 35 35 26 26 26 21 20 22
6' 9 9 8 6 5 3 27 28 27 21 21 21 17 17 18
7' 6 6 5 4 4 3 20 20 20 15 16 15 13 13 13
8' 4 4 4 3 3 2 14 15 14 11 11 11 9 9 9
Distance From Ceiling
9' 3 3 3 3 2 2 12 12 12 10 10 10 8 8 8
Track 4 Feet From Wall Single Unit Multiple Units
4'
45
0 1' 2' 3' 4' 5'
4'
5'
6'
1' 44 38 25 14 7 4 61 56 61 53 41 53 49 30 49
2' 42 37 26 15 8 4 57 53 57 48 40 48 44 29 44
3' 32 29 22 15 9 5 51 50 51 42 38 42 37 29 37
4' 21 19 16 12 8 5 40 40 40 33 32 33 28 26 28
5' 15 14 12 9 7 5 31 31 31 26 25 26 22 21 22
6' 11 10 9 7 6 4 25 25 25 20 20 20 17 17 17
7' 7 7 6 5 4 3 19 19 19 15 15 15 13 13 13
8' 6 5 5 4 4 3 16 16 16 13 13 13 11 11 11
Distance From Ceiling
9' 4 4 4 3 3 3 13 13 13 11 11 11 9 9 9
Values for multiple units are based on a minimum of five units.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0509
