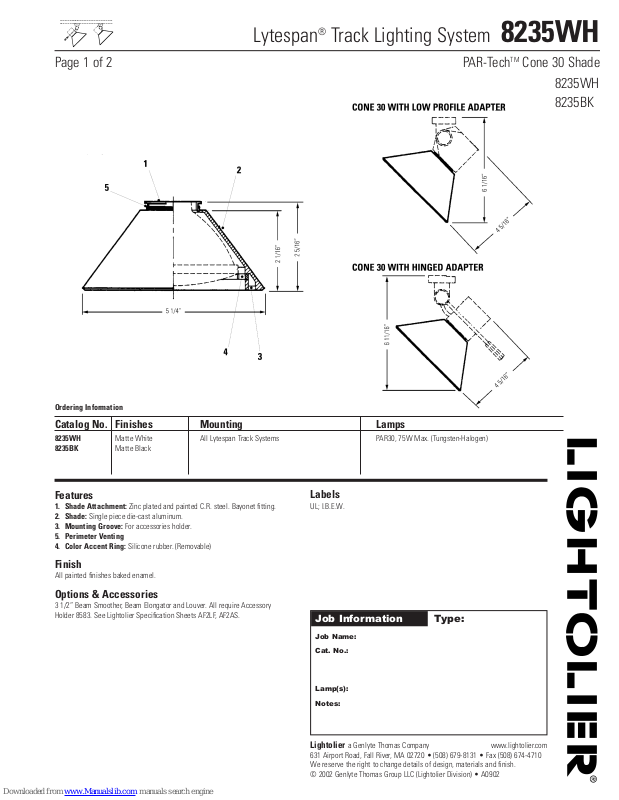

Lytespan
®
Track Lighting System 8235WH
Page 1 of 2 PAR-Tech
M
T
Cone 30 Shade
8235WH
8235BK
Ordering Information
Catalog No. Finishes Mounting Lamps
8235WH Matte White All Lytespan Track Systems PAR30, 75W Max. (Tungsten-Halogen)
8235BK Matte Black
Features
1. Shade Attachment: Zinc plated and painted C.R. steel. Bayonet fitting.
2. Shade: Single piece die-cast aluminum.
3. Mounting Groove: For accessories holder.
5. Perimeter Venting
4. Color Accent Ring: Silicone rubber. (Removable)
Labels
UL; I.B.E.W.
Finish
All painted finishes baked enamel.
Options & Accessories
3 1/2” Beam Smoother, Beam Elongator and Louver. All require Accessory
Holder 8583. See Lightolier Specification Sheets AF2LF, AF2AS.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Lytespan
17,000 3,000
50W PAR30 NSP
(Halogen-IR) 8°
8' 266 1.1' 1.1'
12' 118 1.7' 1.7'
16' 66 2.2' 2.2'
20' 43 2.8' 2.8'
7' 4.0' 225 1.3' 1.1'
10' 5.8' 110 1.9' 1.6'
13' 7.5' 65 2.4' 2.1'
16' 9.2' 43 3.0' 2.6'
5' 5.0' 240 1.4' 1.0'
7' 7.0' 123 2.0' 1.4'
9' 9.0' 74 2.5' 1.8'
11' 11.0' 50 3.1' 2.2'
3' 5.2' 236 1.7' 0.8'
4' 6.9' 133 2.3' 1.1'
5' 8.7' 85 2.8' 1.4'
6' 10.4' 59 3.4' 1.7'
7' 188 1.0' 1.0'
10' 92 1.4' 1.4'
13' 54 1.8' 1.8'
16' 36 2.2' 2.2'
6' 3.5' 156 1.1' 1.0'
9' 5.2' 74 1.7' 1.5'
12' 6.9' 41 2.2' 1.9'
15' 8.7' 27 2.8' 2.4'
4' 4.0' 203 1.1' 0.8'
6' 6.0' 90 1.7' 1.2'
8' 8.0' 51 2.2' 1.6'
10' 10.0' 33 2.8' 2.0'
2' 3.5' 288 1.1' 0.6'
3' 5.2' 128 1.7' 0.8'
4' 6.9' 72 2.3' 1.1'
5' 8.7' 46 2.8' 1.4'
9,200 2,000
50W PAR30
NSP (Halogen) 8°
4' 125 1.8' 1.8'
6' 58 2.7' 2.7'
8' 31 3.5' 3.5'
10' 20 4.4' 4.4'
3' 1.7' 144 1.8' 1.5'
5' 2.9' 52 3.0' 2.6'
7' 4.0' 27 4.2' 3.6'
9' 5.2' 16 5.4' 4.5'
3' 3.0' 79 2.8' 1.9'
4' 4.0' 44 3.7' 2.5'
5' 5.0' 28 4.7' 3.1'
6' 6.0' 20 5.6' 3.8'
1' 1.7' 250 2.1' 0.9'
2' 3.5' 63 4.2' 1.8'
3' 5.2' 28 6.2' 2.7'
4' 6.9' 16 8.3' 3.5'
2,000 2,000
50W PAR30
NFL (Halogen) 25°
DFC L W
DC FC L W DC FC L W DC FC L W
Beam Spread Beam Center Rated
50% Max. CP C.P. Candelas Life-Hrs
1,400 2,500
50 PAR30
FL (Halogen) 35°
3' 158 1.9' 1.9'
5' 56 3.2' 3.2'
7' 29 4.4' 4.4'
9' 17 5.7' 5.7'
3' 1.7' 101 2.6' 2.2'
5' 2.9' 36 4.3' 3.6'
7' 4.0' 19 6.1' 5.1'
9' 5.2' 11 7.8' 6.6'
2' 2.0' 124 2.8' 1.8'
3' 3.0' 55 4.2' 2.7'
4' 4.0' 31 5.6' 3.8'
5' 5.0' 20 7.0' 4.5'
1' 1.7' 175 3.6' 1.3'
2' 3.5' 44 7.2' 2.5'
3' 5.2' 19 10.8' 3.8'
4' 6.9' 11 14.4' 5.0'
6' 83 2.7' 2.7'
8' 47 3.5' 3.5'
10' 30 4.4' 4.4'
12' 21 5.3' 5.3'
5' 2.9' 78 3.0' 2.6'
7' 4.0' 40 4.2' 3.6'
9' 5.2' 24 5.4' 4.6'
11' 6.4' 16 6.6' 5.6'
3' 3.0' 118 2.8' 1.9'
5' 5.0' 42 4.7' 3.1'
7' 7.0' 22 6.5' 4.4'
9' 9.0' 12 8.4' 5.6'
2' 3.5' 94 4.2' 1.8'
3' 5.2' 42 6.2' 2.7'
4' 6.9' 23 8.3' 3.5'
5' 8.7' 15 10.4' 4.4'
3,000 3,000
50W PAR30
NFL (Halogen-IR) 25°
3' 178 2.0' 2.0'
5' 64 3.3' 3.3'
7' 33 4.7' 4.7'
9' 20 6.0' 6.0'
3' 1.7' 115 2.8' 2.3'
5' 2.9' 42 4.6' 3.9'
7' 4.0' 21 6.5' 5.4'
9' 5.2' 13 8.3' 7.0'
2' 2.0' 141 3.0' 1.9'
3' 3.0' 63 4.5' 2.8'
4' 4.0' 35 6.0' 3.8'
5' 5.0' 23 7.5' 4.7'
1' 1.7 200 4.0' 1.3'
2' 3.5' 50 8.1' 2.7'
3' 5.2' 22 12.1' 4.0'
4' 6.9' 13 18.1' 5.4'
1,600 3,000
50W PAR30
FL (Halogen-IR) 37°
3,200 2,500
75W PAR30
NFL (Halogen) 30°
6' 89 3.2' 3.2'
8' 50 4.3' 4.3'
10' 32 5.4' 5.4'
12' 22 6.4' 6.4'
5' 2.9' 83 3.7' 3.1'
7' 4.0' 42 5.1' 4.3'
9' 5.2' 26 6.6' 5.6'
11' 6.4' 17 8.1' 6.8'
3' 3.0' 126 3.5' 2.3'
5' 5.0' 45 5.8' 3.8'
7' 7.0' 23 8.1' 5.3'
9' 9.0' 14 10.4' 6.8'
2' 3.5' 100 5.5' 2.1'
3' 5.2' 44 8.2' 3.2'
4' 6.9' 25 10.9' 4.3'
5' 8.7' 16 13.7' 5.4'
8' 219 1.3' 1.3'
12' 97 1.9' 1.9'
16' 55 2.5' 2.5'
20' 35 3.1' 3.1'
7' 4.0' 186 1.5' 1.3'
10' 5.8' 91 2.1' 1.8'
13' 7.5' 54 2.7' 2.4'
16' 9.2' 36 3.4' 2.9'
5' 5.0' 198 1.6' 1.1'
7' 7.0' 101 2.2' 1.6'
9' 9.0' 61 2.9' 2.0'
11' 11.0' 41 3.5' 2.4'
3' 5.2' 184 1.9' 0.9'
4' 6.8' 109 2.6' 1.3'
5' 8.7' 70 3.2' 1.6'
6' 10.4' 49 3.8' 1.9'
14,000 2,500
75W PAR30
NSP (Halogen) 9°
4' 125 2.9' 2.9'
6' 56 4.4' 4.4'
8' 31 5.8' 5.8'
10' 20 7.3' 7.3'
3' 1.7' 144 3.0' 2.5'
5' 2.9' 52 5.1' 4.2'
7' 4.0' 27 7.1' 5.9'
9' 5.2' 16 9.1' 7.6'
3' 3.0' 79 5.0' 3.1'
4' 4.0' 44 6.7' 4.1'
5' 5.0' 28 8.4' 5.1'
6' 6.0' 20 10.1' 6.1'
1' 1.7' 250 4.8' 1.5'
2' 3.5' 63 9.7' 2.9'
3' 5.2' 28 14.5' 4.4'
4' 6.9' 16 19.3' 5.8'
2,000 2,500
75W PAR30
FL (Halogen) 40°
F
C
D
L
C
A
W
L
W
FC
D
F
C
L
C
D
A
Page 2 of 2 PAR-Tech
ighting Data
L
®
Track Lighting System 8235WH
M
T
Cone 30 Shade
Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE
Job Information Type:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
