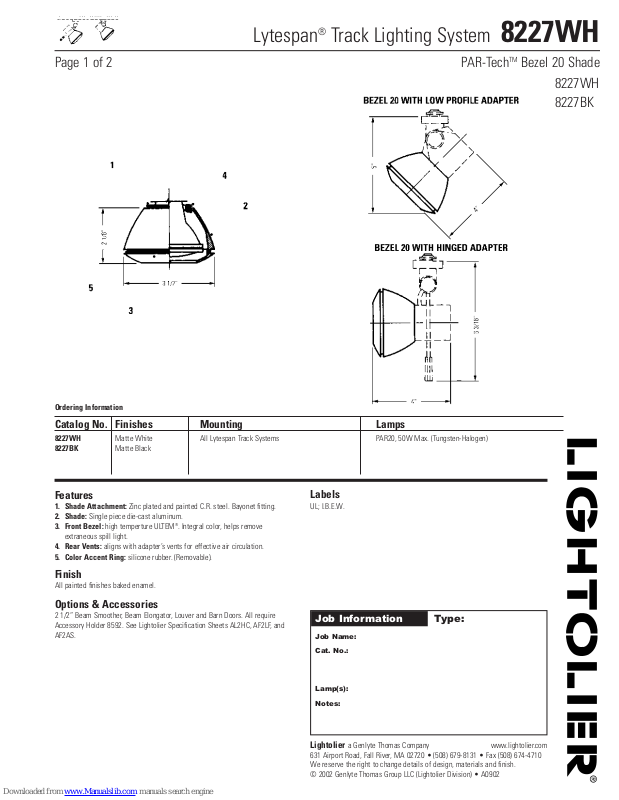

Lytespan
®
Track Lighting System 8227WH
Page 1 of 2 PAR-TechTMBezel 20 Shade
8227WH
8227BK
Ordering Information
Catalog No. Finishes Mounting Lamps
8227WH Matte White All Lytespan Track Systems PAR20, 50W Max. (Tungsten-Halogen)
8227BK Matte Black
Features
1. Shade Attachment: Zinc plated and painted C.R. steel. Bayonet fitting.
2. Shade: Single piece die-cast aluminum.
3. Front Bezel: high temperture ULTEM
extraneous spill light.
4. Rear Vents: aligns with adapter’s vents for effective air circulation.
5. Color Accent Ring: silicone rubber. (Removable).
®
. Integral color, helps remove
Labels
UL; I.B.E.W.
Finish
All painted finishes baked enamel.
Options & Accessories
2 1/2” Beam Smoother, Beam Elongator, Louver and Barn Doors. All require
Accessory Holder 8592. See Lightolier Specification Sheets AL2HC, AF2LF, and
AF2AS.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Lytespan
600 2,500
35W PAR20
WFL (Halogen) 40°
3' 67 2.2' 2.2'
5' 24 3.6' 3.6'
7' 12 5.1' 5.1'
9' 7 6.6' 6.6'
3' 1.7' 43 3.0' 2.5'
5' 2.8' 16 5.1' 4.2'
7' 4.0' 8 7.1' 5.9'
9' 5.2' 5 9.1' 7.6'
2' 2.0' 53 3.4' 2.1'
3' 3.0' 24 5.0' 3.1'
4' 4.0' 13 6.7' 4.1'
5' 5.0' 8 8.4' 5.1'
1' 1.7' 75 4.8' 1.5'
2' 3.5' 19 9.7' 2.9'
3' 5.2' 8 14.5' 4.4'
4' 6.9' 5 19.3' 5.8'
3' 100 1.6' 1.6'
5' 38 2.7' 2.7'
7' 18 3.8' 3.8'
9' 11 4.8' 4.8'
3' 1.7' 65 2.2' 1.6'
5' 2.9' 23 3.7' 3.1'
7' 4.0' 12 5.1' 4.3'
9' 5.2' 7 6.6' 5.6'
2' 2.0' 80 2.3' 1.5'
3' 3.0' 35 3.5' 2.3'
4' 4.0' 20 4.6' 3.0'
5' 5.0' 13 5.8' 3.8'
1' 1.7' 113 2.7' 1.1'
2' 3.5' 28 5.5' 2.1'
3' 5.2' 13 8.2' 3.2'
4' 6.9' 7 10.9' 4.3'
900 2,500
35W PAR20 FL
(Halogen) 30°
6' 167 0.8' 0.8'
8' 94 1.1' 1.1'
10' 60 1.4' 1.4'
12' 42 1.7' 1.7'
5' 2.9' 156 0.9' 0.8'
7' 4.0' 80 1.3' 1.1'
9' 5.2' 48 1.7' 1.5'
11' 6.4' 32 2.1' 1.8'
3' 3.0' 236 0.8' 0.6'
5' 5.0' 85 1.4' 1.0'
7' 7.0' 43 2.0' 1.4'
9' 9.0' 26 2.5' 1.8'
2' 3.5' 188 1.1' 0.6'
3' 5.2' 83 1.7' 0.8'
4' 6.9' 47 2.3' 1.1'
5' 8.7' 30 2.8' 1.4'
6,000 2,000
50W PAR20
NSP (Halogen) 8 °
DFC L W
DC FC L W DC FC L W DC FC L W
Beam Spread Beam Center Rated
50% Max. CP C.P. Candelas Life-Hrs
1,850 2,000
50W PAR20
NFL (Halogen) 27°
4' 116 1.9' 1.9'
6' 51 2.9' 2.9'
8' 29 3.8' 3.8'
10' 19 4.8' 4.8'
3' 1.7' 134 2.0' 1.7'
5' 2.9' 48 3.3' 2.8'
7' 4.0' 25 4.6' 3.9'
9' 5.2' 15 5.9' 5.0'
3' 3.0' 73 3.1' 2.0'
4' 4.0' 41 4.1' 2.7'
5' 5.0' 26 5.1' 3.4'
6' 6.0' 18 6.1' 4.1'
1' 1.7' 231 2.3' 1.0'
2' 3.5' 58 4.8' 1.9'
3' 5.2' 26 7.0' 2.9'
4' 6.9' 14 9.3' 3.8'
6' 89 1.6' 1.6'
8' 50 2.1' 2.1'
10' 32 2.8' 2.8'
12' 22 3.2' 3.2'
5' 2.9' 83 1.8' 1.5'
7' 4.0' 42 2.5' 2.1'
9' 5.2' 26 3.2' 2.7'
11' 6.4' 17 3.9' 3.3'
3' 3.0' 126 1.6' 1.1'
5' 5.0' 45 2.7' 1.9'
7' 7.0' 23 3.8' 2.6'
9' 9.0' 14 4.8' 3.4'
2' 3.5' 100 2.2' 1.1'
3' 5.2' 44 3.3' 1.6'
4' 6.9' 25 4.4' 2.1'
5' 8.7' 16 5.6' 2.6'
3,200 2,000
50W PAR20
SP (Halogen) 15°
6' 83 0.8' 0.8'
8' 47 1.1' 1.1'
10' 30 1.4' 1.4'
12' 21 1.7' 1.7'
5' 2.9' 78 0.9' 0.8'
7' 4.0' 40 1.3' 1.1'
9' 5.2' 24 1.7' 1.5'
11' 6.4' 16 2.1' 1.8'
3' 3.0' 118 0.8' 0.6'
5' 5.0' 42 1.4' 1.0'
7' 7.0' 22 2.0' 1.4'
9' 9.0' 13 2.5' 1.8'
2' 3.5' 94 1.1' 0.6'
3' 5.2' 42 1.7' 0.8'
4' 6.9' 23 2.3' 1.1'
5' 8.7' 15 2.8' 1.4'
3,000 2,500
35W P AR20 NSP
(Halogen) 8°
FC
D
L
C
A
W
L
W
FC
D
FC
L
C
D
A
®
Track Lighting System 8227WH
Page 2 of 2 PAR-TechTMBezel 20 Shade
Lighting Data
Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE
