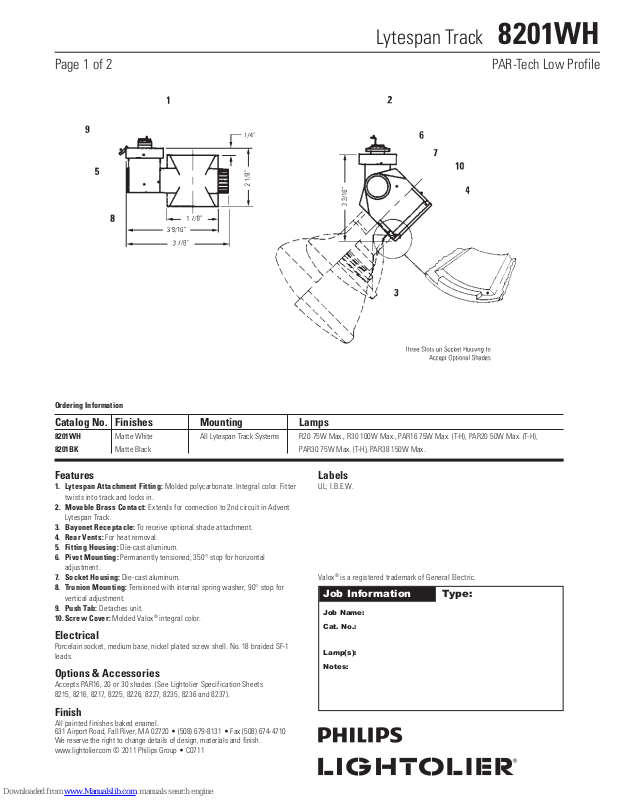

Lytespan Track 8201WH
Page 1 of 2 PAR-Tech Low Profile
Ordering Information
Catalog No. Finishes Mounting Lamps
8201WH Matte White All Lytespan Track Systems R20 75W Max., R30 100W Max., PAR16 75W Max. (T-H), PAR20 50W Max. (T-H),
8201BK Matte Black PAR30 75W Max. (T-H), PAR38 150W Max.
Features
1. Lytespan Attachment Fitting: Molded polycarbonate. Integral color. Fitter
twists into track and locks in.
2. Movable Brass Contact: Extends for connection to 2nd circuit in Advent
Lytespan Tra ck.
3. Bayonet Receptacle: To receive optional shade attachment.
4. Rear Vents: For heat removal.
5. Fitting Housing: Die-cast aluminum.
6. Pivot Mounting: Permanently tensioned; 350° stop for horizontal
adjustment.
7. Socket Housing: Die-cast aluminum.
8. Trunion Mounting: Tensioned with internal spring washer, 90° stop for
vertical adjustment.
9. Push Tab: Detaches unit.
10. Screw Cover: Molded Valox
®
integral color.
Labels
UL; I. B.E.W.
Valox® is a registered trademark of General Electric.
Job Information Type:
Job Name:
Cat. No.:
Electrical
Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1
leads.
Lamp(s):
Notes:
Options & Accessories
Accepts PAR16, 20 or 30 shades. (See Lightolier Specification Sheets
8215, 8216, 8217, 8225, 8226, 8227, 8235, 8236 and 8237).
Finish
All painted finishes baked enamel.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
Lytespan Track 8201WH
Page 2 of 2 PAR-Tech Low Profile
Lighting Data
0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical
Aiming Angle
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE
Beam Spread Beam Center Rated
50% Max. CP C.P. Candelas Life-Hrs
60W PAR16
NSP (Halogen) 10ϒ
60W PAR16
NFL (Halogen) 30ϒ
50W PAR20
NSP (Halogen) 8ϒ
50W PAR20
SP (Halogen) 15ϒ
50W PAR20
NFL (Halogen) 27ϒ
50W PAR30
NSP (HIR) 8ϒ
75W PAR30
NSP (Halogen) 9ϒ
75W PAR30
NFL (Halogen) 30ϒ
75W PAR30
FL (Halogen) 40ϒ
90W PAR38
NSP (Halogen) 9ϒ
90W PAR38
SP (Halogen) 12ϒ
90W PAR38
FL (Halogen) 28ϒ
5,000 2,000
1,300 2,000
6,000 2,000
3,200 2,000
1,850 2,000
17,000 3,000
14,000 2,500
3,200 2,500
2,000 2,500
19,500 2,500
14,500 2,500
4,500 2,500
L
DFCLW
6' 139 1.0' 1.0'
8' 78 1.4' 1.4'
10' 50 1.7' 1.7'
12' 35 2.1' 2.1'
3' 144 1.6' 1.6'
5' 52 2.7' 2.7'
7' 27 3.8' 3.8'
9' 16 4.8' 4.8'
6' 167 0.8' 0.8'
8' 94 1.1' 1.1'
10' 60 1.4' 1.4'
12' 42 1.7' 1.7'
6' 89 1.6' 1.6'
8' 50 2.1' 2.1'
10' 32 2.6' 2.6'
12' 22 3.2' 3.2'
4' 116 1.9' 1.9'
6' 51 2.9' 2.9'
8' 29 3.8' 3.8'
10' 19 4.8' 4.8'
8' 266 1.1' 1.1'
12' 118 1.7' 1.7'
16' 66 2.2' 2.2'
20' 43 2.8' 2.8'
8' 219 1.3' 1.3'
12' 97 1.9' 1.9'
16' 55 2.5' 2.5'
20' 35 3.1' 3.1'
6' 89 3.2' 3.2'
8' 50 4.3' 4.3'
10' 32 5.4' 5.4'
12' 22 6.4' 6.4'
4' 125 2.9' 2.9'
6' 56 4.4' 4.4'
8' 31 5.8' 5.8'
10' 20 7.3' 7.3'
10' 195 1.6' 1.6'
15' 87 2.4' 2.4'
20' 49 3.1' 3.1'
25' 31 3.9' 3.9'
8' 227 1.7' 1.7'
12' 101 2.5' 2.5'
16' 57 3.4' 3.4'
20' 36 4.2' 4.2'
6' 125 3.0' 3.0'
8' 70 4.0' 4.0'
10' 45 5.0' 5.0'
12' 31 6.0' 6.0'
D
FC
W
FC
L
DC FC LW DC FC LW DC FC LW
5' 2.9' 130 1.2' 1.0'
7' 4.0' 66 1.6' 1.4'
9' 5.2' 40 2.1' 1.8'
11' 6.4' 27 2.6' 2.2'
3' 1.7' 94 2.2' 1.9'
5' 2.9' 34 3.7' 3.1'
7' 4.0' 17 5.1' 4.3'
9' 5.2' 10 6.6' 5.6'
5' 2.9' 156 0.9' 0.8'
7' 4.0' 80 1.3' 1.1'
9' 5.2' 48 1.7' 1.5'
11' 6.4' 32 2.1' 1.8'
5' 2.9' 83 1.8' 1.5'
7' 4.0' 42 2.5' 2.1'
9' 5.2' 28 3.2' 2.7'
11' 6.4' 17 3.9' 3.3'
3' 1.7' 134 2.0' 1.7'
5' 2.9' 48 3.3' 2.8'
7' 4.0' 25 4.6' 3.9'
9' 5.2' 15 5.9' 5.0'
7' 4.0' 225 1.3' 1.1'
10' 5.8' 110 1.9' 1.6'
13' 7.5' 65 2.4' 2.1'
16' 9.2' 43 3.0' 2.6'
7' 4.0' 186 1.5' 1.3'
10' 5.8' 91 2.1' 1.8'
13' 7.5' 54 2.7' 2.4'
16' 9.2' 36 3.4' 2.9'
5' 2.9' 83 3.7' 3.1'
7' 4.0' 42 5.1' 4.3'
9' 5.2' 26 6.8' 5.6'
11' 6.4' 17 8.1' 6.8'
3' 1.7' 144 3.0' 2.5'
5' 2.9' 52 5.1' 4.2'
7' 4.0' 27 7.1' 5.9'
9' 5.2' 16 9.1' 7.6'
8' 4.6' 198 1.7' 1.5'
12' 6.9' 88 2.5' 2.2'
16' 9.2' 49 3.4' 2.9'
20' 11.5' 32 4.2' 3.6'
7' 4.0' 192 2.0' 1.7'
10' 5.8' 94 2.8' 2.4'
13' 7.5' 58 3.7' 3.2'
16' 9.2' 37 4.5' 3.9'
5' 2.9' 117 3.4' 2.9'
7' 4.0' 60 4.8' 4.0'
9' 5.2' 36 6.1' 5.2'
11' 6.4' 24 7.5' 6.3'
Job Information Type:
D
A
W
C
3' 3.0' 196 1.1' 0.7'
5' 5.0' 71 1.8' 1.2'
7' 7.0' 36 2.5' 1.7'
9' 9.0' 22 3.2' 2.2'
2' 2.0' 115 2.3' 1.5'
3' 3.0' 51 3.5' 2.3'
4' 4.0' 29 4.6' 3.0'
5' 5.0' 18 5.8' 3.8'
3' 3.0' 236 0.8' 0.6'
5' 5.0' 85 1.4' 1.0'
7' 7.0' 43 2.0' 1.4'
9' 9.0' 26 2.5' 1.8'
3' 3.0' 126 1.6' 1.1'
5' 5.0' 45 2.7' 1.9'
7' 7.0' 23 3.8' 2.6'
9' 9.0' 14 4.8' 3.4'
3' 3.0' 73 3.1' 2.0'
4' 4.0' 41 4.1' 2.7'
5' 5.0' 26 5.1' 3.4'
6' 6.0' 18 6.1' 4.1'
5' 5.0' 240 1.4' 1.0'
7' 7.0' 123 2.0' 1.4'
9' 9.0' 74 2.5' 1.8'
11' 11.0' 50 3.1' 2.2'
5' 5.0' 198 1.6' 1.1'
7' 7.0' 101 2.2' 1.6'
9' 9.0' 61 2.9' 2.0'
11' 11.0' 41 3.5' 2.4'
3' 3.0' 126 3.5' 2.3'
5' 5.0' 45 5.8' 3.8'
7' 7.0' 23 8.1' 5.3'
9' 9.0' 14 10.4' 6.8'
3' 3.0' 79 5.0' 3.1'
4' 4.0' 44 6.7' 4.1'
5' 5.0' 28 8.4' 5.1'
6' 6.0' 20 10.1' 8.2'
6' 6.0' 192 1.9' 1.3'
9' 9.0' 85 2.9' 2.0'
12' 12.0' 48 3.8' 2.7'
15' 15.0' 31 4.8' 3.3'
5' 5.0' 205 2.1' 1.5'
7' 7.0' 105 3.0' 2.1'
9' 9.0' 63 3.8' 2.7'
11' 11.0' 42 4.7' 3.3'
3' 3.0' 177 3.2' 2.1'
5' 5.0' 64 5.3' 3.5'
7' 7.0' 32 7.4' 4.9'
9' 9.0' 20 9.6' 6.3'
2' 3.5' 156 1.4' 0.7'
3' 5.2' 69 2.1' 1.0'
4' 6.9' 39 2.9' 1.4'
5' 8.7' 25 3.6' 1.7'
1' 1.7' 163 2.7' 1.1'
2' 3.5' 41 5.5' 2.1'
3' 5.2' 18 8.2' 3.2'
4' 6.9' 10 10.9' 4.3'
2' 3.5' 188 1.1' 0.6'
3' 5.2' 83 1.7' 0.8'
4' 6.9' 47 2.3' 1.1'
5' 8.7' 30 2.8' 1.4'
1' 3.5' 100 2.2' 1.1'
2' 5.2' 44 3.3' 1.6'
3' 6.9' 25 4.4' 2.1'
4' 8.7' 18 5.6' 2.6'
1' 1.7' 231 2.3' 1.0'
2' 3.5' 58 4.6' 1.9'
3' 5.2' 26 7.0' 2.9'
4' 6.9' 14 9.3' 3.8'
3' 5.2' 238 1.7' 0.8'
4' 6.9' 133 2.3' 1.1'
5' 8.7' 85 2.8' 1.4'
6' 10.4' 59 3.4' 1.7'
3' 5.2' 194 1.9' 0.9'
4' 6.9' 109 2.6' 1.3'
5' 8.7' 70 3.2' 1.6'
6' 10.4' 49 3.8' 1.9'
2' 3.5' 100 5.5' 2.1'
3' 5.2' 44 8.2' 3.2'
4' 6.9' 25 10.9' 4.3'
5' 8.7' 16 13.7' 5.4'
1' 1.7' 250 4.8' 1.5'
2' 3.5' 63 9.7' 2.9'
3' 5.2' 28 14.5' 4.4'
4' 6.9' 16 19.3' 5.8'
4' 6.9' 152 2.6' 1.3'
6' 10.4' 68 3.8' 1.9'
8' 13.9' 38 5.1' 2.5'
10' 17.3' 24 6.4' 3.1'
3' 5.2' 201 2.6' 1.3'
4' 6.9' 113 3.5' 1.7'
5' 8.7' 73 4.3' 2.1'
6' 10.4' 50 5.2' 2.5'
2' 3.5' 141 4.9' 2.0'
3' 5.2' 63 7.4' 3.0'
4' 8.9' 35 9.8' 4.0'
5' 8.7' 23 12.3' 5.0'
D
A
C
FC
L
