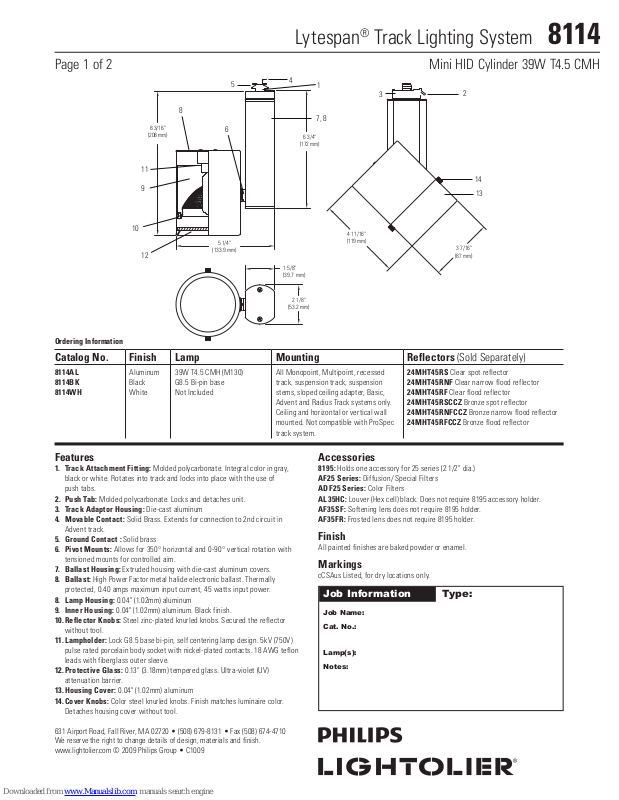

Lytespan
®
Track Lighting System 8114
Page 1 of 2 Mini HID Cylinder 39W T4.5 CMH
4
6 3/4"
(172 mm)
1
7, 8
3
2
8 3/16"
(208 mm)
5
8
6
11
9
10
5 1/4"
12
Ordering Information
(133.9 mm)
1 5/8"
(39.7 mm)
2 1/8"
(53.2 mm)
Catalog No. Finish Lamp Mounting
8114AL
8114BK
8114WH
Aluminum
Black
White
39W T4.5 CMH (M130)
G8.5 Bi-pin base
Not Included
All Monopoint, Multipoint, recessed
track, suspension track, suspension
stems, sloped ceiling adapter, Basic,
Advent and Radius Track systems only.
Ceiling and horizontal or vertical wall
mounted. Not compatible with ProSpec
track system.
Features

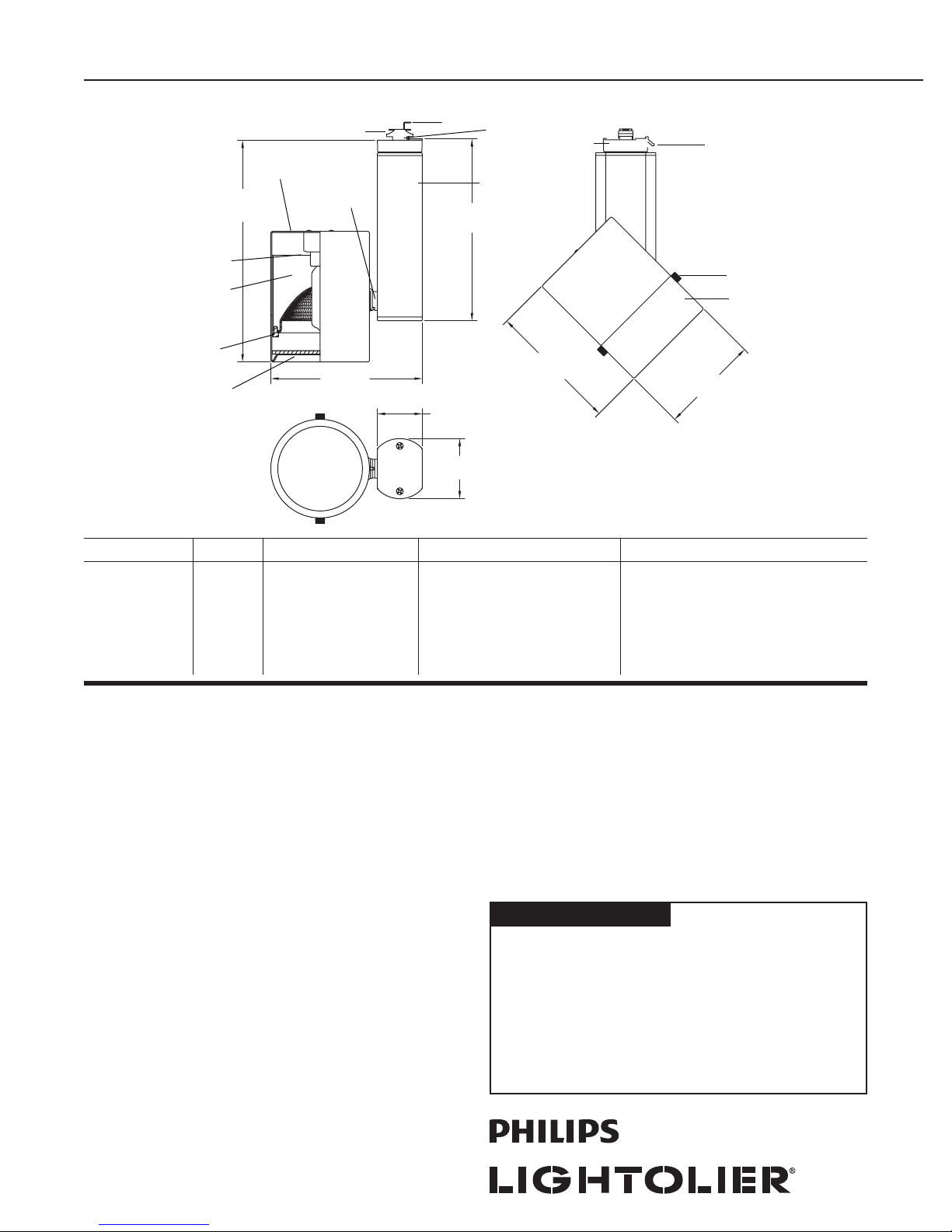

1. Track At tachment Fitting: Molded polycarbonate. Integral color in gray,
black or white. Rotates into track and locks into place with the use of
push tabs.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum
4. Movable Contact: Solid Brass. Extends for connection to 2nd circuit in
Advent track.
5. Ground Contact : Solid brass
6. Pivot Mou nts: Allows for 350° horizontal and 0-90° vertical rotation with
tensioned mounts for controlled aim.
7. Ballast Housing: Extruded housing with die-cast aluminum covers.
8. Ballast: High Power Factor metal halide electronic ballast. Thermally
protected, 0.40 amps maximum input current, 45 watts input power.
8. Lamp Housing: 0.04" (1.02mm) aluminum
9. Inner Housing: 0.04" (1.02mm) aluminum. Black finish.
10. Reflector Knobs: Steel zinc-plated knurled knobs. Secured the reflector
without tool.
11. Lampholder: Lock G8.5 base bi-pin, self centering lamp design. 5kV (750V)
pulse rated porcelain body socket with nickel-plated contacts. 18 AWG teflon
leads with fiberglass outer sleeve.
12. Protective G lass: 0.13" (3.18mm) tempered glass. Ultra-violet (UV)
attenuation barrier.
13. Housing Cover: 0.04" (1.02mm) aluminum
14. Cover Knobs: Color steel knurled knobs. Finish matches luminaire color.
Detaches housing cover without tool.
14
13
4 11/16"
(119 mm)
3 7/16"
(87 mm)
Reflectors (Sold Separately)
24MHT45RS Clear spot reflector
24MHT45RNF Clear narrow flood reflector
24MHT45RF Clear flood reflector
24MHT45RSCCZ Bronze spot reflector
24MHT45RNFCC Z Bronze narrow flood reflector
24MHT45RFCCZ Bronze flood reflector
Accessories
8195: Holds one accessory for 25 series (2 1/2" dia.)
AF25 Series: Dif fusion/ Special Filters
ADF25 Series: Color Filters
AL35HC: Louver (Hex cell) black. Does not require 8195 accessor y holder.
AF35SF: Softening lens does not require 8195 holder.
AF35FR: Frosted lens does not require 8195 holder.
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Listed, for dr y locations only.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • C1009
Lytespan
®
Track Lighting System 8114
Page 2 of 2 Mini HID Cylinder 39W T4.5 CMH
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
29706 10000
24MHT45RS
39W T4, SPOT 9°
10839 10000
24MHT45RNF
39W T4, NFL 18°
3639 10000
24MHT45RF
39W T4, FL 38°
CBCP
Rated
D FC L W D C FC L W D C FC L W D C FC L W
14 152 2.2 2.2
16 116 2.5 2.5
18 92 2.8 2.8
20 74 3.1 3.1
8 169 2.5 2.5
10 10 8 3.2 3.2
12 75 3.8 3.8
14 55 4.4 4.4
6 101 4.1 4.1
7 74 4.8 4.8
8 57 5.5 5 .5
9 45 6.2 6.2
12 6.9 134 2.5 2.2
14 8.1 98 2. 9 2.5
16 9.2 75 3.4 2.9
18 10.4 60 3.8 3. 3
8 4.6 110 3.4 2.9
10 5.8 70 4.3 3.7
12 6.9 49 5.1 4.4
14 8.1 36 6.0 5.1
6 3.5 66 5.7 4.8
7 4.0 48 6.7 5.6
8 4.6 37 7.6 6.4
9 5.2 29 8 .6 7.2
4 6.9 232 2.6 1.3
5 8.7 149 3 .2 1.6
6 10.4 103 3. 8 1.9
7 12.1 76 4.5 2.2
3 5.2 151 4.1 1.9
4 6.9 85 5 .5 2.5
5 8.7 54 6.9 3.2
6 10.4 38 8.2 3.8
2 3.5 114 8. 6 2.8
3 5.2 51 12.8 4.1
4 6.9 28 17.1 5.5
5 8.7 18 21.4 6.9
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reflector "warms" the beam to 2700K.
6 6.0 292 1.9 1.3
7 7.0 214 2.2 1.6
8 8.0 164 2.5 1.8
9 9.0 130 2.9 2.0
3 3.0 426 1.9 1.3
4 4.0 240 2.6 1.8
5 5.0 153 3.2 2.2
6 6.0 106 3.9 2.7
3 3.0 143 4.7 2.9
4 4.0 8 0 6.3 3.9
5 5.0 51 7.8 4.9
6 6.0 36 9 .4 5.8
