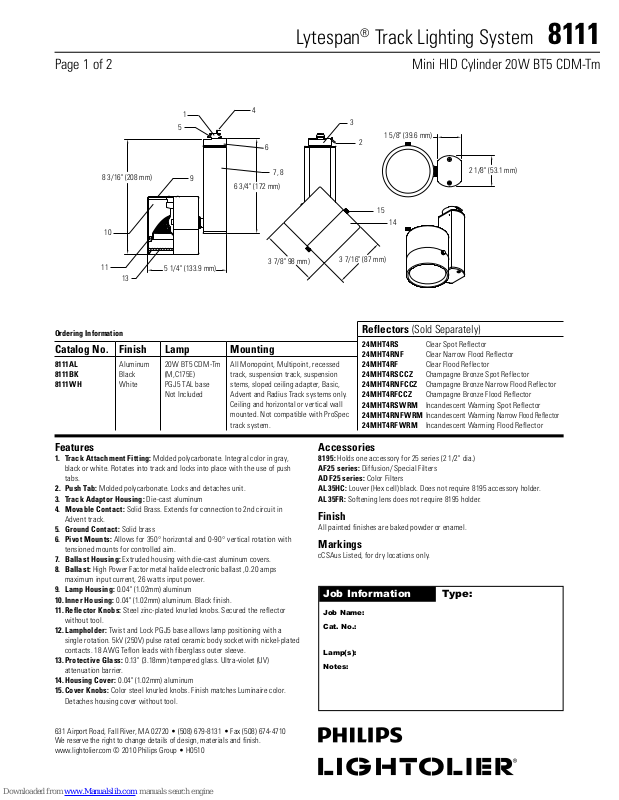

Lytespan
®
Track Lighting System 8111
Page 1 of 2 Mini HID Cylinder 20W BT5 CDM-Tm
4
6
6 3/4" (172 mm)
8 3/16" (208 mm)
10
11
Ordering Information
1
5
9
5 1/4" (133.9 mm)
13
Catalog No. Finish Lamp Mounting
8111AL
8111BK
8111WH
Aluminum
Black
White
20W BT5 CDM-Tm
(M,C175E)
PGJ5 TAL base
Not Included
All Monopoint, Multipoint, recessed
track, suspension track, suspension
stems, sloped ceiling adapter, Basic,
Advent and Radius Track systems only.
Ceiling and horizontal or vertical wall
mounted. Not compatible with ProSpec
track system.
7, 8
3 7/8" 98 mm)
3
1 5/8" (39.6 mm)
2
2 1/8" (53.1 mm)
15
14
3 7/16" (87 mm)
Reflectors (Sold Separately)
24MHT4RS Clear Spot Reflector
24MHT4RNF Clear Narrow Flood Reflector
24MHT4RF Clear Flood Reflector
24MHT4RSCCZ Champagne Bronze Spot Reflector
24MHT4RNFCCZ Champagne Bronze Narrow Flood Reflector
24MHT4RFCCZ Champagne Bronze Flood Reflector
24MHT4RSWRM Incandescent Warming Spot Reflector
24MHT4RNFWRM Incandescent Warming
24MHT4RFWRM Incandescent Warming Flood Reflector
Narrow Flood Reflector
Features
1. Track At tachment Fitting: Molded polycarbonate. Integral color in gray,
black or white. Rotates into track and locks into place with the use of push
tabs.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum
4. Movable Contact: Solid Brass. Extends for connection to 2nd circuit in
Advent track.
5. Ground Contact: Solid brass
6. Pivot Mounts: Allows for 350° horizontal and 0-90° vertical rotation with
tensioned mounts for controlled aim.
7. Ballast Housing: Extruded housing with die-cast aluminum covers.
8. Ballast: High Power Factor metal halide electronic ballast ,0.20 amps
maximum input current, 26 watts input power.
9. Lamp Housing: 0.04" (1.02mm) aluminum
10. Inner Housing: 0.04" (1.02mm) aluminum. Black finish.
11. Reflector Knobs: Steel zinc-plated knurled knobs. Secured the reflector
without tool.
12. Lampholder: Twist and Lock PGJ5 base allows lamp positioning with a
single rotation. 5kV (250V) pulse rated ceramic body socket with nickel-plated
contacts. 18 AWG Teflon leads with fiberglass outer sleeve.
13. Protective Glass: 0.13" (3.18mm) tempered glass. Ultra-violet (UV)
attenuation barrier.
14. Housing Cover: 0.04" (1.02mm) aluminum
15. Cover Knobs: Color steel knurled knobs. Finish matches Luminaire color.
Detaches housing cover without tool.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • H0510
Accessories
8195: Holds one accessory for 25 series (2 1/2" dia.)
AF25 series: Diffusion/ Special Filters
ADF25 series: Color Filters
AL35HC: Louver (Hex cell) black. Does not require 8195 accessory holder.
AL35FR: Softening lens does not require 8195 holder.
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Listed, for dr y locations only.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lytespan
®
Track Lighting System 8111
Page 2 of 2 Mini HID Cylinder 20W BT5 CDM-Tm
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
20W BT-5
10°
24MHT4RS
CBCP
17240
Rated
12,000
D FC L W
10 172 1.7 1.7
12 120 2.1 2.1
14 88 2.4 2.4
16 67 2.8 2.8
D C FC L W
10 5.8 112 2.3 2.0
12 6.9 78 2.8 2.4
14 8.1 57 3.3 2.8
16 9.2 44 3.7 3.2
D C FC L W
4 6.9 135 2.9 1.4
5 8.7 86 3.6 1.7
6 10.4 60 4.3 2.1
7 12.1 44 5.0 2.4
D C FC L W
5 5.0 244 1.8 1.2
6 6.0 169 2.1 1.5
7 7.0 124 2.5 1.7
8 8.0 95 2.8 2.0
D FC L W
6 150 2.3 2.3
5408 12,000
20W BT-5 , 24MHT4RNF
22°
20W BT-5 , 24MHT4RF
43°
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64.
For Incandescent Warm (WRM), multiply FC values by 0.85.
1844 12,000
8 85 3.1 3.1
10 54 3.9 3.9
12 38 4.7 4.7
D FC L W
5 74 3.9 3.9
6 51 4.7 4.7
7 38 5.5 5.5
8 29 6.3 6.3
D C FC L W
6 3.5 98 3.1 2.7
8 4.6 55 4.2 3.6
10 5.8 35 5.2 4.5
12 6.9 24 6.3 5.4
D C FC L W
5 2.9 48 5.5 4.5
6 3.5 33 6.6 5.5
7 4.0 24 7.8 6.4
8 4.6 19 8.9 7.3
D C FC L W
2 3.5 169 3.5 1.6
3 5.2 75 5.3 2.3
4 6.9 42 7.0 3.1
5 8.7 27 8.8 3.9
D C FC L W
2 3.5 58 11.8 3.2
3 5.2 26 17.7 4.7
4 6.9 14 23.6 6.3
5 8.7 9 29.5 7.9
D C FC L W
3 3.0 212 2.4 1.6
4 4.0 120 3.2 2.2
5 5.0 76 4.0 2.7
6 6.0 53 4.8 3.3
D C FC L W
2 2.0 163 3.7 2.2
3 3.0 72 5.6 3.3
4 4.0 41 7.5 4.5
5 5.0 26 9.3 5.6
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • H0510
