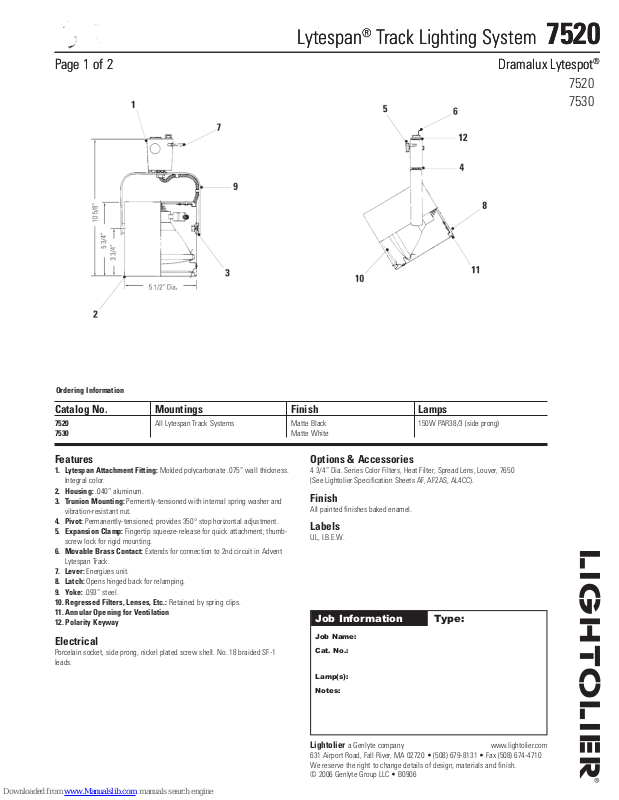

Page 1 of 2 Dramalux Lytespot
Page 1 of 2 Dramalux Lytespot
®
Track Lighting System 7520
Track Lighting System 7520
7520
7530
®
®
Ordering Information
Catalog No. Mountings Finish Lamps
7520 All Lytespan Track Systems Matte Black 150W PAR38/3 (side prong)
7530 Matte White
Features
1. Lytespan Attachment Fitting: Molded polycarbonate .075” wall thickness.
Integral color.
2. Housing: .040” aluminum.
3. Trunion Mounting: Permently-tensioned with internal spring washer and
vibration-resistant nut.
4. Pivot: Permanently-tensioned; provides 350° stop horizontal adjustment.
5. Expansion Clamp: Fingertip squeeze-release for quick attachment; thumb-
screw lock for rigid mounting.
6. Movable Brass Contact: Extends for connection to 2nd circuit in Advent
Lytespan Track.
7. Lever: Energizes unit.
8. Latch: Opens hinged back for relamping.
9. Yoke: .093” steel.
10. Regressed Filters, Lenses, Etc.: Retained by spring clips.
11. Annular Opening for Ventilation
12. Polarity Keyway
Electrical
Porcelain socket, side prong, nickel plated screw shell. No. 18 braided SF-1
leads.
Options & Accessories
4 3/4” Dia. Series Color Filters, Heat Filter, Spread Lens, Louver, 7650
(See Lightolier Specification Sheets AF, AF2AS, AL4CC).
Finish
All painted finishes baked enamel.
Labels
UL, I.B.E.W.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • B0906
Lytespan
®
Track Lighting System 7520
Page 2 of 2 Dramalux Lytespot
Lighting Data
Aiming Angle
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where
the candle power drops to 50% of the
manimum. FC are the initital footcandles
at the center of the beam.
Lamp
0° 30°, 45° or 60° Horizontal 30°, 45° or 60° Vertical
A
D
L
FC
W
0° AIMING ANGLE A=30° AIMING ANGLE A=45° AIMING ANGLE A=60° AIMING ANGLE
FC
L
D
A
W
C
D
C
FC
L
7520
7530
®
