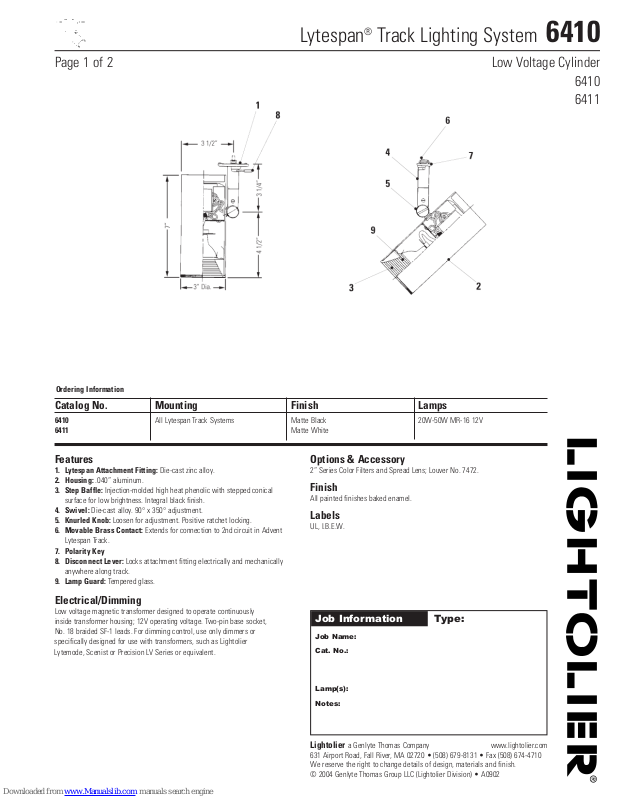

Lightolier Lytespan 6410, Lytespan 6411 Specification

Lytespan

®

Track Lighting System 6410

Page 1 of 2 Low Voltage Cylinder

6410
6411

Ordering Information

Catalog No. Mounting Finish Lamps

6410 All Lytespan Track Systems Matte Black 20W-50W MR-16 12V
6411 Matte White

Features

1. Lytespan Attachment Fitting: Die-cast zinc alloy.

2. Housing: .040” aluminum.

3. Step Baffle: Injection-molded high heat phenolic with stepped conical

surface for low brightness. Integral black finish.

4. Swivel: Die-cast alloy. 90° x 350° adjustment.

5. Knurled Knob: Loosen for adjustment. Positive ratchet locking.

6. Movable Brass Contact: Extends for connection to 2nd circuit in Advent

Lytespan Track.

7. Polarity Key

8. Disconnect Lever: Locks attachment fitting electrically and mechanically

anywhere along track.

9. Lamp Guard: Tempered glass.

Options & Accessory

2” Series Color Filters and Spread Lens; Louver No. 7472.

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Electrical/Dimming

Low voltage magnetic transformer designed to operate continuously
inside transformer housing; 12V operating voltage. Two-pin base socket,
No. 18 braided SF-1 leads. For dimming control, use only dimmers or
specifically designed for use with transformers, such as Lightolier
Lytemode, Scenist or Precision LV Series or equivalent.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Lytespan

FC

D

L

C

A

W

L

W

FC

D

FC

L

C

D

A

®

Track Lighting System 6410

Page 2 of 2 Low Voltage Cylinder

Lighting Data
Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical

L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles

L and W are the outer points where the candle

power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.

LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE
