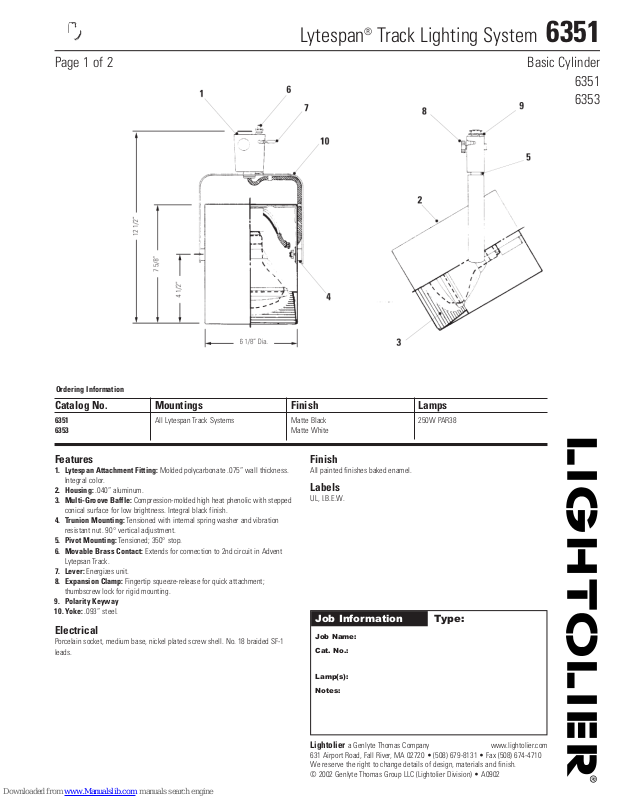

Lytespan
®
Track Lighting System 6351
Page 1 of 2 Basic Cylinder
6351
6353
Ordering Information
Catalog No. Mountings Finish Lamps
6351 All Lytespan Track Systems Matte Black 250W PAR38
6353 Matte White
Features
1. Lytespan Attachment Fitting: Molded polycarbonate .075” wall thickness.
Integral color.
2. Housing: .040” aluminum.
3. Multi-Groove Baffle: Compression-molded high heat phenolic with stepped
conical surface for low brightness. Integral black finish.
4. Trunion Mounting: Tensioned with internal spring washer and vibration
resistant nut. 90° vertical adjustment.
5. Pivot Mounting: Tensioned; 350° stop.
6. Movable Brass Contact: Extends for connection to 2nd circuit in Advent
Lytepsan Track.
7. Lever: Energizes unit.
8. Expansion Clamp: Fingertip squeeze-release for quick attachment;
thumbscrew lock for rigid mounting.
9. Polarity Keyway
10. Yoke: .093” steel.
Electrical
Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1
leads.
Finish
All painted finishes baked enamel.
Labels
UL, I.B.E.W.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Lytespan
FC
D
L
C
A
W
L
W
FC
D
FC
L
C
D
A
®
Track Lighting System 6351
Page 2 of 2 Basic Cylinder
Lighting Data
Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE
Job Information Type:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
