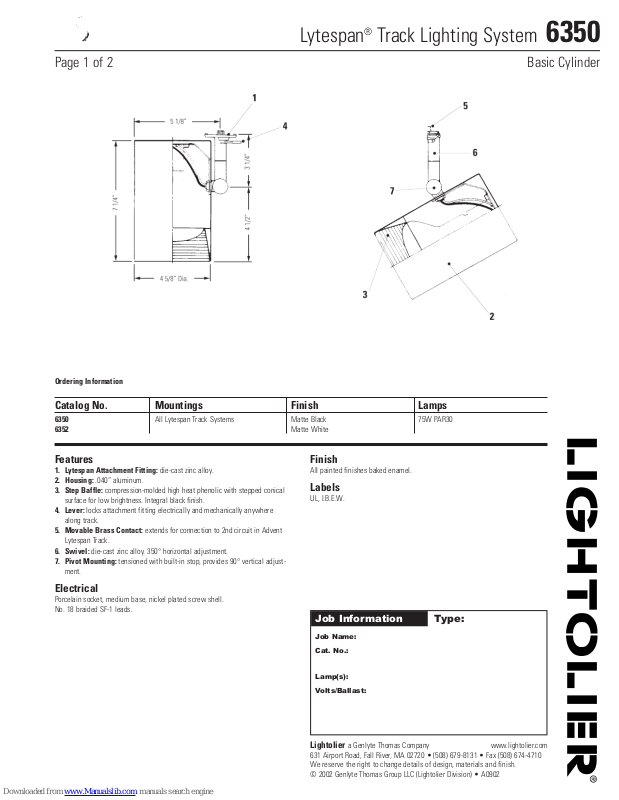

Lightolier Lytespan 6350 Specification

Lytespan

®

Track Lighting System 6350

Page 1 of 2 Basic Cylinder

Ordering Information

Catalog No. Mountings Finish Lamps

6350 All Lytespan Track Systems Matte Black 75W PAR30
6352 Matte White

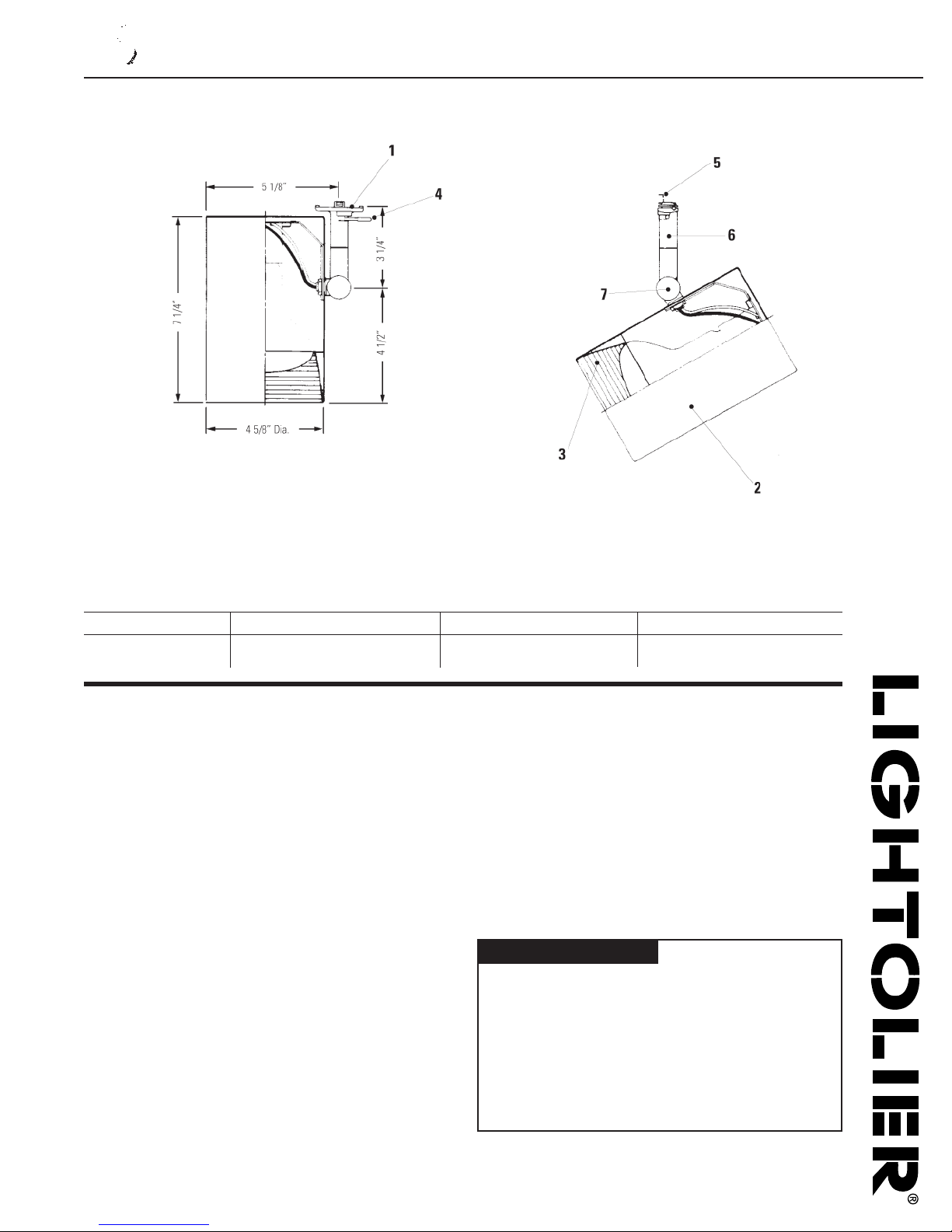

Features

1. Lytespan Attachment Fitting: die-cast zinc alloy.

2. Housing: .040” aluminum.

3. Step Baffle: compression-molded high heat phenolic with stepped conical

surface for low brightness. Integral black finish.

4. Lever: locks attachment fitting electrically and mechanically anywhere

along track.

5. Movable Brass Contact: extends for connection to 2nd circuit in Advent

Lytespan Track.

6. Swivel: die-cast zinc alloy. 350° horizontal adjustment.

7. Pivot Mounting: tensioned with built-in stop, provides 90° vertical adjust-

ment.

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Electrical

Porcelain socket, medium base, nickel plated screw shell.
No. 18 braided SF-1 leads.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Lytespan

17,000 3,000

50W PAR30 NSP

(Halogen-IR) 8°

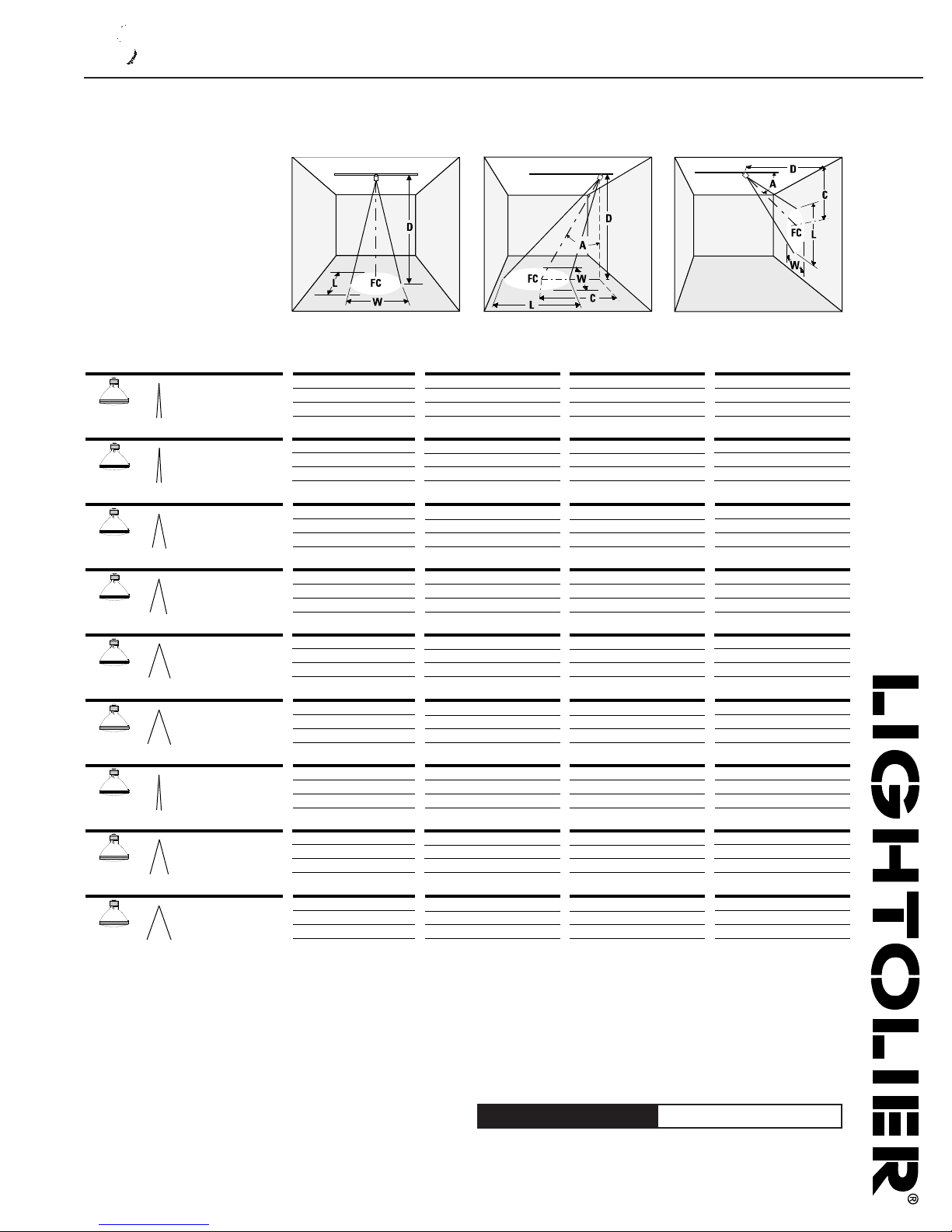

Lighting Data

Aiming Angle: 0°30°, 45° or 60° Horizontal 30°, 45° or 60° Vertical

LAMP 0° AIMING ANGLE A=30° AIMING ANGLE A=45° AIMING ANGLE A=60° AIMING ANGLE

L B

eam length

W Beam Width
C Distance to center beam
D Distance
A Aiming angle
FC Footcandles

L and W are the outer points where

the candle power drops to 50% of
the maximum. FC are the intial foot­candles at the center of the beam.

8" 266 1.1" 1.1"
12" 118 1.7" 1.7"
16" 66 2.2" 2.2"
20" 43 2.8" 2.8"

7" 4.0" 225 1.3" 1.1"
10" 5.8" 110 1.9" 1.6"
13" 7.5" 65 2.4" 2.1"
16" 9.2" 43 3.0" 2.6"

5" 5.0" 240 1.4" 1.0"
7" 7.0" 123 2.0" 1.4"
9"9.0" 74 2.5"1.8"

11" 11.0" 50 3.1" 2.2"

3" 5.2" 236 1.7" 0.8"
4" 6.9" 133 2.3" 1.1"
5"8.7" 85 2.8"1.4"
6" 10.4" 59 3.4" 1.7"

7" 188 1.0" 1.0"
10" 92 1.4" 1.4"
13" 54 1.8" 1.8"
16" 36 2.2" 2.2"

6" 3.5" 166 1.1" 1.0"

9" 5.2" 74 1.7" 1.5"
12" 6.9" 41 2.2" 1.9"
15" 8.7" 27 2.8" 2.4"

4" 4.0" 203 1.1" 0.8"
6" 6.0" 90 1.7" 1.2"
8"8.0" 51 2.2"1.6"

10" 10.0" 33 2.8" 2.0"

2" 3.5" 288 1.1" 0.6"
3" 5.2" 128 1.7" 0.8"
4"6.9" 72 2.3"1.1"
5" 8.7" 46 2.8" 1.4"

9,200 2,000

50W PAR30

NSP (Halogen) 8°

4" 125 1.8" 1.8"
6"58 2.7"2.7"
8" 31 3.5" 3.5"

10" 20 4.4" 4.4"

3" 1.7" 144 1.8" 1.5"

5"2.9" 52 3.0"2.6"

7" 4.0" 27 4.2" 3.6"

9"5.2" 16 5.4"4.5"

3" 3.0" 79 2.8" 1.9"
4"4.0" 44 3.7"2.5"
5" 5.0" 28 4.7" 3.1"
6"6.0" 20 5.6"3.8"

1" 1.7" 250 2.1" 0.9"
2"3.5" 63 4.2"1.8"
3" 5.2" 28 6.2" 2.7"
4"6.9" 16 8.3"3.5"

2,000 2,000

50W PAR30

NFL (Halogen) 25°

DFC L W

DC FC L W DC FC L W DC FC L W

Beam Spread Beam Center Rated
50% Max. CP C.P. Candelas Life-Hrs

1,400 2,500

50W PAR30
FL (Halogen) 35 °

3" 158 1.9" 1.9"
5" 56 3.2" 3.2"
7" 29 4.4" 4.4"
9" 17 5.7" 5.7"

3" 1.7" 101 2.6" 2.2"

5" 2.9" 36 4.3" 3.6"

7" 4.0" 19 6.1" 5.1"

9" 5.2" 11 7.8" 6.6"

2" 2.0" 124 2.8" 1.8"
3" 3.0" 55 4.2" 2.7"
4" 4.0" 31 5.6" 3.8"
5" 5.0" 20 7.0" 4.5"

1" 1.7" 175 3.6" 1.3"
2" 3.5" 44 7.2" 2.5"
3" 5.2" 19 10.8" 3.8"
4" 6.9" 11 14.4" 5.0"

6"83 2.7"2.7"

8" 47 3.5" 3.5"
10" 30 4.4" 4.4"
12" 21 5.3" 5.3"

5"2.9" 78 3.0"2.6"
7" 4.0" 40 4.2" 3.6"
9" 5.2" 24 5.4" 4.6"

11" 6.4" 16 6.6" 5.6"

3"3.0" 118 2.8"1.9"
5" 5.0" 42 4.7" 3.1"
7" 7.0" 22 6.5" 4.4"
9" 9.0" 12 8.4" 5.6"

2"3.5" 94 4.2"1.8"
3" 5.2" 42 6.2" 2.7"
4" 6.9" 23 8.3" 3.5"
5" 8.7" 15 10.4" 4.4"

3,000 3,000

50W PAR30

NFL (Halogen-IR) 25 °

3" 178 2.0" 2.0"

5" 64 3.3" 3.3"

7" 33 4.7" 4.7"

9" 20 6.0" 6.0"

3" 1.7" 115 2.8" 2.3"
5" 2.9" 42 4.6" 3.9"
7" 4.0" 21 6.5" 5.4"
9" 5.2" 13 8.3" 7.0"

2" 2.0" 141 3.0" 1.9"
3" 3.0" 63 4.5" 2.8"
4" 4.0" 35 6.0" 3.8"
5" 5.0" 23 7.5" 4.7"

1" 1.7 200 4.0" 1.3"
2" 3.5" 50 8.1" 2.7"
3" 5.2" 22 12.1" 4.0"
4" 6.9" 13 18.1" 5.4"

1,600 3,000

50W PAR30

FL (Halogen-IR) 37 °

3,200 2,500

75W PAR30

NFL (Halogen) 30°

6" 89 3.2" 3.2"

8" 50 4.3" 4.3"
10" 32 5.4" 5.4"
12" 22 6.4" 6.4"

5" 2.9" 83 3.7" 3.1"
7" 4.0" 42 5.1" 4.3"
9" 5.2" 26 6.6" 5.6"

11" 6.4" 17 8.1" 6.8"

3" 3.0" 126 3.5" 2.3"
5" 5.0" 45 5.8" 3.8"
7" 7.0" 23 8.1" 5.3"
9" 9.0" 14 10.4" 6.8"

2" 3.5" 100 5.5" 2.1"
3" 5.2" 44 8.2" 3.2"
4" 6.9" 25 10.9" 4.3"
5" 8.7" 16 13.7" 5.4"

8" 219 1.3" 1.3"
12" 97 1.9" 1.9"
16" 55 2.5" 2.5"
20" 35 3.1" 3.1"

7" 4.0" 186 1.5" 1.3"
10" 5.8" 91 2.1" 1.8"
13" 7.5" 54 2.7" 2.4"
16" 9.2" 36 3.4" 2.9"

5" 5.0" 198 1.6" 1.1"
7" 7.0" 101 2.2" 1.6"
9" 9.0" 61 2.9" 2.0"

11" 11.0" 41 3.5" 2.4"

3" 5.2" 184 1.9" 0.9"
4" 6.8" 109 2.6" 1.3"
5" 8.7" 70 3.2" 1.6"
6" 10.4" 49 3.8" 1.9"

14,000 2,500

75W PAR30

NSP (Halogen) 9 °

4" 125 2.9" 2.9"
6" 56 4.4" 4.4"
8" 31 5.8" 5.8"

10" 20 7.3" 7.3"

3" 1.7" 144 3.0" 2.5"

5" 2.9" 52 5.1" 4.2"

7" 4.0" 27 7.1" 5.9"

9" 5.2" 16 9.1" 7.6"

3" 3.0" 79 5.0" 3.1"
4" 4.0" 44 6.7" 4.1"
5" 5.0" 28 8.4" 5.1"
6" 6.0" 20 10.1" 6.1"

1" 1.7" 250 4.8" 1.5"
2" 3.5" 63 9.7" 2.9"
3" 5.2" 28 14.5" 4.4"
4" 6.9" 16 19.3" 5.8"

2,000 2,500

75W PAR30

FL (Halogen) 40°

®

Track Lighting System 6350

Page 2 of 2 Basic Cylinder
