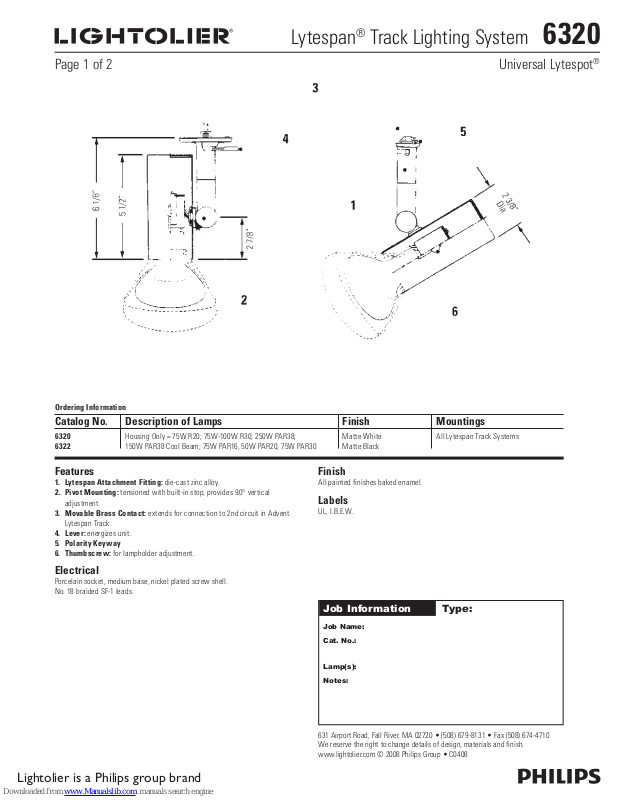

Lytespan
®
Track Lighting System 6320
Page 1 of 2 Universal Lytespot
®
Ordering Information
Catalog No. Description of Lamps Finish Mountings
6320 Housing Only = 75W R20; 75W-100W R30; 250W PAR38; Matte White All Lytespan Track Systems
6322 150W PAR38 Cool Beam; 75W PAR16, 50W PAR20, 75W PAR30 Matte Black
Features
1. Lytespan Attachment Fitting: die-cast zinc alloy.
2. Pivot Mounting: tensioned with built-in stop, provides 90° ver tical
adjustment.
3. Movable Brass Contact: extends for connection to 2nd circuit in Advent
Lytespan Tra ck.
4. Lever: energizes unit.
5. Polarity Keyway
6. Thumbscrew: for lampholder adjustment.
Finish
All painted finishes baked enamel.
Labels
UL, I.B.E.W.
Electrical
Porcelain socket, medium base, nickel plated screw shell.
No. 18 braided SF-1 leads.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C0408
Page 2
Lytespan
®
Track Lighting System 6320
Page 1 of 2 Universal Lytespot
Lighting Data 0
30 , 45 or 60 Horizontal
L Beam length
W Beam Width
C Distance to center beam
D Distance
A Aiming angle
FC Footcandles
L and W are the outer points where
the candle power drops to 50% of
the maximum. FC are the intial footcandles at the center of the beam.
LAMP0ϒ AIMING ANGLE A=30ϒ AIMING ANGLE A=45ϒ AIMING ANGLE A=60ϒ AIMING ANGLE
Beam Spread Beam Center Rated
50% Max. CP C.P. Candelas Life-Hrs
75W PAR30
NSP (Halogen) 9ϒ
75W PAR30
NFL(Halogen) 30ϒ
90W PAR38
NSP (Halogen)9ϒ
90W PAR38
SP (Halogen) 12ϒ
90W PAR38
FL (Halogen) 28ϒ
100W PAR38
SP (Halogen)10ϒ
100W PAR38
NFL (Halogen)27ϒ
100W PAR38
FL (HIR)40ϒ
120W PAR38
NSP (Halogen) 10ϒ
120W PAR38
FL (Halogen) 30ϒ
250W PAR38
SP (Halogen) 11ϒ
250W PAR38
FL (Halogen) 32ϒ
14,000 2,500
3.200 2,500
19.500 2,500
14.500 2,500
4,500 2,500
29,000 3,000
7,500 3,000
3,400 3,000
25,000 3.000
5,000 3,000
40,000 4,200
8,000 4,200
DFCLW
8' 219 1.3' 1.3'
12' 97 1.9' 1.9'
16' 55 2.5' 2.5'
20' 35 3.1' 3.1'
6' 89 3.2' 3.2'
8' 50 4.3' 4.3'
10' 32 5.4' 5.4'
12' 22 6.4' 6.4'
10' 195 1.6' 1.6'
15' 87 2.4' 2.4'
20' 49 3.1' 3.1'
25' 31 3.9' 3.9'
8' 227 1.7' 1.7'
12' 101 2.5' 2.5'
16' 57 3.4' 3.4'
20' 36 4.2' 4.2'
6' 125 3.0' 3.0'
8' 70 4.0' 4.0'
10' 45 5.0' 5.0'
12' 31 6.0' 6.0'
10' 290 1.7' 1.7'
15' 120 2.6' 2.6'
20' 73 3.5' 3.5'
25' 46 4.4' 4.4'
7' 153 3.4' 3.4'
10' 75 4.8' 4.8'
13' 44 8.2' 6.2'
16' 29 7.7' 7.7'
6' 94 4.4' 4.4'
8' 53 5.8' 5.8'
10' 34 7.3' 7.3'
12' 24 8.7' 8.7'
10' 250 1.7' 1.7'
15' 111 2.6' 2.6'
20' 63 3.5' 3.5'
25' 40 4.4' 4.4'
6' 139 3.2' 3.2'
8' 78 4.3' 4.3'
10' 50 5.4' 5.4'
12' 35 6.4' 6.4'
15' 178 2.9' 2.9'
20' 100 3.9' 3.9'
25' 64 4.8' 4.8'
30' 44 5.8' 5.8'
7' 163 4.0' 4.0'
10' 80 5.7' 5.7'
13' 47 7.5' 7.5'
16' 31 9.2' 9.2'
DC FC LW DC FC LW DC FC LW
7' 4.0' 186 1.5' 1.3'
10' 5.8' 91 2.1' 1.8'
13' 7.5' 54 2.7' 2.4'
16' 9.2' 36 3.4' 2.9'
5' 2.9' 83 3.7' 3.1'
7' 4.0' 42 5.1' 4.3'
9' 5.2' 26 6.6' 5.6'
11' 6.4' 17 8.1' 6.8'
8' 4.6' 198 1.7' 1.5'
12' 6.9' 88 2.5' 2.2'
16' 9.2' 49 3.4' 2.9'
20' 11.5' 32 4.2' 3.8'
7' 4.0' 192 2.0' 1.7'
10' 5.8' 94 2.8' 2.4'
13' 7.5' 56 3.7' 3.2'
16' 9.2' 37 4.5' 3.9'
5' 2.9' 117 3.4' 2.9'
7' 4.0' 60 4.8' 4.0'
9' 5.2' 36 6.1' 5.2'
11' 6.4' 24 7.5' 6.3'
8' 4.6' 294 1.9' 1.6'
12' 6.9' 131 2.8' 2.4'
16' 9.2' 74 3.7' 3.2'
20' 11.5' 47 4.7' 4.0'
6' 3.5' 135 3.9' 3.3'
9' 5.2' 60 5.9' 5.0'
12' 6.9' 34 7.8' 6.7'
15' 8.7' 22 9.8' 8.3'
5' 2.9' 88 5.1' 4.2'
7' 4.0' 45 7.1' 5.9'
9' 5.2' 27 9.1' 7.6'
11' 6.4' 18 11.2' 9.2'
8' 4.6' 254 1.9' 1.6'
12' 6.9' 113 2.8' 2.4'
16' 9.2' 63 37' 3.2'
20' 11.5' 41 4.7' 4.0'
5' 2.9' 130 3.7' 3.1'
7' 4.0' 66 5.1' 4.3'
9' 5.2' 40 6.8' 5.6'
11' 6.4' 27 8.1' 6.8'
10' 5.8' 260 2.6' 2.2'
15' 8.7' 115 3.9' 3.3'
20' 11.5' 65 5.2' 4.4'
25' 14.4' 42 6.4' 5.6'
6' 3.5' 144 4.7' 4.0'
9' 5.2' 64 7.1' 6.0'
12' 6.9' 36 9.4' 7.9'
15' 8.7' 23 11.8' 9.9'
5' 5.0' 198 1.6' 1.1'
7' 7.0' 101 2.2' 1.6'
9' 9.0' 61 2.9' 2.0'
11' 11.0' 41 3.5' 2.4'
3' 3.0' 126 3.5' 2.3'
5' 5.0' 45 5.8' 3.8'
7' 7.0' 23 8.1' 5.3'
9' 9.0' 114 10.4' 6.8'
6' 6.0' 192 1.9' 1.3'
9' 9.0' 85 2.9' 2.0'
12' 12.0' 48 3.8' 2.7'
15' 15.0' 31 4.8' 3.3'
5' 5.0' 205 2.1' 1.5'
7' 7.0' 105 3.0' 2.1'
9' 9.0' 63 3.8' 2.7'
11' 11.0' 42 4.7' 3.3'
3' 3.0' 177 3.2' 2.1'
5' 5.0' 64 5.3' 3.5'
7' 7.0' 32 7.4' 4.9'
9' 9.0' 20 9.6' 8.3'
6' 6.0' 285 2.1' 1.5'
9' 9.0' 127 3.2' 2.2'
12' 12.0' 71 4.2' 3.0'
15' 15.0' 46 5.3' 3.7'
4' 4.0' 168 4.1' 2.7'
6' 6.0' 74 6.1' 4.1'
8' 8.0' 41 8.2' 5.4'
10' 10.0' 27 10.2' 6.8'
3' 3.0' 134 5.0' 3.1'
5' 5.0' 48 8.4' 5.1'
7' 7.0' 25 11.7' 7.2'
9' 9.0' 15 15.1' 8.3'
6' 6.0' 246 2.1' 1.5'
9' 9.0' 109 3.2' 2.2'
12' 12.0' 61 4.2' 3.0'
15' 15.0' 39 5.3' 3.7'
3' 3.0' 196 3.5' 2.3'
5' 5.0' 71 5.8' 3.8'
7' 7.0' 36 8.1' 5.3'
9' 9.0' 22 10.4' 6.8'
8' 8.0' 221 3.1' 2.2'
12' 12.0' 98 4.7' 3.3'
18' 18.0' 55 6.2' 4.4'
20' 20.0' 35 7.8' 5.4'
4' 4.0' 177 5.0' 3.2'
6' 6.0' 79 7.5' 4.9'
8' 8.0' 44 10.0' 6.5'
10' 10.0' 28 12.5' 9.1'
30 , 45 or 60 Vertical
3' 5.2' 194 1.9' 0.9'
4' 6.9' 109 2.6' 1.3'
5' 8.7' 70 3.2' 1.6'
6' 10.4' 49 3.8' 1.9'
2' 3.5' 100 5.5' 2.1'
3' 5.2' 44 8.2' 3.2'
4' 6.9' 25 10.9' 4.3'
5' 8.7' 16 13.7' 5.4'
4' 6.9' 152 2.6' 1.3'
6' 10.4' 68 3.8' 1.9'
8' 13.9' 38 5.1' 2.5'
10' 17.3' 24 8.4' 3.1'
3' 5.2' 201 2.6' 1.3'
4' 6.9' 113 3.5' 1.7'
5' 8.7' 73 4.3' 2.1'
6' 10.4' 50 5.2' 2.5'
2' 3.5' 141 4.9' 2.0'
3' 5.2' 63 7.4' 3.0'
4' 6.9' 35 9.8' 4.0'
5' 8.7' 23 12.3' 5.0'
4' 6.9 227 2.9' 1.4'
6' 10.4' 101 4.3' 2.1'
8' 13.9' 57 5.7' 2.8'
10' 17.3' 36 7.2' 3.5'
2' 3.5' 234 4.8' 1.9'
3' 5.2' 104 7.4' 2.9'
4' 6.9' 59 9.3' 3.8'
5' 8.7' 38 11.6' 4.8'
2' 3.5' 106 9.7' 2.9'
3' 5.2' 47 14.5' 4.4'
4' 6.9' 27 19.3' 5.8'
5' 8.7' 17 24.2' 7.3'
4' 6.9' 195 2.9' 1.4'
6' 10.4' 87 4.3' 2.1'
8' 13.9' 49 5,7' 2.8'
10' 17.3' 31 7.2' 3.5'
2' 3.5' 156 5.5' 2.1'
3' 5.2' 69 8.2' 3.2'
4' 6.9' 39 10.9' 4.3'
5' 8.7' 25 13.7' 5.4'
5' 8.7' 200 4.0' 1.9'
8' 13.9' 78 6.3' 3.1'
11' 19.1' 41 8.7' 4.2'
14' 24.2' 26 11.1' 5.4'
2' 3.5' 250 6.1' 2.3'
3' 5.2' 111 9.1' 3.4'
4' 6.9' 63 12.2' 4.6'
5' 8.7' 40 15.2' 5.7'
®
