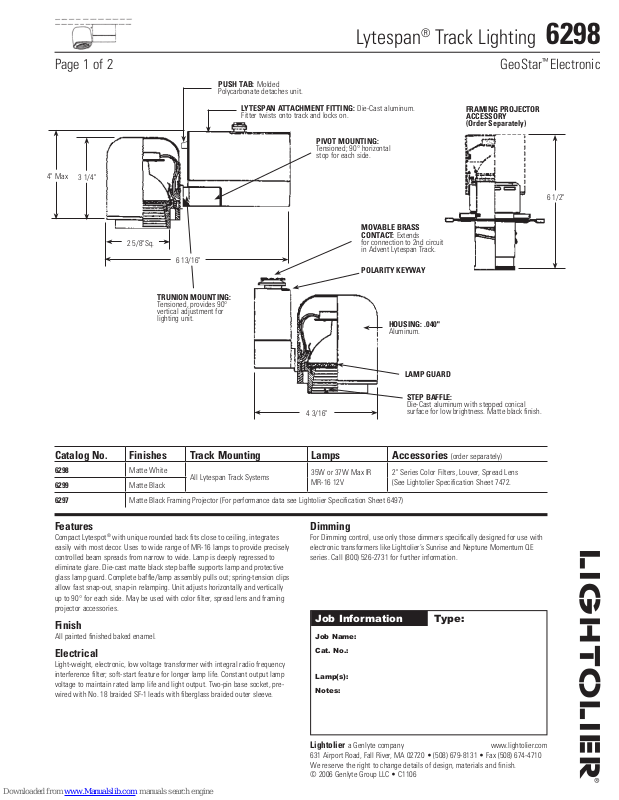

Lytespan
®
Track Lighting 6298
Page 1 of 2 GeoStar™ Electronic
PUSH TAB: Molded
Polycarbonate detaches unit.
LYTESPAN ATTACHMENT FITTING: Die-Cast aluminum.
Fitter twists onto track and locks on.
PIVOT MOUNTING:
Tensioned; 90° horizontal
stop for each side.
FRAMING PROJECTOR
ACCESSORY
(Order Separately)
4" Max
3 1/4"
2 5/8"Sq.
6 13/16"
TRUNION MOUNTING:
Tensioned, provides 90°
vertical adjustment for
lighting unit.
4 3/16"
MOVABLE BRASS
CONTACT: Extends
for connection to 2nd circuit
in Advent Lytespan Track.
POLARITY KEYWAY
HOUSING: .040"
Aluminum.
LAMP GUARD
STEP BAFFLE:
Die-Cast aluminum with stepped conical
surface for low brightness. Matte black finish.
Catalog No. Finishes Track Mounting Lamps Accessories (order separately)
6298
6299
6297
Matte White
Matte Black
Matte Black Framing Projector (For performance data see Lightolier Specication Sheet 6497)
All Lytespan Track Systems
35W or 37W Max IR
MR-16 12V
2" Series Color Filters, Louver, Spread Lens
(See Lightolier Specication Sheet 7472.
6 1/2"
Features
Compact Lytespot® with unique rounded back fits close to ceiling, integrates
easily with most decor. Uses to wide range of MR-16 lamps to provide precisely
controlled beam spreads from narrow to wide. Lamp is deeply regressed to
eliminate glare. Die-cast matte black step bafe supports lamp and protective
glass lamp guard. Complete bafe/lamp assembly pulls out; spring-tension clips
allow fast snap-out, snap-in relamping. Unit adjusts horizontally and vertically
up to 90° for each side. May be used with color lter, spread lens and framing
projector accessories.
Finish
All painted finished baked enamel.
Electrical
Light-weight, electronic, low voltage transformer with integral radio frequency
interference lter; soft-start feature for longer lamp life. Constant output lamp
voltage to maintain rated lamp life and light output. Two-pin base socket, prewired with No. 18 braided SF-1 leads with berglass braided outer sleeve.
Dimming
For Dimming control, use only those dimmers specifically designed for use with
electronic transformers like Lightolier’s Sunrise and Neptune Momentum QE
series. Call (800) 526-2731 for further information.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • C1106
Lytespan
®
Track Lighting 6298
Page 2 of 2 GeoStar™ Electronic
Lighting Data
Aiming Angle 0° 30°, 45° or 60° Horizontal 30°, 45° or 60° Vertical
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
D
L
FC
W
FC
L
D
A
W
C
Lamp 0° Aiming Angle A=30° Aiming Angle A=45° Aiming Angle A=60° Aiming Angle
Rated
Life-Hrs
7,400 3,000
3,750 5,000
525 5,000
11,000 4,000
2,800 4,000
1,400 4,000
12,500 4,000
4,400 4,000
2,250 4,000
1,100 4,000
DFCLW
7’ 151 0.9’ 0.9’
10’ 74 1.2’ 1.2’
13’ 44 1.6’ 1.6’
16’ 29 2.0’ 2.0’
6’ 104 1.6’ 1.6’
8’ 59 2.1’ 2.1’
10’ 38 2.6’ 2.6’
12’ 26 3.2’ 3.2’
2’ 131 1.5’ 1.5’
3’ 58 2.2’ 2.2’
4’ 33 2.8’ 2.8’
5’ 21 3.6’ 3.6’
7’ 224 1.0’ 1.0’
10’ 110 1.4’ 1.4’
13’ 65 1.8’ 1.8’
16’ 43 2.2’ 2.2’
6’ 78 2.1’ 2.1’
8’ 44 2.8’ 2.8’
10’ 28 3.5’ 2.3’
12’ 19 4.2 4.2’
4’ 88 2.9’ 2.9’
6’ 39 4.4’ 4.4’
8’ 22 5.8’ 5.8’
10’ 14 7.3’ 7.3’
8’ 195 1.3’ 1.3’
12’ 87 1.9’ 1.9’
16’ 49 2.5’ 2.5’
20’ 31 3.1’ 3.1’
4’ 275 1.9’ 1.9’
6’ 122 2.9’ 2.9’
8’ 69 3.8’ 3.8’
10’ 44 4.8’ 4.8’
4’ 138 2.9’ 2.9’
6’ 61 4.4’ 4.4’
8’ 34 5.8’ 5.8’
10’ 22 7.3’ 7.3’
3’ 128 3.1’ 3.1’
5’ 48 5.2’ 5.2’
7’ 23 7.3’ 7.3’
9’ 14 9.4’ 9.4’
DC FC LW DC FC LW DC FC LW
6’ 3.5’ 134 1.0’ 0.8’
9’ 5.2’ 59 1.5’ 1.3’
12’ 6.9’ 33 2.0’ 1.7’
15’ 9.7’ 21 2.4’ 2.1’
5.’ 2.9’ 97 1.8’ 1.5’
7’ 4.0’ 50 2.5’ 2.1’
9’ 5.2’ 30 3.2’ 2.7’
11’ 6.4’ 20 3.9’ 3.3’
2’ 1.2’ 85 2.0’ 1.7’
3’ 1.7’ 38 3.0’ 2.5’
4’ 2.3’ 21 4.1’ 3.4’
5’ 2.9’ 14 5.1’ 4.2’
6’ 3.5’ 198 1.1’ 1.0’
9’ 5.2’ 88 1.7’ 1.5’
12’ 6.9’ 50 2.2’ 1.9’
15’ 8.7’ 32 2.8’ 2.4’
5’ 2.9’ 73 2.4’ 2.0’
7’ 4.0’ 37 3.3’ 2.9’
9’ 5.2’ 22 4.3’ 3.7’
11’ 6.4’ 15 5.2’ 4.5’
3’ 1.7’ 101 3.0’ 2.5’
5’ 2.9’ 36 5.1’ 4.2’
7’ 4.0’ 19 7.1’ 5.9’
9’ 5.2’ 11 9.1’ 7.6’
7’ 4.0’ 166 1.5’ 1.3’
10’ 5.8’ 81 2.1’ 1.8’
13’ 7.5’ 48 2.7’ 2.4’
16’ 9.2’ 32 3.4’ 2.9’
3’ 1.7’ 318 2.0’ 1.7’
5’ 2.9’ 114 3.3’ 2.8’
7’ 4.0’ 58 4.6’ 3.9’
9’ 5.2’ 35 5.9’ 5.0’
3’ 1.7’ 159 3.0’ 2.5’
5’ 2.9’ 57 5.1’ 4.2’
7’ 4.0’ 29 7.1’ 5.9’
9’ 5.2’ 18 9.1’ 7.8’
3’ 1.7’ 83 4.6’ 3.6’
5’ 2.9’ 30 7.6’ 6.0’
7’ 4.0’ 15 10.7’ 8.4’
9’ 5.2’ 9 13.7’ 10.8’
4’ 4.0’ 164 1.0’ 0.7’
6’ 6.0’ 73 1.5’ 1.0’
8’ 8.0’ 41 2.0’ 1.4’
10’ 10.0’ 26 2.5’ 1.7’
3’ 3.0’ 147 1.6’ 1.1’
5’ 5.0’ 53 2.7’ 1.9’
7’ 7.0’ 27 3.8’ 2.6’
9’ 9.0’ 16 4.8’ 3.4’
2’ 2.0’ 46 3.4’ 2.1’
3’ 3.0’ 21 5.0’ 3.1’
4’ 4.0’ 12 6.7’ 4.1’
5’ 5.0’ 7 8.4’ 5.1’
4’ 4.0’ 243 1.1’ 0.8’
6’ 6.0’ 108 1.7’ 1.2’
8’ 8.0’ 61 2.2’ 1.6’
10’ 10.0’ 48
3’ 3.0’ 110 2.2’ 1.5’
5’ 5.0’ 40 3.6’ 2.5’
7’ 7.0’ 20 5.1’ 3.5’
9’ 9.0’ 12 6.6’ 4.5’
3’ 3.0’ 55 5.0’ 3.1’
4’ 4.0’ 31 6.7’ 4.1’
5’ 5.0’ 20 8.4’ 5.1’
6’ 6.0’ 14 10.1’ 6.2’
5’ 5.0’ 177 1.6’ 1.1’
7’ 7.0’ 90 2.2’ 1.6’
9’ 9.0’ 55 2.9’ 2.0’
11’ 11.0’ 37 3.5’ 2.4’
3’ 3.0’ 173 3.1’ 2.0’
4’ 4.0’ 97 4.1’ 2.7’
5’ 5.0’ 62 5.1’ 3.4’
6 ’ 6.0’ 43 6.1’ 4.1’
3’ 3.0’ 86 5.0’ 3.1’
4’ 4.0’ 49 6.7’ 4.1’
5’ 5.0’ 31 8.4’ 5.1’
6’ 6.0’ 22 10.1’ 6.2’
2’ 2.0’ 102 5.7’ 2.9’
3’ 3.0’ 45 8.6’ 4.4’
4.0’ 25 11.4’ 5.9’
4’
5’ 5.0’ 16 14.3’ 7.4’
2.5’ 1.8’
2’ 3.5’ 231 1.0’ 0.5’
3’ 5.2’ 103 1.5’ 0.7’
4’ 6.9’ 58 2.0’ 1.0’
5’ 8.7’ 37 2.5’ 1.2’
2’ 3.5’ 117 2.2’ 1.1’
3’ 5.2’ 52 3.3’ 1.6’
4’ 6.9’ 29 4.4’ 2.1’
5’ 8.7’ 19 5.6’ 2.6’
1’ 1.7’ 66 4.8’ 1.5’
2’ 3.5’ 16 9.7’ 2.9’
3’ 5.2’ 7 14.5’ 4.4’
4’ 6.9’ 4 19.3’ 5.8’
2’ 3.5’ 344 1.1’ 0.6’
3’ 5.2’ 153 1.7’ 0.8’
4’ 6.9’ 86 2.3’ 1.1’
5’ 8.7’ 55 2.8’ 1.4’
2’ 3.5’ 88 3.1’ 1.4’
3’ 5.2’ 39 4.7’ 2.1’
4’ 6.9’ 22 6.2’ 2.8’
5’ 8.7’ 14 7.8’ 3.5’
1’ 1.7 175 4.8’ 1.5’
2’ 3.5’ 44 9.7’ 2.9’
3’ 5.2’ 19 14.5’ 4.4’
4’ 6.9’ 11 19.3’ 5.8’
3’ 5.2’ 174 1.9’ 0.9’
4’ 6.9’ 98 2.6’ 1.3’
5’ 8.7’ 63 3.2’ 1.6’
6’ 10.4’ 43 3.8’ 1.9’
1’ 1.7’ 550 2.3’ 1.0’
2’ 3.5’ 138 4.8’ 1.9’
3’ 5.2’ 61 7.0’ 2.9’
4’ 6.9’ 34 9.3’ 3.8’
1’ 1.7’ 275 4.8’ 1.5’
2’ 3.5’ 69 9.7’ 2.9’
3’ 5.2’ 31 14.5’ 4.4’
4’ 8.9’ 17 19.3’ 5.8’
1’ 1.7’ 144 22.3’ 2.1’
2’ 3.5’ 36 44.5’ 4.2’
3’ 5.2’ 16 66.8’ 6.2’
4’ 6.9’ 9 89.1’ 8.3’
20W MR16 VNSP
20W MR16 NSP
20W MR16 FL
35W MR16 NS
35W MR16 SP
35W MR16 FL
37W MR16 VNSP
(I.R.)
37W MR16 NF
(I.R.)
37W MR16 FL
(I.R.)
37W MR16 WLF
(I.R.)
Beam Spread
50% Max. CP
P
L
7ϒ
15ϒ
40ϒ
8°
20ϒ
40ϒ
9°
25°
40ϒ
60ϒ
Beam Center
C.P. Candelas
D
A
C
FC
L
Job Information Type:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • C1106
