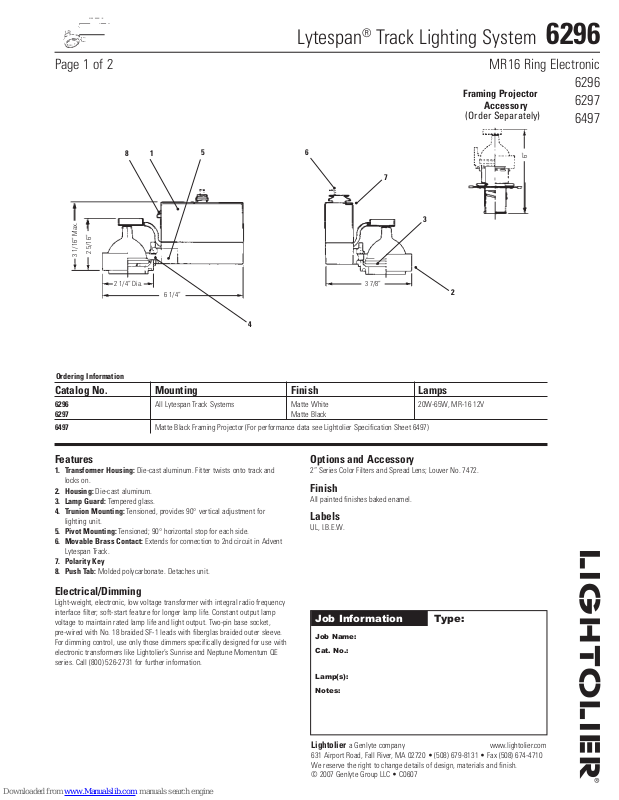

Lytespan
®
Track Lighting System 6296
Page 1 of 2 MR16 Ring Electronic
Framing Projector
Accessory
(Order Separately)
2 5/16”
3 1/16” Max.
2 1/4” Dia.
Ordering Information
1
8
6 1/4”
5
4
6
7
3
3 7/8”
2
Catalog No. Mounting Finish Lamps
6296 All Lytespan Track Systems Matte White 20W-65W, MR-16 12V
6297 Matte Black
6497 Matte Black Framing Projector (For performance data see Lightolier Specification Sheet 6497)
6296
6297
6497
6”
Features
1. Transformer Housing: Die-cast aluminum. Fitter twists onto track and
locks on.
2. Housing: Die-cast aluminum.
3. Lamp Guard: Tempered glass.
4. Trunion Mounting: Tensioned, provides 90° vertical adjustment for
lighting unit.
5. Pivot Mounting: Tensioned; 90° horizontal stop for each side.
6. Movable Brass Contact: Extends for connection to 2nd circuit in Advent
Lytespan Track.
7. Polarity Key
8. Push Tab: Molded polycarbonate. Detaches unit.
Electrical/Dimming
Light-weight, electronic, low voltage transformer with integral radio frequency
interface filter; soft-start feature for longer lamp life. Constant output lamp
voltage to maintain rated lamp life and light output. Two-pin base socket,
pre-wired with No. 18 braided SF-1 leads with fiberglas braided outer sleeve.
For dimming control, use only those dimmers specifically designed for use with
electronic transformers like Lightolier’s Sunrise and Neptune Momentum QE
series. Call (800) 526-2731 for further information.
Options and Accessory
2” Series Color Filters and Spread Lens; Louver No. 7472.
Finish
All painted finishes baked enamel.
Labels
UL, I.B.E.W.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • C0607
Lytespan
®
Track Lighting System 6296
Page 2 of 2 MR16 Ring Electronic
Lighting Data
Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where the
candle power drops to 50% of the maximum.
FC are the initial footcandles at the center
of the beam.
D
L
FC
W
FC
L
D
A
W
C
D
A
FC
L
6296
6297
6497
C
