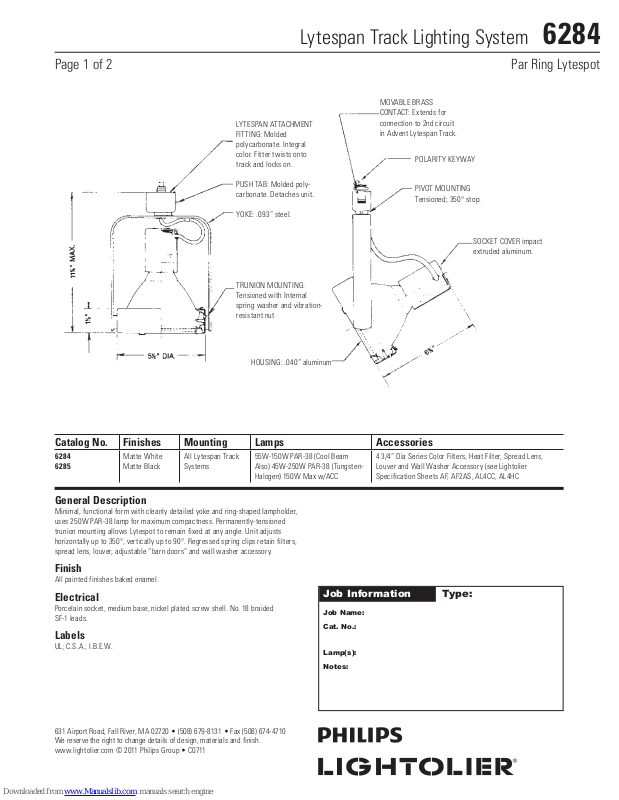

Lightolier Lytespan 6284 Specification

Lytespan Track Lighting System 6284

Page 1 of 2 Par Ring Lytespot

MOVABLE BRASS
CONTACT: Extends for

LYT ES PAN AT TACHMENT
FITTING: Molded
polycarbonate. Integral

color. Fitter twists onto
track and locks on.

connection to 2nd circuit
in Advent Lytespan Track.

POLARITY KEYWAY

PUSH TAB: Molded poly­carbonate. Detaches unit.

YOKE: .093” steel.

TRUNION MOUNTING:
Tensioned with Internal
spring washer and vibration-

resistant nut

HOUSING: .040” aluminum

PIVOT MOUNTING
Tensioned; 350° stop.

Catalog No. Finishes Mounting Lamps Accessories

6284
6285

Matte White

Matte Black

All Lytespan Track
Systems

55W-150W PAR-38 (Cool Beam
Also) 45W-250W PAR-38 (Tungsten­Halogen) 150W Max w/ACC

4 3/4” Dia Series Color Filters, Heat Filter, Spread Lens,
Louver and Wall Washer Accessory (see Lightolier
Specification Sheets AF, AF2AS, AL4CC, AL4HC

SOCKET COVER impact
extruded aluminum.

General Description

Minimal, functional form with cleanly detailed yoke and ring-shaped Iampholder,
uses 250W PAR-38 lamp for maximum compactness. Permanently-tensioned
trunion mounting allows Lytespot to remain fixed at any angle. Unit adjusts
horizontally up to 350°, vertically up to 90°. Regressed spring clips retain filters,
spread lens, louver, adjustable “barn doors” and wall washer accessory.

Finish

All painted finishes baked enamel.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided
SF-1 leads.

Labels

UL; C.S.A.; I.B.E.W.

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2011 Philips Group • C0711

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
