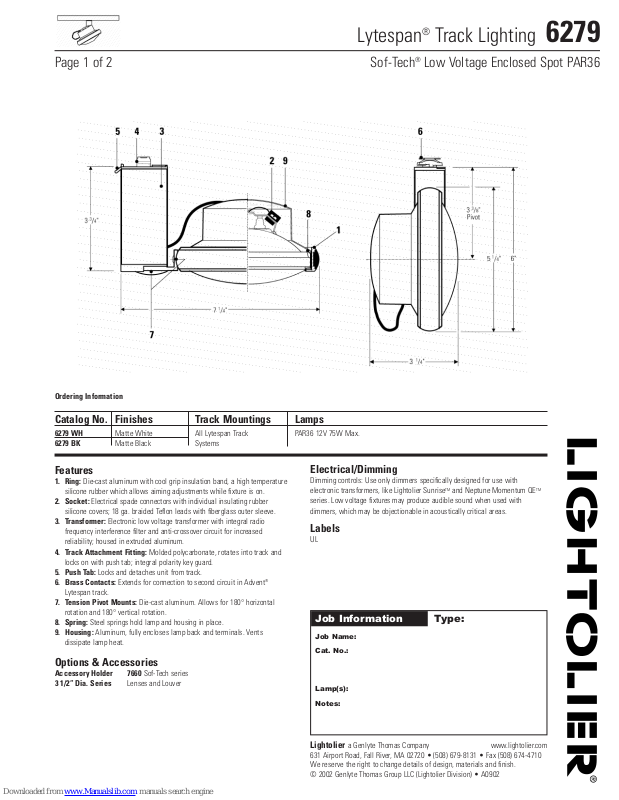

Page 1
Lytespan
®
Track Lighting 6279
Page 1 of 2 Sof-Tech®Low Voltage Enclosed Spot PAR36
Ordering Information
Catalog No. Finishes Track Mountings Lamps
6279 WH Matte White All Lytespan Track PAR36 12V 75W Max.
6279 BK Matte Black Systems
Features
1. Ring: Die-cast aluminum with cool grip insulation band, a high temperature
silicone rubber which allows aiming adjustments while fixture is on.
2. Socket: Electrical spade connectors with individual insulating rubber
silicone covers; 18 ga. braided Teflon leads with fiberglass outer sleeve.
3. Transformer: Electronic low voltage transformer with integral radio
frequency interference filter and anti-crossover circuit for increased
reliability; housed in extruded aluminum.
4. Track Attachment Fitting: Molded polycarbonate, rotates into track and
locks on with push tab; integral polarity key guard.
5. Push Tab: Locks and detaches unit from track.
6. Brass Contacts: Extends for connection to second circuit in Advent
Lytespan track.
7. Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal
rotation and 180° vertical rotation.
8. Spring: Steel springs hold lamp and housing in place.
9. Housing: Aluminum, fully encloses lamp back and terminals. Vents
dissipate lamp heat.
®
Electrical/Dimming
Dimming controls: Use only dimmers specifically designed for use with
electronic transformers, like Lightolier SunriseTMand Neptune Momentum QE
series. Low voltage fixtures may produce audible sound when used with
dimmers, which may be objectionable in acoustically critical areas.
Labels
UL
Job Information Type:
Job Name:
Cat. No.:
Options & Accessories
Accessory Holder 7660 Sof-Tech series
3 1/2” Dia. Series Lenses and Louver
Lamp(s):
Notes:
TM
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Page 2
Lytespan
FC
D
L
C
A
W
L
W
FC
D
FC
L
C
D
A
®
Track Lighting 6279
Page 2 of 2 Sof-Tech®Low Voltage Enclosed Spot PAR36
ighting Data
L
Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical
L Beam Length
W Beam Width
C Distance to center beam
D Distance
A Aiming Angle
FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE
Job Information Type:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
