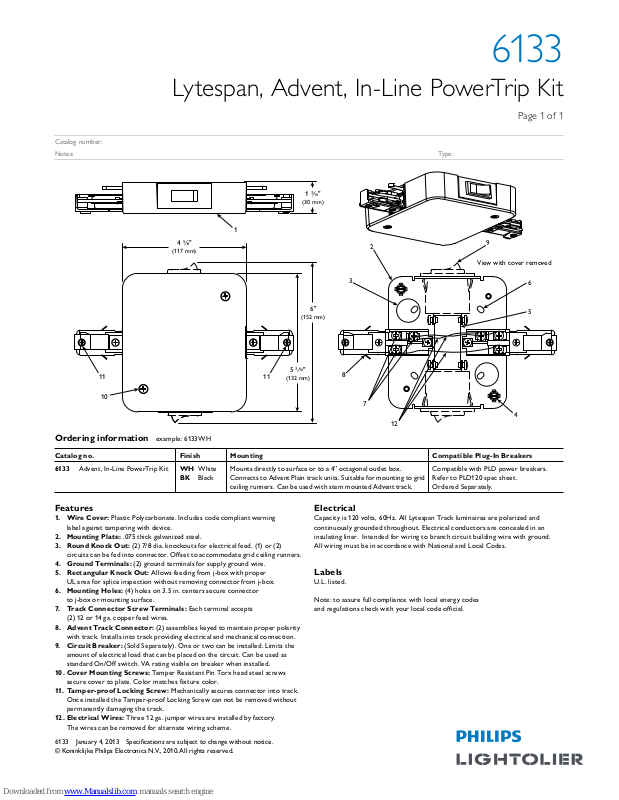

Lytespan, Advent, In-Line PowerTrip Kit
Catalog number:
Notes: Type:
1 ³⁄16"
(30 mm)
1
4 ⅝"
(117 mm)
2
6133
Page 1 of 1
9
View with cover removed
3
6"
(152 mm)
11
10
5 ³⁄16"
11
(132 mm)
8
7
4
12
Ordering information ex am ple: 6133WH
Catalog no. Finish Mounting Compatible Plug-In Breakers
6133 Advent , In- Line PowerTrip Kit WH White
BK Black
Features
1. Wire Cover: Plastic Polycarbonate. Includes code compliant warning
labelagainst tampering with device.
2. Mounting Plate: .075 thick galvanized steel.
3. Round Knock Out: (2) 7/8 dia. knockouts for electrical feed. (1) or (2)
circuits can be fed into connector. Offset to accommodate grid ceiling runners.
4. Ground Terminals: (2) ground terminals for supply ground wire .
5. Rectangular Knock Out: Allows feeding from j-box with proper
UL area for splice inspection without removing connector from j-box.
6. Mounting Holes: (4) holes on 3.5 in. centers secure connector
to j-box or mounting sur face.
7. Track Connector Screw Terminals: Each terminal accepts
(2) 12 or 14 ga. copper feed wires.
8. Advent Track Connector: (2) assemblies keyed to maintain proper polarity
with track. Installs into track providing electrical and mechanical connection.
9. Circuit Breaker: (Sold Separately). One or two can be installed. Limits the
amount of electrical load that can be placed on t he circuit. Can be used as
standard On/Off switch. VA rating visible on breaker when installed.
10. Cover Mounting Screws: Tamper Resist ant Pin Torx head steel screws
secure cover to plate. Color matches fixture color.
11. Tamper-proof Locking Screw: Mechanically secures connector into track.
Once installed the Tamper-proof Locking Screw c an not be removed without
permanently damaging the track.
12. Electrical Wires: Three 12 ga. jumper wires are inst alled by factory.
The wire s can be re moved for alternate wiring scheme.
6133 January 4, 2013 Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2010. All rights reserved.
Mount s directly to surface or to a 4” octagonal outlet box.
Connects to Advent Plain track units. Suitable for mounting to grid
ceiling runners. Can be used with stem mounted Advent track .
Electrical
Capacity is 120 volts, 60Hz. All Lytespan Track luminaires are polarized and
continuously grounded throughout . Electrical conductors are concealed in an
insulating liner. Intended for wiring to br anch circuit building wire with ground.
Allwiring must be in accordance with National and Local Codes.
Labels
U.L. listed.
Note: to assure full compliance with local energy codes
and regulations check with your local code off icial.
Compatible with PLD power breakers.
Refer to PLD120 spec sheet.
Ordered Separately.
6
5
