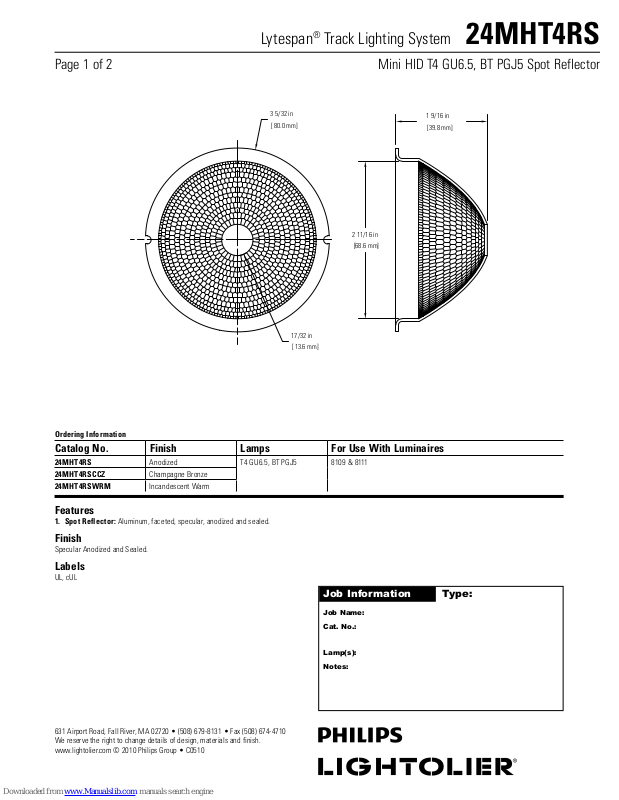

Lytespan
®
Track Lighting System 24MHT4RS
Page 1 of 2 Mini HID T4 GU6.5, BT PGJ5 Spot Reflector
3 5/32 in
[ 80.0 mm]
1 9/16 in
[39.8 mm]
2 11/16 in
[68.6 mm]
17/32 in
[ 13.6 mm]
Orde ring Information
Catalog No. Finish Lamps For Use With Luminaires
24MHT4RS
24MHT4RSCC Z
24MHT4RSWRM
Anodized
Champagne Bronze
Incandescent Warm
T4 GU6.5, BT PGJ5 8109 & 8111
Features
1. Spot Reflector: Aluminum, faceted, specular, anodized and sealed.
Finish
Specular Anodized and Sealed.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0510
Lytespan
®
Track Lighting System 24MHT4RS
Page 2 of 2 Mini HID T4 GU6.5, BT PGJ5 Spot Reflector
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp
manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
20W T4
8109
24MHT4RS 10°
20W BT-5 17240 12,000
8111
24MHT4RS 10°
35W BT-5 30214 9,000
8112
24MHT4RS
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64.
For Incandescent Warm (WRM), multiply FC values by 0.85.
10˚
CBCP
17773
Rated
12,000
D FC L W
10 178 1.7 1.7
12 123 2.1 2.1
14 91 2.4 2.4
16 69 2.8 2.8
D FC L W
10 172 1.7 1.7
12 120 2.1 2.1
14 88 2.4 2.4
16 67 2.8 2.8
D FC L W
12 210 2.1 2.1
14 154 2.4 2.4
16 118 2.8 2.8
18 93 3.1 3.1
D FC C L W
4 6.9 139 2.9 1.4
5 8.7 89 3.6 1.7
6 10.4 62 4.3 2.1
7 12.1 45 5.0 2.4
D FC C L W
10 5.8 112 2.3 2.0
12 6.9 78 2.8 2.4
14 8.1 57 3.3 2.8
16 9.2 44 3.7 3.2
D C FC L W
10 5.8 196 2.3 2.0
12 6.9 136 2.8 2.4
14 8.1 100 3.3 2.8
16 9.2 77 3.7 3.2
D FC C L W
4 6.9 139 2.9 1.4
5 8.7 89 3.6 1.7
6 10.4 62 4.3 2.1
7 12.1 45 5.0 2.4
D FC C L W
4 6.9 135 2.9 1.4
5 8.7 86 3.6 1.7
6 10.4 60 4.3 2.1
7 12.1 44 5.0 2.4
D C FC L W
4 6.9 236 2.9 1.4
5 8.7 151 3.6 1.7
6 10.4 105 4.3 2.1
7 12.1 77 5.0 2.4
D FC C L W
5 5.0 251 1.8 1.2
6 6.0 175 2.1 1.5
7 7.0 128 2.5 1.7
8 8.0 98 2.8 2.0
D FC C L W
5 5.0 244 1.8 1.2
6 6.0 169 2.1 1.5
7 7.0 124 2.5 1.7
8 8.0 95 2.8 2.0
D C FC L W
6 6.0 297 2.1 1.5
7 7.0 218 2.5 1.7
8 8.0 167 2.8 2.0
9 9.0 132 3.2 2.2
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0510
