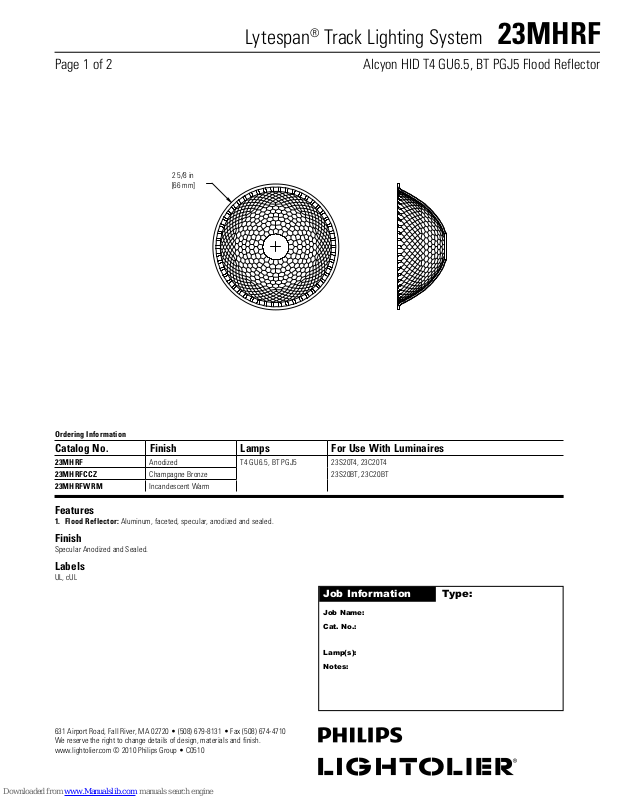

Lytespan
®
Track Lighting System 23MHRF
Page 1 of 2 Alcyon HID T4 GU6.5, BT PGJ5 Flood Reflector
2 5/8 in
[66 mm]
Orde ring Information
Catalog No. Finish Lamps For Use With Luminaires
23MHRF
23MHRFCCZ
23MHRF WRM
Anodized
Champagne Bronze 23S20BT, 23C20BT
Incandescent Warm
T4 GU6.5, BT PGJ5 23S20T4, 23C20T4
Features
1. Flood Reflector: Aluminum, faceted, specular, anodized and sealed.
Finish
Specular Anodized and Sealed.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0510
Lytespan
®
Track Lighting System 23MHRF
Page 2 of 2 Alcyon HID T4 GU6.5, BT PGJ5 Flood Reflector
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp
manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
20W T4, 23MHRF, 1849 9000
23S20T4,
23C20T4 35°
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
22W BT-5, 23MHRF, 1895 12000
23S20BT,
23C20BT 35°
CBCP
CBCP
Rated
Rated
D FC L W D C FC L W D C FC L W D C FC L W
6' 51 3.8' 3.8'
8' 29 5.0' 5.0'
10' 18 6.3' 6. 3'
12' 13 7.6' 7.6'
D FC L W D C FC L W D C FC L W D C FC L W
6' 53 3.8' 3.8'
8' 30 5.0' 5.0'
10' 19 6.3' 6. 3'
12' 13 7.6' 7.6'
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64.
For Incandescent Warm (WRM), multiply FC values by 0.85.
6' 3.5' 33 5.2' 4.4'
8' 4.6' 19 7.0' 5.8'
10' 5.8' 12 8.7' 7.3'
12' 6.9' 8 10.4' 8.7'
6' 3.5' 34 5.2' 4.4'
8' 4.6' 19 7.0' 5.8'
10' 5.8' 12 8.7' 7.3'
12' 6.9' 9 10.4' 8.7'
2' 3 .5' 58 7.2' 2.5'
3' 5 .2' 26 10.8' 3.8'
4' 6 .9' 14 14.4' 5.0'
5' 8 .7' 9 18.0' 6.3'
2' 3 .5' 59 7.2' 2.5'
3' 5 .2' 26 10.8' 3.8'
4' 6 .9' 15 14.4' 5.0'
5' 8 .7' 9 18.0' 6.3'
2' 2.0' 163 2.8' 1.8'
3' 3 .0' 73 4.2' 2.7'
4' 4 .0' 41 5.6 ' 3.6'
5' 5 .0' 26 7.0' 4.5'
2' 2.0' 167 2.8' 1.8'
3' 3 .0' 74 4.2' 2.7'
4' 4 .0' 42 5.6' 3.6'
5' 5 .0' 27 7.0' 4.5'
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0510
