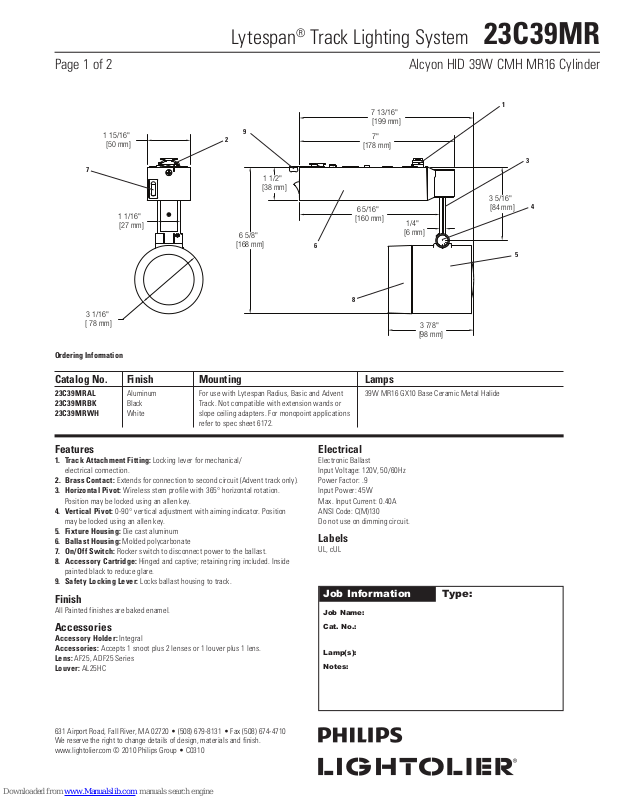

Lytespan
®
Track Lighting System 23C39MR
Page 1 of 2 Alcyon HID 39W CMH MR16 Cylinder
7 13/16"
[199 mm]
7"
[178 mm]
6 5/16"
[160 mm]
8
3 5/16"
[84 mm]
1/4"
[6 mm]
3 7/8"
[98 mm]
1 15/16"
[50 mm]
7
3 1/16"
[ 78 mm]
Ordering Information
1 1/16"
[27 mm]
2
6 5/8"
[168 mm]
9
1 1/2"
[38 mm]
6
Catalog No. Finish Mounting Lamps
23C39MR AL Aluminum For use with Lytespan Radius, Basic and Advent 39W MR16 GX10 Base Ceramic Metal Halide
23C39MRBK Black Track. Not compatible with extension wands or
23C39MRWH White slope ceiling adapters. For monopoint applications
refer to spec sheet 6172.
1
3
4
5
Features
1. Track At tachment Fitting: Locking lever for mechanical/
electrical connection.
2. Brass Contact: Extends for connection to second circuit (Advent track only).
3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.
Position may be locked using an allen key.
4. Vertical P ivot: 0-90° vertical adjustment with aiming indicator. Position
may be locked using an allen key.
5. Fixture Housing: Die cast aluminum
6. Ballast Housing: Molded polycarbonate
7. On/Off Switch: Rocker switch to disconnect power to the ballast.
8. Accessory Cartridge: Hinged and captive; retaining ring included. Inside
painted black to reduce glare.
9. Safety Locking Lever: Locks ballast housing to track.
Finish
All Painted finishes are baked enamel.
Accessories
Accessory Holder: Integral
Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.
Lens: AF25, ADF25 Series
Louver: AL25HC
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0310
Electrical
Electronic Ballast
Input Voltage: 120V, 50/60Hz
Power Factor: .9
Input Power: 45W
Max. Input Current: 0.40A
ANSI Code: C(M)130
Do not use on dimming circuit.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lytespan
®
Track Lighting System 23C39MR
Page 2 of 2 Alcyon HID 39W CMH MR16 Cylinder
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
16,000 10,000
GE CMH39MR16/930SP
12°
5,500 10,000
GE CMH39MR16/930FL
25°
3,000 10,000
GE CMH39MR16/930W
40°
Rated
CBCP
D FC L W D C FC L W D C FC L W D C FC L W
8' 10 00 0.8 0.8 '
10' 4 44 1.3' 1.3'
12' 250 1.7' 1.7'
14' 160 2.1' 2.1'
6' 3 44 1.8' 1.8'
8' 153 2.7' 2.7'
10' 8 6 3.5' 3.5'
12' 55 4.4' 4.4'
6' 83 4.4' 4.4'
8' 47 5.8' 5.8'
10' 3 0 7.3' 7.3'
12' 21 8.7' 8.7'
8' 1.7' 1155 0.8' 0.7'
10' 2.9' 416 1.4' 1.2'
12' 4.0' 212 2.0' 1.7'
14' 5.2' 128' 2.5' 2.2 '
6' 1.7' 397 1.8' 1.5'
8' 2.9 ' 143 3.0' 2.6'
10' 4.0' 73 4.2' 3.6'
12' 5.2' 44 5.4' 4.6'
6' 3. 5' 5 4 6.1' 5.0'
8' 4.6' 3 0 8.1' 6.7'
10' 5.8' 19 10.2' 8.4'
12' 6.9' 14 12.2' 10.1'
3' 5.2' 222 2.6' 1.3'
4' 6.9' 125 3.5' 1.7'
5' 8.7 ' 8 0 4.3' 2.1'
6' 10.4' 5 6 5.2' 2.5'
3' 5.2' 76 6.2' 2.7'
4' 6.9' 43 8.3' 3.5'
5' 8.7 ' 28 10.4' 4.4'
6' 10.4' 19 12.5 5.3'
2' 3. 5' 9 4 9.7' 2.9'
3' 5.2' 42 14.5' 4.4'
4' 6.9' 23 19.3' 5.8'
5' 8.7 ' 5 24.2' 7.3'
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reflector "warms" the beam to 2700K.
3' 1.0' 56 57 0.4' 0.3'
4' 2.0 ' 1414 0.9' 0. 6'
5' 3.0' 629 1.3' 0.9'
6' 4.0' 354 1.7' 1.2'
3' 1.0' 1945 0.9' 0.6'
4' 2.0' 486 1.9' 1.3'
5' 3.0' 216 2.8' 1.9'
6' 4.0' 122 3.7' 2.5'
2' 2.0 ' 265 3.4' 2.1'
3' 3.0' 118 5.0' 3.1'
4' 4.0' 6 6 6.7' 4.1'
5' 5.0' 42 8.4' 5.1'
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0310
