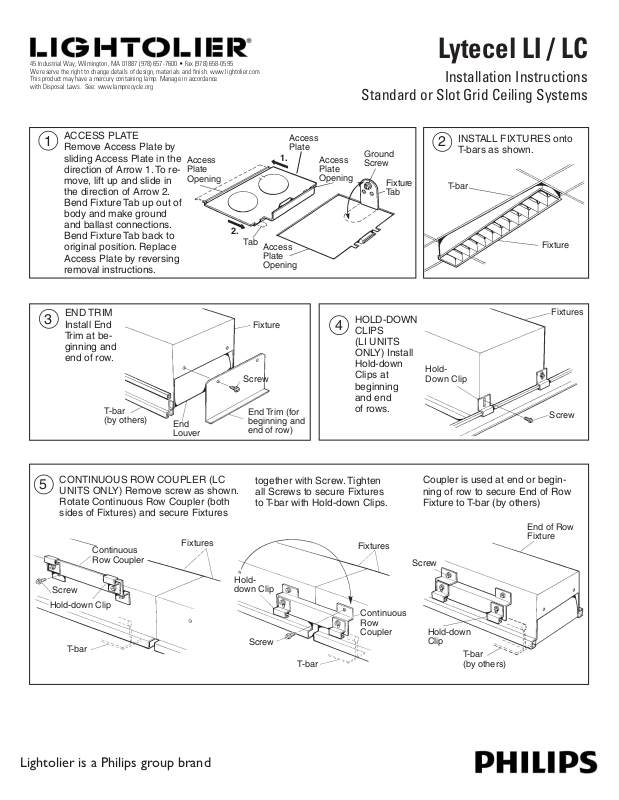

Lytecel LI / LC
Installation Instructions
Standard or Slot Grid Ceiling Systems
ACCESS PLATE
1
Remove Access Plate by
sliding Access Plate in the
direction of Arrow 1. To remove, lift up and slide in
the direction of Arrow 2.
Bend Fixture Tab up out of
body and make ground
and ballast connections.
Bend Fixture Tab back to
original position. Replace
Access Plate by reversing
removal instructions.
END TRIM
3
Install End
Trim at beginning and
end of row.
T-bar
(by others)
Access
Plate
Opening
End
Louver
2.
Tab
Access
Plate
Opening
Fixture
Screw
End Trim (for
beginning and
end of row)
Access
Plate
1.
Access
Plate
Opening
4
Ground
Screw
Fixture
Tab
HOLD-DOWN
CLIPS
(LI UNITS
ONLY) Install
Hold-down
Clips at
beginning
and end
of rows.
INSTALL FIXTURES onto
2
T-bars as shown.
T-bar
HoldDown Clip
Fixture
Fixtures
Screw
CONTINUOUS ROW COUPLER (LC
5
UNITS ONLY) Remove screw as shown.
Rotate Continuous Row Coupler (both
sides of Fixtures) and secure Fixtures
Continuous
Row Coupler
Screw
Hold-down Clip
T-bar
Fixtures
Lightolier is a Philips group brand
together with Screw. Tighten
all Screws to secure Fixtures
to T-bar with Hold-down Clips.
Holddown Clip
Screw
T-bar
Fixtures
Continuous
Row
Coupler
Coupler is used at end or beginning of row to secure End of Row
Fixture to T-bar (by others)
End of Row
Fixture
Screw
Hold-down
Clip
T-bar
(by others)
45 Industrial Way, Wilmington, MA 01887 (978) 657-7600 • Fax (978) 658-0595
We reserve the right to change details of design, materials and finish. www.lightolier.com
This product may have a mercury containing lamp. Manage in accordance
with Disposal Laws. See: www.lamprecycle.org
Lytecel LI / LC
Installation Instructions
Standard or Slot Grid Ceiling Systems
FOR 1 LAMP
6
To open Louver,
press Spring Latch
in direction of Arrow.
To close, insert louver into Fixture
until Spring
Latches automatically engage.
LENS INSTALLATION (Individual, LI, unit only)
8
Follow disgrams 8a - 8c.
To remove lens reverse installation.
8a
Fixtures
8b
Spring
Latch
FOR 2 LAMP
7
To open Louver, place
finger or small tool
thru Access Hole in
Louver and press
Spring Latch in
direction of arrow.
To close, insert
louver into Fixture
until Spring Latches
automatically
engage.
8c
Fixtures
Spring
Latch
Lens with prismatic side
down (Away from lamp)
Lightolier is a Philips group brand
59-31123-001 Rev.A Printed in U.S.A.
