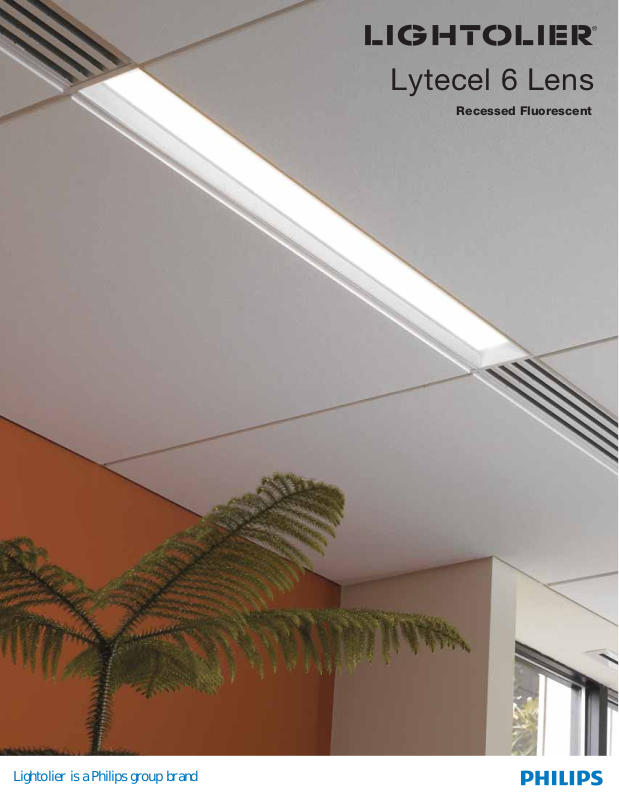

Lightolier Lytecel 6 Lens User Manual

Lytecel 6 Lens

Recessed Fluorescent

Lightolier is a Philips group brand

Lytecel 6 Lens

Air Handling

Fits most standard 6" X 48" lay-in ceiling systems plus

Static

’s new

20 Gauge Steel Body

NYC Construction

Approved

Black housing exterior

for cooler ballast

operating temperature

Ballast Compartment

®

MIRO

Aluminum

Reflector

Choice of 1 or 2,

T8 or T5 Lamps

6" Deep

Body

Air return lens
regressed 1 9/16"

Static lens
regressed 1 1/8"

Air Flow

4 1/4" Wide Opening

Ordering Guide. Example: LIA6GPNXR132UNVHI

6

LI

Lytecel 6
Indvidual

Series

Lightolier is a Philips group brand.
For Factory Technical Information: [phone] • Fax [phone]
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish. Folio E10-05
© 2008 a Philips Group Brochure LOL7097

Consult Specification sheets E10-10, E10-15 and E10-20 available on the internet at www.Lightolier.com

Body Style:
A= Air Return
S= Static

Fixture

Width

Ceiling Type:
G= 9/16" or

15/16" Grid

T= Slot Grid
D= 9/16"

Tegular Grid

Patent Pe nding

Lens Style:
PN = .08 White

Acyrlic
VA = .095 Virgin
Acyrlic
KA = .156 Virgin
Acyrlic

RUNVX

Reflector:
R= MIRO Aluminum

Flat White Extruded

Aluminum Trim

Extruded .08 White Opalescent Acrylic Lens.

Lamp

Type

1-T8 32W
1-T5 28W

1-T5HO 54W

Options:

Add appropriate
suffix to catalog

number, ie. (GLR)

Lamp

Quantity:

(By others)

1= 1 Lamp
2= 2 Lamp

Catalog
Number

LIA6GPNXR132UNVHI
LIA6GPNXR128UNVPG
LIA6GPNXR154UNVPG 63.9%

Lamp Type

Fixture Length:

28= T5
32= T8

54= T5HO

(Nominal 48")

Voltage:

UNV= 120-277

Ballast Type:
‹10THD
1 or 2 Lamp 32w Elec. T8 HI†
1 or 2 Lamp 28w or 54w Elec. T5 PG‡

† Instant Start
‡ Program Rapid Start

Emergency and Dimming available

Consult Lightolier representative

Fixture

Efficiency

62.2%

72.2%
