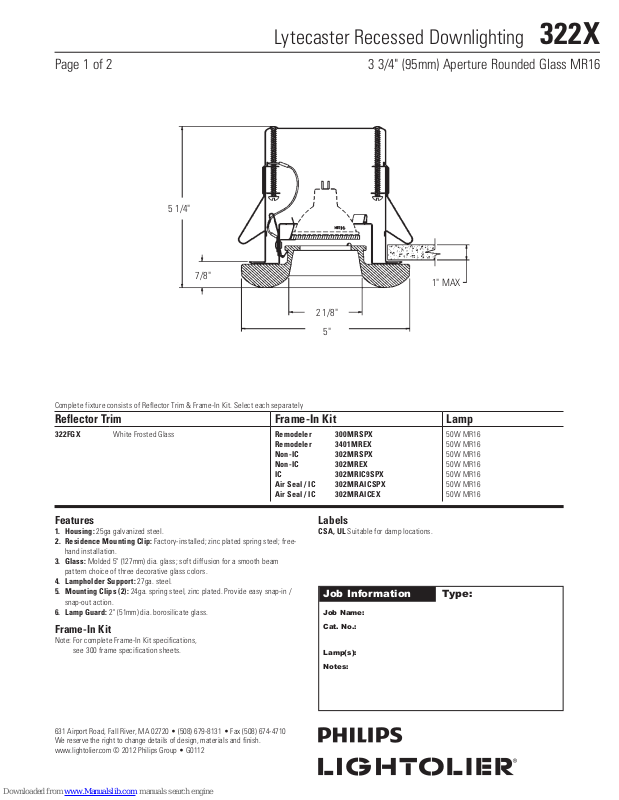

Lytecaster Recessed Downlighting 322X
Page 1 of 2 3 3/4" (95mm) Aperture Rounded Glass MR16
5 1/4"
7/8"
Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately
Reflector Trim
322FGX
White Frosted Glass
Frame-In Kit Lamp
Remodeler
Remodeler
Non-IC
Non-IC
IC
Air Seal / IC
Air Seal / IC
Features
1. Housing: 25ga galvanized steel.
2. Residence Mounting Clip: Factory-installed; zinc plated spring steel; free-
hand installation.
3. Glass: Molded 5" (127mm) dia. glass; soft diffusion for a smooth beam
pattern choice of three decorative glass colors.
4. Lampholder Support: 27ga. s te el.
5. Mounting Clips (2): 24ga. spring steel, zinc plated. Provide easy snap-in /
snap-out action.
6. Lamp Guard: 2" (51mm) dia. borosilicate glass.
Frame-In Kit
Note: For complete Frame-In Kit specifications,
see 300 frame specification sheets.
1" MAX
2 1/8"
5"
300MRSPX
3401MREX
302MRSPX
302MREX
302MRIC9SPX
302MRAICSPX
302MRAICEX
50W MR16
50W MR16
50W MR16
50W MR16
50W MR16
50W MR16
50W MR16
Labels
CSA, UL Suitable for damp locations.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2012 Philips Group • G0112
