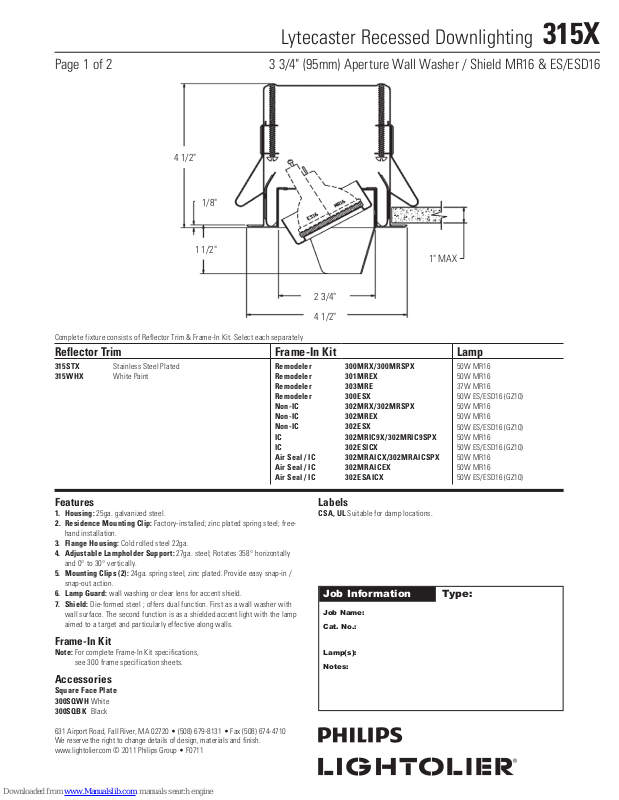

Lytecaster Recessed Downlighting 315X
Page 1 of 2 3 3/4" (95mm) Aperture Wall Washer / Shield MR16 & ES/ESD16
4 1/2"
1/8"
1 1/2"
Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately
Reflector Trim
315STX
315WHX
Stainless Steel Plated
White Paint
Frame-In Kit Lamp
Remodeler
Remodeler
Remodeler
Remodeler
Non-IC
Non-IC
Non-IC
IC
IC
Air Seal / IC
Air Seal / IC
Air Seal / IC
Features
1. Housing: 25ga. galvanized steel.
2. Residence Mounting Clip: Factory-installed; zinc plated spring steel; free-
hand installation.
3. Flange Housing: Cold rolled steel 22ga.
4. Adjustable Lampholder Support: 27ga. steel; Rotates 358° horizontally
and 0° to 30° vertically.
5. Mounting Clips (2): 24ga. spring steel, zinc plated. Provide easy snap-in /
snap-out action.
6. Lamp Guard: wall washing or clear lens for accent shield.
7. Shield: Die-formed steel ; offers dual function. First as a wall washer with
wall surface. The second function is as a shielded accent light with the lamp
aimed to a target and particularly effective along walls.
Frame-In Kit
Note: For complete Frame-In Kit specifications,
see 300 frame specification sheets.
Accessories
Square Face Plate
300SQWH White
300SQBK Black
1" MAX
2 3/4"
4 1/2"
300MRX/300MRSPX
301MREX
303MRE
300ESX
302MRX/302MRSPX
302MREX
302ESX
302MRIC9X/302MRIC9SPX
302ESICX
302MRAICX/302MRAICSPX
302MRAICEX
302ESAICX
Labels
CSA, UL Suitable for damp locations.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
50W MR16
50W MR16
37W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W MR16
50W ES/ESD16 (GZ10)
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • F0711
