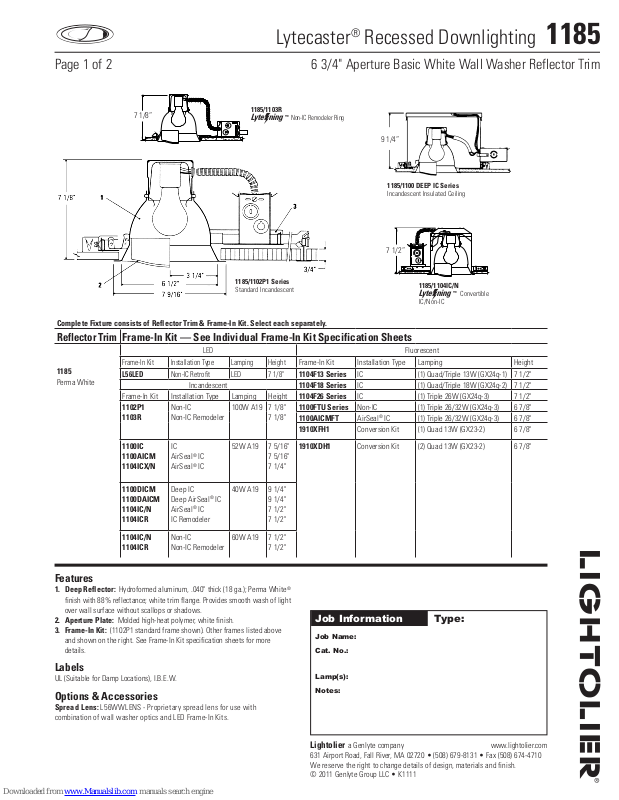

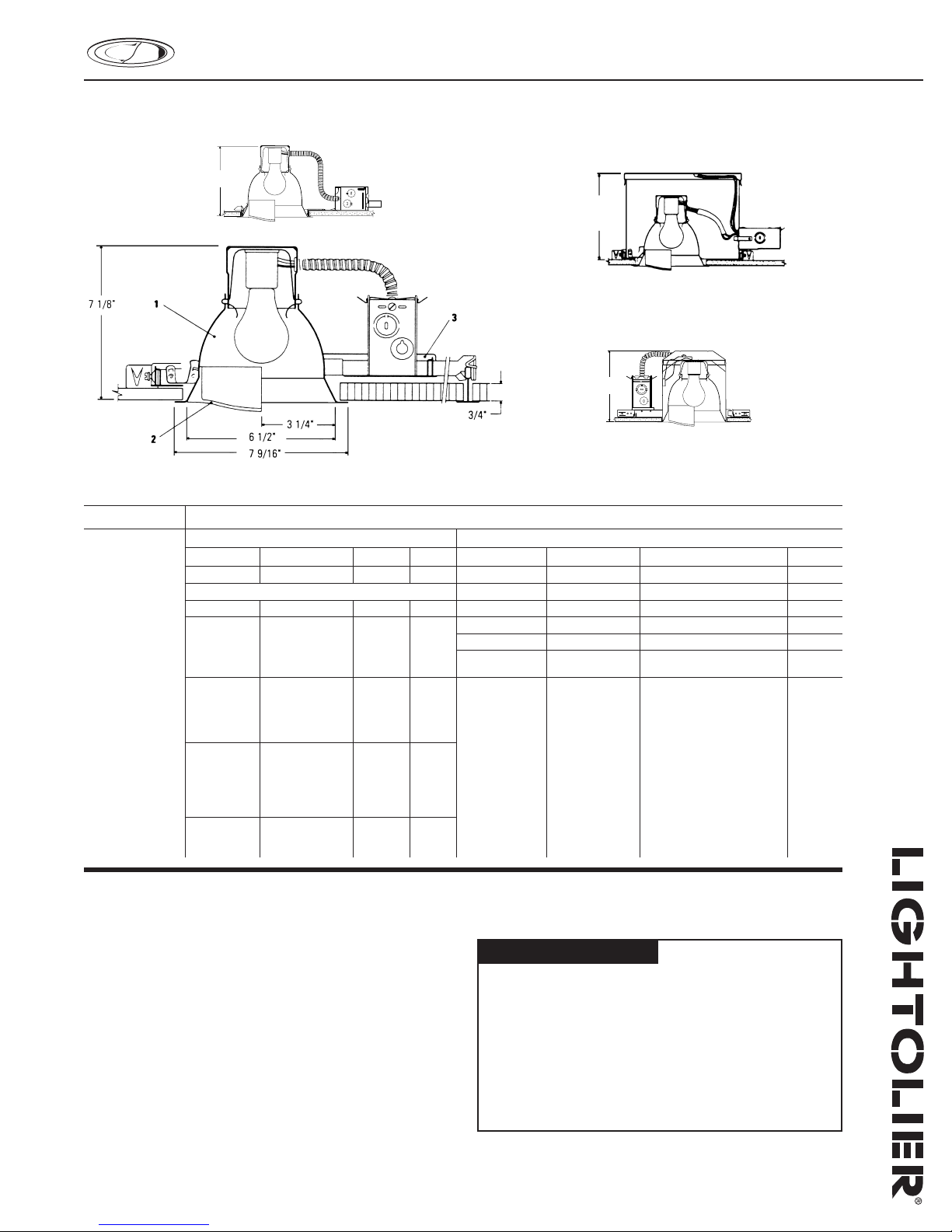

Lytecaster
®
Recessed Downlighting 1185
Page 1 of 2 6 3/4" Aperture Basic White Wall Washer Reflector Trim
7 1/8”
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim
1185
Perma White
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
LED
Frame-In Kit Installation Type Lamping Height
L56LED
Frame-In Kit Installation Type Lamping Height
1102P1
1103R
1100IC
1100AICM
1104ICX/N
Non-IC Retrofit LED 7 1/8"
Incandescent
Non-IC
Non-IC Remodeler
IC
AirSeal® IC
AirSeal® IC
1185/1103R
0
1185/1102P1 Series
Standard Incandescent
100W A19 7 1/8"
52W A19 7 5/16"
™
Non-IC Remodeler Ring
Frame-In Kit Installation Type Lamping Height
1104F13 Series
1104F18 Series
1104F26 Series
1100FTU Series
7 1/8"
1100AICMFT
1910XFH1
1910XDH1
7 5/16"
7 1/4"
9 1/4”
1185/1100 DEEP IC Series
Incandescent Insulated Ceiling
7 1/2”
1185/1104IC/N
0
IC/Non-IC
Fluorescent
IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"
IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"
IC (1) Triple 26W (GX24q-3) 7 1/2"
Non-IC (1) Triple 26/32W (GX24q-3) 6 7/8"
AirSeal® IC (1) Triple 26/32W (GX24q-3) 6 7/8"
Conversion Kit (1) Quad 13W (GX23-2) 6 7/8"
Conversion Kit (2) Quad 13W (GX23-2) 6 7/8"
™
Convertible
1100DICM
1100DAICM
1104IC/N
1104ICR
1104IC/N
1104ICR
Deep IC
Deep AirSeal® IC
AirSeal® IC
IC Remodeler
Non-IC
Non-IC Remodeler
Features
1. Deep Reflector: Hydroformed aluminum, .040" thick (18 ga.); Perma White®
finish with 88% reflectance; white trim flange. Provides smooth wash of light
over wall surface without scallops or shadows.
2. Aperture Plate: Molded high-heat polymer, white finish.
3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Options & Accessories
Spread Lens: L56W WLENS - Proprietar y spread lens for use with
combination of wall washer optics and LED Frame-In Kits.
40W A19 9 1/4"
9 1/4"
7 1/2"
7 1/2"
60W A19 7 1/2"
7 1/2"
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • K1111
Lytecaster
®
Recessed Downlighting 1185
Page 2 of 2 6 3/4" Aperture Basic White Wall Washer Reflector Trim
LIGHTING DATA
EXAMPLE: Multiple units with 100W A19lamps, located 2’
from wall and 2’ on center, illumination on the wall 3’ down
from the ceiling of 35 f.c. beneath and 35 f.c. between the
fixtures.
FOOTCANDLES ON WALL FROM MULTIPLE UNITS
100W A19
UNITS 2 FEET FROM WALL
2’ 3’
1 39 36 39 29 19 29
2 49 47 49 33 30 33
3 35 35 35 23 25 23
4 29 26 29 19 18 19
5 16 18 16 13 12 13
6 12 11 12 4 4 4
7 8 8 8 6 6 6
DISTANCE FROM CEILING, FT.
8 8 8 8 6 6 6
9 7 8 7 6 6 6
1 15 14 15 12 8 12
2 20 20 20 15 13 15
3 15 15 15 11 10 11
4 10 10 10 7 7 7
5 6 6 6 5 5 5
6 4 4 4 3 3 3
7 3 3 3 2 2 2
DISTANCE FROM CEILING, FT.
8 2 2 2 2 2 2
9 2 2 2 1 1 1
100W A19
UNITS 3 FEET FROM WALL
3’ 4’
1 14 12 14 10 10 10
2 22 20 22 16 14 16
3 23 23 23 18 16 18
4 19 19 19 16 14 16
5 16 15 16 13 12 13
6 12 11 12 10 8 10
7 9 10 9 8 6 8
DISTANCE FROM CEILING, FT.
8 8 8 8 6 6 6
9 8 8 8 5 6 5
Footcandle values are averaged and rounded off and are based on a minimum of five units.
For fixture-to-wall distances, other than those shown, use maximum of 1 of 1 spacing (distance between fixtures not more than distance to wall) for best result.
To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle values by the ratio of the lumens of the two lamps.
1 23 21 23 18 12 18
2 29 29 29 21 18 21
3 22 22 22 15 15 15
4 14 15 14 10 10 10
5 10 10 10 7 7 7
6 6 7 6 5 5 5
7 5 5 5 4 4 4
DISTANCE FROM CEILING, FT.
8 3 3 3 3 3 3
9 2 2 2 2 2 2
1 LT. 13W Quad Tube
UNITS 2 FEET FROM WALL
2’
2 LT. 13W Quad Tube
UNITS 2 FEET FROM WALL
2’
3’
3’
Job Information Type:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • K1111
