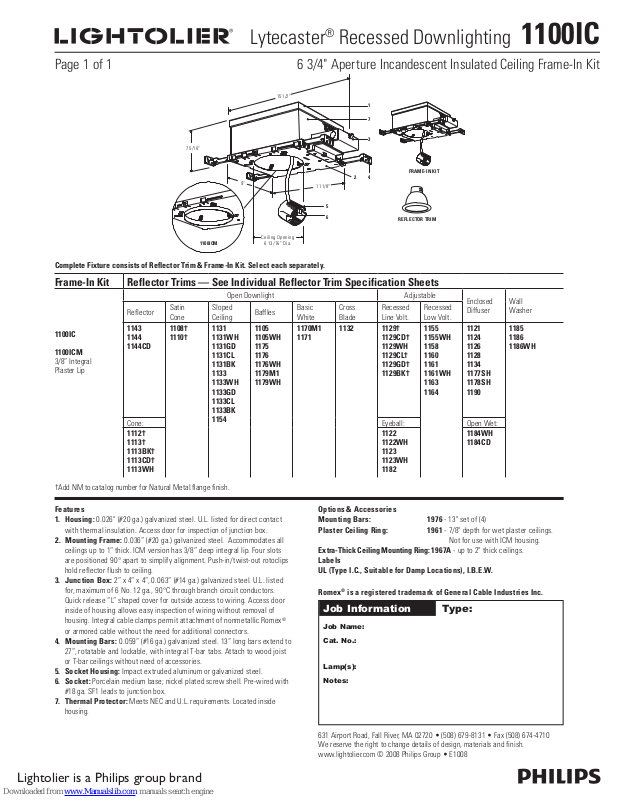

Lytecaster
®
Recessed Downlighting 1100IC
Page 1 of 1 6 3/4" Aperture Incandescent Insulated Ceiling Frame-In Kit
7 5/16"
1100ICM
9"
15 1/2"
Ceiling Opening
6 13/16" Dia.
11 1/8"
5
6
1
7
3
4
2
FRAME-IN KIT
REFLECTOR TRIM
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Open Downlight Adjustable
1100IC
1100ICM
3/8” Integral
Plaster Lip
Reflector
1143
1144
Satin
Cone
1108†
1110†
1144CD
Cone: Eyeball: Open Wet:
1112†
1113†
1113BK†
1113CD†
1113WH
Sloped
Ceiling
1131
1131WH
1131GD
1131CL
1131BK
1133
1133WH
1133GD
1133CL
1133BK
1154
Baffles
1105
1105WH
1175
1176
1176WH
1179M1
1179WH
Basic
White
1170M1
1171
Cross
Blade
Recessed
Line Volt.
1132 1129†
1129CD†
1129WH
1129CL†
1129GD†
1129BK†
1122
1122WH
1123
1123WH
1182
Recessed
Low Volt.
1155
1155WH
1158
1160
1161
1161WH
1163
1164
Enclosed
Diffuser
1121
1124
1126
1128
1134
1177SH
1178SH
1190
1184WH
1184CD
Wall
Washer
1185
1186
1186WH
†Add NM to catalog number for Natural Metal flange finish.
Features
1. Housing: 0.026" (#20 ga.) galvanized steel. U.L. listed for direct contact
with thermal insulation. Access door for inspection of junction box.
2. Mounting Frame: 0.036” (#20 ga.) galvanized steel. Accommodates all
ceilings up to 1” thick. ICM version has 3/8” deep integral lip. Four slots
are positioned 90° apart to simplify alignment. Push-in/twist-out rotoclips
hold reflector flush to ceiling.
3. Junction Box: 2” x 4” x 4”, 0.063” (#14 ga.) galvanized steel. U.L. listed
for, maximum of 6 No. 12 ga., 90°C through branch circuit conductors.
Quick release “L” shaped cover for outside access to wiring. Access door
inside of housing allows easy inspection of wiring without removal of
housing. Integral cable clamps permit attachment of nonmetallic Romex®
or armored cable without the need for additional connectors.
4. Mounting Bars: 0.059” (#16 ga.) galvanized steel. 13” long bars extend to
27”, rotatable and lockable, with integral T-bar tabs. Attach to wood joist
or T-bar ceilings without need of accessories.
5. Socket Housing: Impact extruded aluminum or galvanized steel.
6. Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with
#18 ga. SF1 leads to junction box.
7. Thermal Protector: Meets NEC and U.L. requirements. Located inside
housing.
Lightolier is a Philips group brand
Options & Accessories
Mounting Bars: 1976 - 13" set of (4)
Plaster Ceiling Ring: 1961 - 7/8" depth for wet plaster ceilings.
Not for use with ICM housing.
Extra-Thick Ceiling Mounting Ring: 196 7A - up to 2" thick ceilings.
Labels
UL (Type I.C., Suitable for Damp Locations), I.B.E.W.
Romex® is a registered trademark of General Cable Industries Inc.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • E1008
