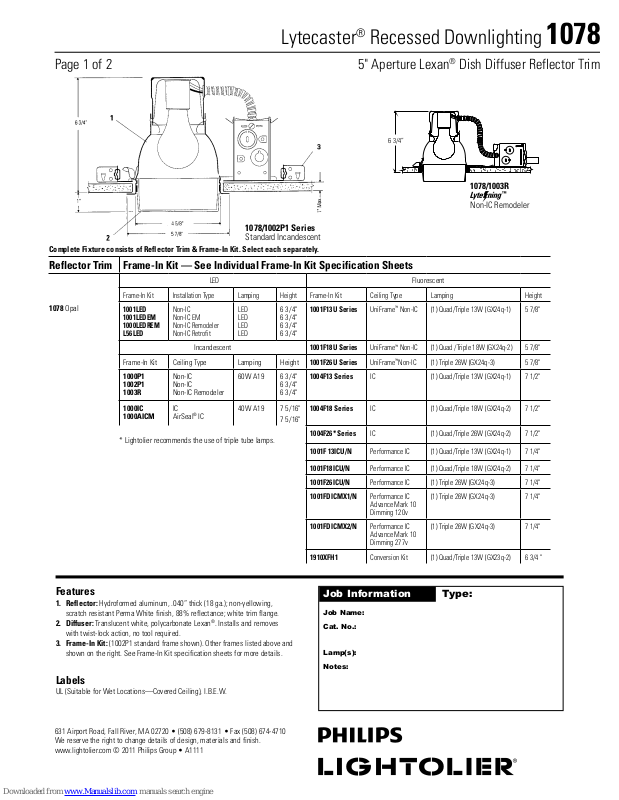

Page 1
Lytecaster
®
Recessed Downlighting 1078
Page 1 of 2 5" Aperture Lexan® Dish Diffuser Reflector Trim
6 3/4”
1078/1002P1 Series
Standard Incandescent
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
LED
1078 Opal
Frame-In Kit Installation Type Lamping Height
1001LED
1001LEDEM
1000LEDREM
L56LED
Frame-In Kit Ceiling Type Lamping Height
1000P1
1002P1
1003R
1000IC
1000AICM
* Lightolier recommends the use of triple tube lamps.
Non-IC
Non-IC EM
Non-IC Remodeler
Non-IC Retrofit
Incandescent
Non-IC
Non-IC
Non-IC Remodeler
IC
®
IC
AirSeal
LED
LED
LED
LED
60W A19 6 3/4"
40W A19 7 5/16"
Frame-In Kit Ceiling Type Lamping Height
1001F13U Series
6 3/4"
6 3/4"
6 3/4"
6 3/4"
1001F18U Series
1001F26U Series
1004F13 Series
6 3/4"
6 3/4"
1004F18 Series
7 5/16"
1004F26* Series
1001F 13ICU/N
1001F18ICU/N
1001F26ICU/N
1001FDICMX1/N
1001FDICMX2/N
1910XFH1
UniFrame™ Non-IC (1) Quad/Triple 13W (GX24q-1) 5 7/8"
UniFrame™ Non-IC (1) Quad /Triple 18W (GX24q-2) 5 7/8"
UniFrame™Non-IC (1) Triple 26W (GX24q-3) 5 7/8"
IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"
IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"
IC (1) Quad/Triple 26W (GX24q-2) 7 1/2"
Performance IC (1) Quad/Triple 13W (GX24q-1) 7 1/4"
Performance IC (1) Quad/Triple 18W (GX24q-2) 7 1/4"
Performance IC (1) Triple 26W (GX24q-3) 7 1/4"
Performance IC
Advance Mark 10
Dimming 120v
Performance IC
Advance Mark 10
Dimming 277v
Conversion Kit (1) Quad/Triple 13W (GX23q-2) 6 3/4 "
1078/1003R
0
Non-IC Remodeler
Fluorescent
(1) Triple 26W (GX24q-3) 7 1/4"
(1) Triple 26W (GX24q-3) 7 1/4"
™
Features
1. Reflector: Hydroformed aluminum, .040” thick (18 ga.); non-yellowing,
scratch resistant Perma White finish, 88% reflectance; white trim flange.
2. Diffuser: Translucent white, polycarbonate Lexan®. Installs and removes
with twist-lock action, no tool required.
3. Frame-In Kit: (1002P1 standard frame shown). Other frames listed above and
shown on the right. See Frame-In Kit specification sheets for more details.
Labels
UL (Suitable for Wet Locations—Covered Ceiling), I.B.E.W.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • A1111
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Page 2
Lytecaster
®
Recessed Downlighting 1078
Page 2 of 2 5" Aperture Lexan® Dish Diffuser Reflector Trim
To convert lighting data for a lower wattage incandescent lamp of the same
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
type, multiply the footcandle (or candlepower) values by the ratio of the lumens
We reserve the right to change details of design, materials and finish.
of the two lamps. The coefficients of utilization remain the same.
www.lightolier.com © 2011 Philips Group • A1111
