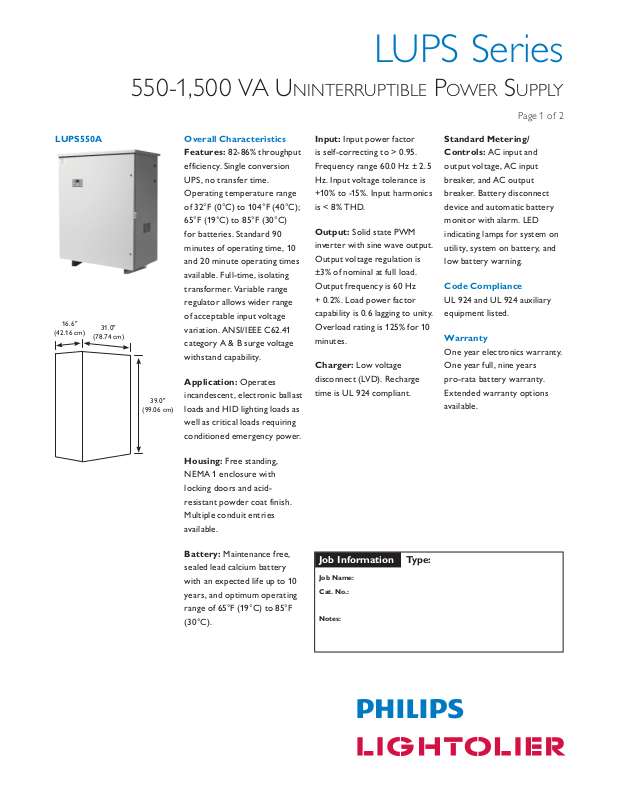

Lightolier LUPS User Manual

LUPS Series

550-1,500 VA UNINTERRUPTIBLE POWER SUPPLY

Page 1 of 2

LUPS550A

16.6"

(42.16 cm)

31.0"

(78.74 cm)

39.0"

(99.06 cm)

Overall Characteristics

Features: 82-86% throughput

efficiency. Single conversion

UPS, no transfer time.

Operating temperature range

of 32°F (0°C) to 104°F (40°C);

65°F (19°C) to 85°F (30°C)

for batteries. Standard 90

minutes of operating time, 10

and 20 minute operating times

available. Full-time, isolating

transformer. Variable range

regulator allows wider range

of acceptable input voltage

variation. ANSI/IEEE C62.41

category A & B surge voltage

withstand capability.

Application: Operates

incandescent, electronic ballast

loads and HID lighting loads as

well as critical loads requiring

conditioned emergency power.

Input: Input power factor

is self-correcting to > 0.95.

Frequency range 60.0 Hz ± 2.5

Hz. Input voltage tolerance is

+10% to -15%. Input harmonics

is < 8% THD.

Output: Solid state PWM

inverter with sine wave output.

Output voltage regulation is

±3% of nominal at full load.

Output frequency is 60 Hz

+ 0.2%. Load power factor

capability is 0.6 lagging to unity.

Overload rating is 125% for 10

minutes.

Charger: Low voltage

disconnect (LVD). Recharge

time is UL 924 compliant.

Standard Metering/

Controls: AC input and

output voltage, AC input

breaker, and AC output

breaker. Battery disconnect

device and automatic battery

monitor with alarm. LED

indicating lamps for system on

utility, system on battery, and

low battery warning.

Code Compliance

UL 924 and UL 924 auxiliary

equipment listed.

Warranty

One year electronics warranty.

One year full, nine years

pro-rata battery warranty.

Extended warranty options

available.

Housing: Free standing,

NEMA 1 enclosure with

locking doors and acid-

resistant powder coat finish.

Multiple conduit entries

available.

Battery: Maintenance free,

sealed lead calcium battery

with an expected life up to 10

years, and optimum operating

range of 65°F (19°C) to 85°F

(30°C).

Job Information Type:

Job Name:

Cat. No.:

Notes:

550-1,500 VA UNINTERRUPTIBLE POWER SUPPLY

O

Ordering Information

LUPS Series

Page 2 of 2

Series

LUPS = LUPS Uninterruptible Power
Supply for Emergency Lighting Applications,
90 Min. Backup

LUPSX = 10 Min. Backup
LUPSY = 20 Min. Backup

System Input/Output Ratings

Input (select one)

MODEL

LUPS550

LUPS1000

LUPS1500

Note

1) Maximum input current.

CAPACITY

550 VA

1,000 VA

1,500 VA

AC INPUT

VOLTAGES

120
277
120
277
120
277

System One-Line Diagram

Utility AC

Power In

VA Ra tin g

550 = 550 VA
1000 = 1,000 VA
1500 = 1,500 VA

INPUT
AMPS

6.5

2.8

11. 5

5.0

17.2

7.4

Solid State

Line Switch

S1

Voltage Configuration

A = 120 V Input /Output
B = 277 V Input/Out put

Output (select one)

AVAILABLE OUTPUT

1

VOLTAGES/M AX LOAD AMPS

120 V

4.6

8.3

12. 5

277V

2.0

3.6

5.4

Ferroresonant

Double

Primary

P1

P2

Double

Primary

BREAKERS
INCLUDED

Tra nsformer

T1

ptional Output

Circuit Breakers

OCB1 = 550 VA
OCB3 = 1,000, 1,500 VA

HEAT

REJECTION

(BTU/HR)

1
1
3
3
3
3

Output Power

to Load

410

545

615

Factory Installed Options

FSU = Start-Up Service
EXT = Extended Warrant y

Note

1) EXT option only available with FSU.

CABINET &

ELECTRONICS

SEALED LEAD

CALCIUM
BATTERY

10 Min Backup

20 Min Backup

90 Min B ackup

550 VA

223 lbs

(101.0 kg)

44 lbs

(19.9 kg)

54 lbs

(24.5 k g)

121 lbs

(55.0 kg)

1000 VA

223 lbs

(101.0 kg)

59 lbs

(26.8 kg)

88 lbs

(39.9 kg)

203 lbs

(92.0 k g)

1

1500 VA

262 lbs

(119.0 kg)

88 lbs

(39.9 kg)

108 lbs

(49.0 kg)

288 lbs

(131.0 k g)

AC

DC

Philips Lightolier
e: [e-mail]
t: [phone]
w: www.lightolier.com

LUPS Series September 2, 2011

Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2011. All rights reserved.
