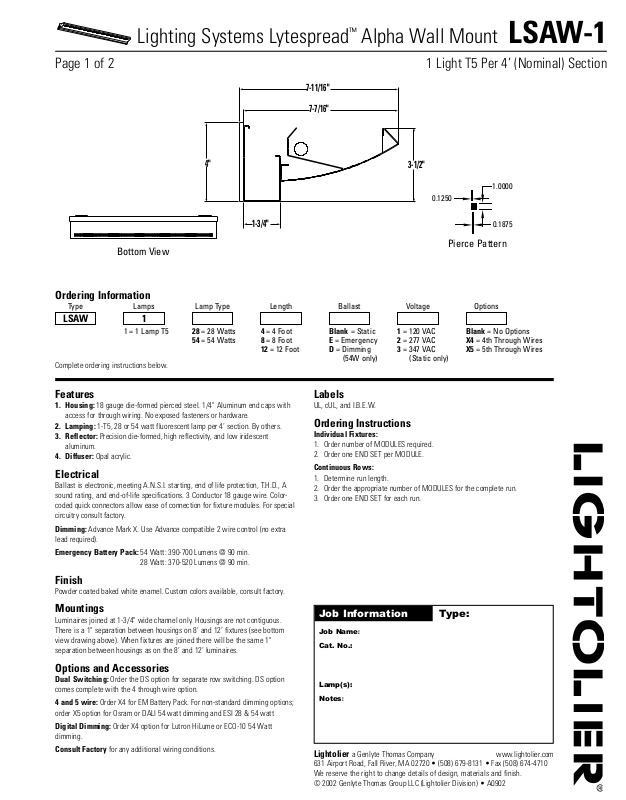

Lightolier LSAW-1 User Manual
Lighting Systems Lytespread
™
Alpha Wall Mount LSAW-1
Page 1 of 2 1 Light T5 Per 4’ (Nominal) Section
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Features
1. Housing: 18 gauge die-formed pierced steel. 1/4" Aluminum end caps with
access for through wiring. No exposed fasteners or hardware.
2. Lamping: 1-T5, 28 or 54 watt fluorescent lamp per 4’ section. By others.
3. Reflector: Precision die-formed, high reflectivity, and low iridescent
aluminum.
4. Diffuser: Opal acrylic.
Electrical
Ballast is electronic, meeting A.N.S.I. starting, end of life protection, T.H.D., A
sound rating, and end-of-life specifications. 3 Conductor 18 gauge wire. Colorcoded quick connectors allow ease of connection for fixture modules. For special
circuitry consult factory.
Dimming: Advance Mark X. Use Advance compatible 2 wire control (no extra
lead required).
Emergency Battery Pack: 54 Watt: 390-700 Lumens @ 90 min.
28 Watt: 370-520 Lumens @ 90 min.
Finish
Powder coated baked white enamel. Custom colors available, consult factory.
Mountings
Luminaires joined at 1-3/4" wide channel only. Housings are not contiguous.
There is a 1" separation between housings on 8’ and 12’ fixtures (see bottom
view drawing above). When fixtures are joined there will be the same 1"
separation between housings as on the 8’ and 12’ luminaires.
Options and Accessories
Dual Switching: Order the DS option for separate row switching. DS option
comes complete with the 4 through wire option.
4 and 5 wire: Order X4 for EM Battery Pack. For non-standard dimming options;
order X5 option for Osram or DALI 54 watt dimming and ESI 28 & 54 watt
Digital Dimming: Order X4 option for Lutron HiLume or ECO-10 54 Watt
dimming.
Consult Factory for any additional wiring conditions.
Labels
UL, cUL, and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order number of MODULES required.
2. Order one END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES for the complete run.
3. Order one END SET for each run.
Ordering Information
Type Lamps Lamp Type Length Ballast Voltage Options
1 = 1 Lamp T5 28 = 28 Watts 4 = 4 Foot Blank = Static 1 = 120 VAC Blank = No Options
54 = 54 Watts 8 = 8 Foot E = Emergency 2 = 277 VAC X4 = 4th Through Wires
12 = 12 Foot D = Dimming 3 = 347 VAC X5 = 5th Through Wires
(54W only) (Static only)
LSAW 1
Complete ordering instructions below.
7-11/16"
7-7/16"
4"
1-3/4"
3-1/2"
1.0000
0.1250
0.1875
Bottom View
Pierce Pattern
Lighting Systems Lytespread
™
Alpha Wall Mount LSAW-1
Page 2 of 2 1 Light T5 Per 4’ (Nominal) Section
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Job Information Type:
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10
080 80 80 69 69 69 48 48 48
169 66 63 60 57 55 42 40 39
260 56 52 52 48 45 36 34 32
353 47 43 46 41 37 32 29 27
447 41 36 40 35 31 28 25 23
541 35 30 36 30 27 25 22 19
637 30 26 32 27 23 22 19 16
733 27 22 28 23 20 20 17 14
829 24 19 26 21 17 18 15 12
927 21 17 23 18 15 16 13 11
10 24 19 15 21 16 13 15 12 10
210021002100
157515751575
105010501050
525525525
0
1010
202020
303030
40
50
606060
707070
808080
909090
100100100
110110110
120120120
130
140
150150150
160160160
170170170
180180180
210021002100
157515751575
105010501050
525525525
000
101010
202020
303030
404040
505050
606060
707070
808080
909090
100100100
110110110
120120120
130130130
140140140
150150150
160160160
170170170
180180180
Performance - 54W T5
Fixture Lengths & Mounting Locations
Candlepower Curve
Mounting Accessories
Candlepower Summary
ZONE CANDLEPOWER
DEG. 0 22 45 67 90
180 673 673 673 673 673
175 760 753 73 707 674
165 929 921 861 764 655
155 1066 993 890 793 612
145 1442 1353 1021 785 550
135 1678 1553 1238 709 467
125 2060 1872 1342 768 369
115 1865 1869 1540 758 256
105 976 1009 1002 766 141
95 411 430 350 250 41
90 24 22 7 2 0
85 31 27 15 5 0
75 41 38 25 14 6
65 48 45 34 25 17
55 51 49 41 33 26
45 51 50 45 40 32
35 51 51 48 45 38
25 52 52 51 49 43
15 52 53 52 48 44
54747474544
04444444444
Report No: ITL52310
Cat No: LSAW154
Lamps: 1-F54T5
Lumens: 5000
Efficiency: 82.4%
ZONAL LUMEN SUMMARY
ZONE LUMENS % BARELAMP % LUMINAIRE
0 - 90 153 3.1 3.7
90 - 180 3965 79.3 96.3
0 - 180 4118 82.4 100.0
48-1/2" (OAL)
40 "
88 "
96-1/2" (OAL)
68 "
144-1/2" (OAL)
68 "
192-1/2" (OAL)
8"
88 "
88"
68 "
68 "
68 "
68 "
240-1/2" (OAL)
288-1/2" (OAL)
8"
8"
68"
88"
68"
4'
8'
12'
16'
20'
24'
Pair of End Caps:
LSAWE
3.5"
45˚
END
4' RUN
1
8' RUN
12' RUN
16' RUN
20' RUN
24' RUN
1
1
1
1
1
1
1
1
1
2
1
4' 8'
12'
2
