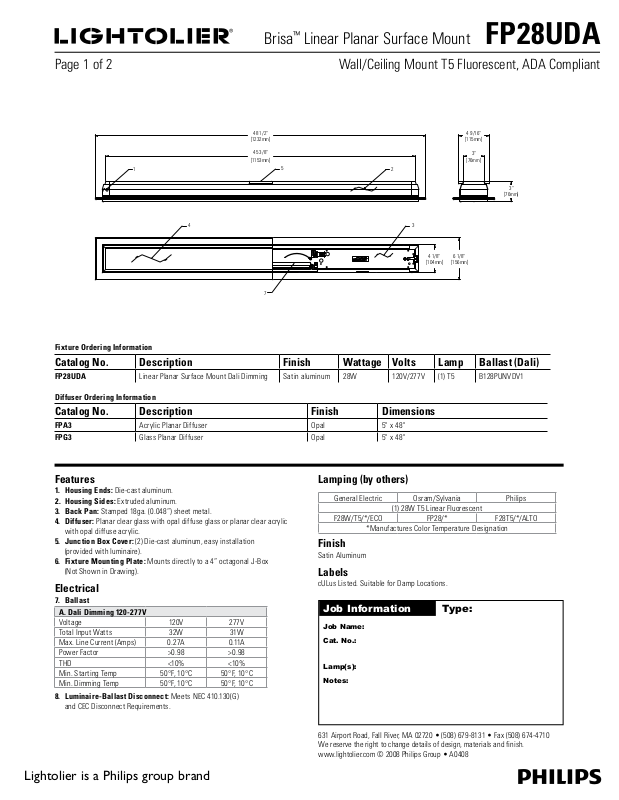

Lightolier FP28UDA User Manual

™

1

5

2

4

3

45 3/8"

[1153mm]

3"

[76mm]

48 1/2"

[1232mm]

4 9/16"

[115mm]

6 1/8"

[156mm]

4 1/8"

[104mm]

3"

[76mm]

7

Brisa

Linear Planar Surface Mount  FP28UDA

Page 1 of 2 Wall/Ceiling Mount T5 Fluorescent, ADA Compliant

Fixture Ordering Information

Catalog No. Description Finish Wattage Volts Lamp Ballast (Dali)

FP28UDA

Diffuser Ordering Information

Linear Planar Surface Mount Dali Dimming Satin aluminum 28W 120V/277V (1) T5 B128PUNVDV1

Catalog No. Description Finish Dimensions

FPA3
FPG3

Features

1.  Housing Ends: Die-cast aluminum.

2.  Housing Sides: Extruded aluminum.

3.  Back Pan: Stamped 18ga. (0.048”) sheet metal.

4.  Diffuser: Planar clear glass with opal dif fuse glass or planar clear acrylic

with opal diffuse acrylic.

5.  Junction Box Cover: (2) Die-cast aluminum, easy installation

(provided with luminaire).

6.  Fixture Mounting Plate: Mounts directly to a 4” octagonal J-Box

(Not Shown in Drawing).

Electrical 

7.  Ballast

A. Dali Dimming 120-277V

Voltage 120V 277V
Total Input Watts 32W 31W
Max. Line Current (Amps) 0.27A 0.11A
Power Factor >0.98 >0.98
THD <10% <10%
Min. Starting Temp 50°F, 10°C 50°F, 10°C
Min. Dimming Temp 50°F, 10°C 50°F, 10°C

8.  Luminaire-Ballast Disconnect: Meets NEC 410.130(G)

and CEC Disconnect Requirements.

Acrylic Planar Diffuser Opal 5" x 48"
Glass Planar Diffuser Opal 5" x 48"

Lamping (by others)

General Electric Osram/Sylvania Philips

F28W/T5/*/ECO FP28/* F28T5/*/ALTO

*Manufactures Color Temperature Designation

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Damp Locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0408

(1) 28W T5 Linear Fluorescent

Lightolier is a Philips group brand

™

100

200

300

400

0°

30°

60°

90°

Brisa

Linear Planar Surface Mount  FP28UDA

Page 2 of 2 Wall/Ceiling Mount T5 Fluorescent, ADA Compliant

FP28U / FPA3

DECOR ATIVE LUMINAI RE CAT. # FP28U / FPA3 28W S YLVANIA T-5 LAMP S.
LUMEN RATI NG = 2610 LMS. BALL AST/ ADVANCE ICN -2S28

Cand lepower Su mmary

Angle Along 22.5. 4 5 67.5 Acros s.

0 351 351 351 351 351
5 351 350 349 349 347 33
15 34 0 338 33 8 340 33 8 96
25 316 317 3 20 323 3 21 148
35 28 4 286 2 91 296 29 5 182
45 242 247 25 6 264 2 63 197
55 193 201 213 220 221 188
65 137 147 16 0 167 16 9 155
75 76 86 98 104 105 101
85 19 29 41 47 49 44
90 6 16 27 32 33
95 7 17 27 32 3 3 27
105 10 18 31 40 43 30
115 10 17 30 41 45 29
125 10 18 27 37 41 24
135 9 14 21 3 0 33 17
145 8 11 18 21 22 10
155 7 8 12 16 18 6
165 6 7 8 9 11 2
175 8 8 7 6 5 1
180 7 7 7 7 7

Outpu t

Lumens

Ceiling 80% 70% 5 0% 30% 10%
Wall 70 50 30 10 70 50 30 10 5 0 30 10 50 30 10 50 30 10 0

RCR Zonal C avity Met hod - Effec tive Floor R eflectan ce = 20%

0 .57 .57 .57 .5 7 .56 .56 .56 .56 .52 52 .5 2 .48 .4 8 .48 .4 5 .45 .45 .44
1 .52 .50 .48 .4 6 .50 .48 .46 .45 .45 .44 .42 .42 . 41 .4 0 .40 .39 . 38 .3 6
2 .48 .44 .40 .3 7 .46 .42 .39 .36 .39 .37 . 35 .37 . 35 .33 .35 .33 .32 .30
3 .43 .38 .34 . 31 .42 . 37 .3 3 .30 .3 5 .32 .2 9 .33 .3 0 .28 . 31 .29 . 27 .26
4 .40 .34 .29 .2 6 .38 . 33 .2 9 .26 .31 .27 .25 .29 .26 .24 . 27 .25 .23 .22
5 .36 .30 .25 .2 2 .35 . 29 .25 .22 .27 .24 .21 . 26 .23 . 20 .24 .22 .19 .18
6 .33 .27 .22 .19 .32 .2 6 .22 .19 .24 . 21 .18 . 23 .20 .17 . 22 .19 .17 .16
7 .30 .24 .19 .16 .29 .2 3 .19 .16 . 22 .18 .16 . 21 .17 .15 . 20 .17 .15 .14
8 .28 .21 .17 .14 .27 . 21 .17 .14 . 20 .16 .13 .19 .15 .13 .18 .15 .13 .12

Room C avity Rat io

9 .26 .19 .15 .12 .25 .19 .15 .12 .18 .14 .12 .17 .13 .11 .16 .13 .11 .10
10 .24 .17 .13 .11 .23 .17 .13 .11 .16 .13 .10 .15 .12 .10 .14 .12 .10 . 09

Deter mined In Acc ordance Wi th Current I ES Published Pr ocedures

Zona l Lumens an d Percent ages

Zone Lumen s % Lamp %Lumina ire
0-3 0 276 10.60 21.47
0-4 0 459 17.59 35 .61
0-6 0 844 32.34 6 5.47

0-9 0 1144 43.8 4 8 8.75

40- 90 685 26.25 53.14
60- 90 300 11.50 2 3.28

90-180 145

0-180 1289

** Effic iency = 49.4% **

TESTED A CCORDING TO IE S PROCEDUR ES. TEST DISTANC E EXCEEDS FIVE
TIMES T HE GREATEST LUM INOUS OPENI NG OF LUMINAI RE.

Coef ficient s of Utiliz ation

Luminai re Input Wat ts = 32.0

5.56 11.25

49.40 100 .00

Cert ified Test Repo rt no.364 8FR
Compu ted by LSI Pr ogram **TEST- LITE**
SC = 1.3

Prep ared For:
Light olier
Fall River, MA
