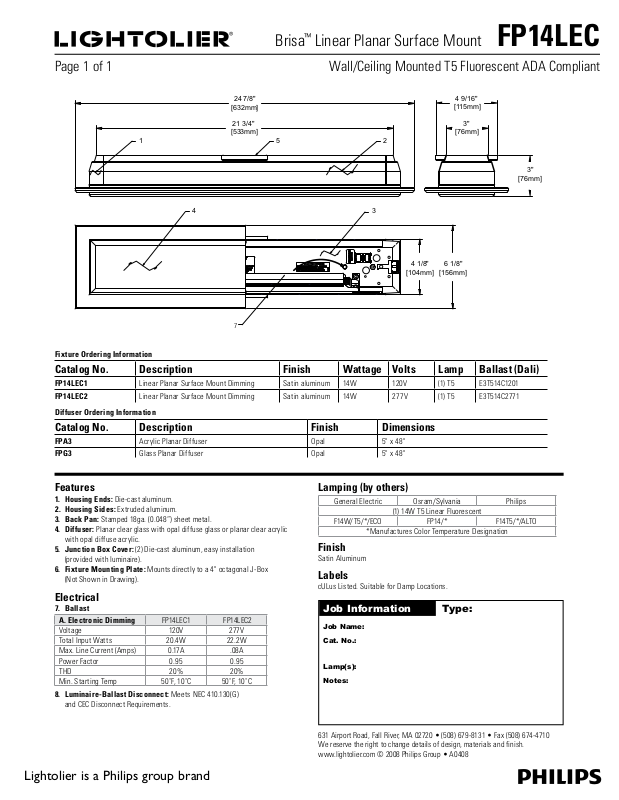

Lightolier FP14LEC User Manual

™

5

2

4 3

1

24 7/8"

[632mm]

21 3/4"

[533mm]

3"

[76mm]

4 9/16"

[115mm]

4 1/8"

[104mm]

6 1/8"

[156mm]

3"

[76mm]

7

Brisa

Linear Planar Surface Mount FP14LEC

Page 1 of 1 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

Fixture Ordering Information

Catalog No. Description Finish Wattage Volts Lamp Ballast (Dali)

FP14LEC1

FP14LEC2

Diffuser Ordering Information

Linear Planar Surface Mount Dimming Satin aluminum 14W 120V (1) T5 E3T514C1201

Linear Planar Surface Mount Dimming Satin aluminum 14W 277V (1) T5 E3T514C2771

Catalog No. Description Finish Dimensions

FPA3
FPG3

Features

1. Housing Ends: Die-cast aluminum.

2. Housing Sides: Extruded aluminum.

3. Back Pan: Stamped 18ga. (0.048”) sheet metal.

4. Diffuser: Planar clear glass with opal dif fuse glass or planar clear acrylic

with opal diffuse acrylic.

5. Junction Box Cover: (2) Die-cast aluminum, easy installation

(provided with luminaire).

6. Fixture Mounting Plate: Mounts directly to a 4" octagonal J-Box

(Not Shown in Drawing).

Electrical

7. Ballast

A. Electronic Dimming

Voltage 120V 277V
Total Input Watts 20.4W 22.2W
Max. Line Current (Amps) 0.17A .08A
Power Factor 0.95 0.95
THD 20% 20%
Min. Starting Temp 50˚F, 10˚C 50˚F, 10˚C

8. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)

and CEC Disconnect Requirements.

Acrylic Planar Diffuser Opal 5" x 48"
Glass Planar Diffuser Opal 5" x 48"

Lamping (by others)

General Electric Osram/Sylvania Philips

(1) 14W T5 Linear Fluorescent

F14W/T5/*/ECO FP14/* F14T5/*/ALTO

*Manufactures Color Temperature Designation

FP14LEC1 FP14LEC2

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Damp Locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0408

Lightolier is a Philips group brand

™

50

100

150

200

0°

30°

60°

90°

Brisa

Linear Planar Surface Mount FP14LEC

Page 2 of 1 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

FP14U-FPA1

DECOR ATIVE LUMINAI RE CAT. # FP14U-FPA1C
14W PHILIP S T-5 LAMPS. LU MEN RATING = 1200 LM S.
BALL AST/ ADVANCE ICN-2 S28

Angle Along 22.5. 45 67.5 Across.

0 179 179 179 179 179
5 179 179 179 179 179 9
15 173 173 174 175 176 25
25 161 16 3 16 5 167 169 38
35 145 147 150 154 156 47
45 124 127 132 139 143 51
55 100 10 5 114 121 123 51
65 72 78 88 9 3 98 4 3
75 42 48 56 6 2 66 29
85 12 17 26 31 34 14
90 5 9 16 19 21
95 6 9 13 15 15 7
105 7 10 17 20 2 2 8
115 8 9 15 21 24 7
125 7 10 12 17 19 6
135 7 8 12 16 19 5
145 5 6 10 12 15 3
155 4 5 7 9 11 2
165 3 3 4 5 7 1
175 4 3 3 3 3 0
180 3 3 3 3 3

Cand lepower Su mmary

Outpu t

Lumens

Ceiling 80% 70% 50% 30% 10%
Wall 70 50 30 10 70 50 30 10 5 0 30 10 5 0 30 10 5 0 30 10 0

RCR Zonal C avity Met hod - Effec tive Floor R eflectan ce = 20%

0 .65 .65 .65 .65 .63 . 63 .6 3 .63 . 59 .59 . 59 .55 .55 .55 .51 .51 .51 .50
1 .59 .57 .54 . 52 .57 .5 5 .53 .50 . 51 .4 9 .48 . 48 .47 . 45 .45 .44 .43 .41
2 .5 4 .49 .4 5 .42 .52 .48 .44 .41 .45 .42 .39 .42 .4 0 .37 . 39 .37 .3 6 .34
3 .49 .43 .39 . 35 .47 .42 .38 .34 .3 9 .36 .3 3 .37 . 34 .32 .35 .32 .30 .2 9
4 .45 .38 .33 . 30 .43 . 37 .3 3 .29 . 35 .31 . 28 .33 . 30 .27 .31 .28 . 26 .24
5 .41 .34 .28 .25 .39 . 33 .2 8 .24 . 31 .27 . 24 .29 .25 .23 .27 .24 . 22 .20
6 .37 .30 .25 .21 .36 . 29 . 24 .2 1 .27 . 23 .20 .26 . 22 .20 .24 .21 .19 .18
7 .34 .27 .22 .19 .33 . 26 .21 .18 . 25 .20 .18 .23 . 20 .17 .22 .19 .16 .15

Room C avity Rat io

8 .32 .24 .19 .16 .30 .23 .19 .16 .22 .18 .15 .21 .17 .15 . 20 .17 .14 .13
9 .29 .22 .17 .14 .28 . 21 .17 .13 .20 .16 .13 .19 .15 .13 .18 .15 .12 .11
10 .27 .20 .15 .12 .26 .19 .15 .12 .18 .14 .11 .17 .14 .11 .16 .13 .11 .10

Deter mined In Acc ordance Wi th Current I ES Published Pr ocedures

Zona l Lumens an d Percent ages

Zone Lumen s % La mp %Luminaire

141 11.83 21.14

0-3 0

2 35 19.61 3 5.05

0-4 0

4 35 3 6.28 64.85

0-6 0

5 95 49.6 0 88.66

0-9 0

3 59 2 9.99 5 3.61

40- 90

159 13.32 23.81

60- 90

76 6.35 11.34

90-180

671 55.94 100.0 0

0-180

** Effic iency = 55.9%**

TESTED A CCORDING TO IE S PROCEDUR ES. TEST DISTANC E EXCEEDS FIVE
TIMES T HE GREATEST LUM INOUS OPENI NG OF LUMINAI RE.

Coef ficient s of Utiliz ation

Luminai re Input Wat ts = 32.0

Cert ified Test Repo rt no. 3622F R
Compu ted by LSI Pr ogram **TEST- LITE**
SC= 1.3

Prep ared For:
Light olier
Fall River, MA
